hot sell new product ZhongYe printer
- 100 Set / Sets per Month
- Dalian
- T/T Credit Card
- Flatbed UV Printer 9060 6090 Flatbed Printer with Ricoh Heads
- Diagraph TJ500/TJ1000 THERMAL INKJET PRINTERS
- Yaomatec Maunfacture Handheld Printer 50.8mm Expiry Date Industrial Hand Inkjet Printer
- Yaomatec Manufacture Handheld Printer 10CM Industrial Inkjet Printer Expiry Date Production Date Printer
- Yaomatec Maunfacture Handheld Printer 25.4mm Metal Wood Plastic Industrial Inkjet Printer Expiry Date printer
- Yaomatec Maunfacture Handheld Printer D30 Model English 12.7mm Logo Printer Handheld Inkjet Expiratio
Product Details
Condition: | New | Plate Type: | Flatbed Printer | Place of Origin: | China |
Brand Name: | ZhongYe | Model Number: | UVA-SK1800 | Automatic Grade: | Automatic |
Dimensions(L*W*H): | 3.8m*1.6m*1.4m | Weight: | 1000KG | Certification: | CE ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

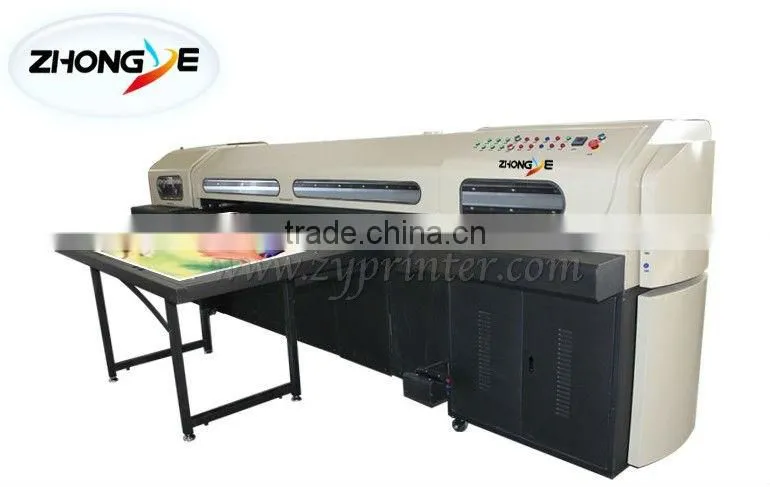

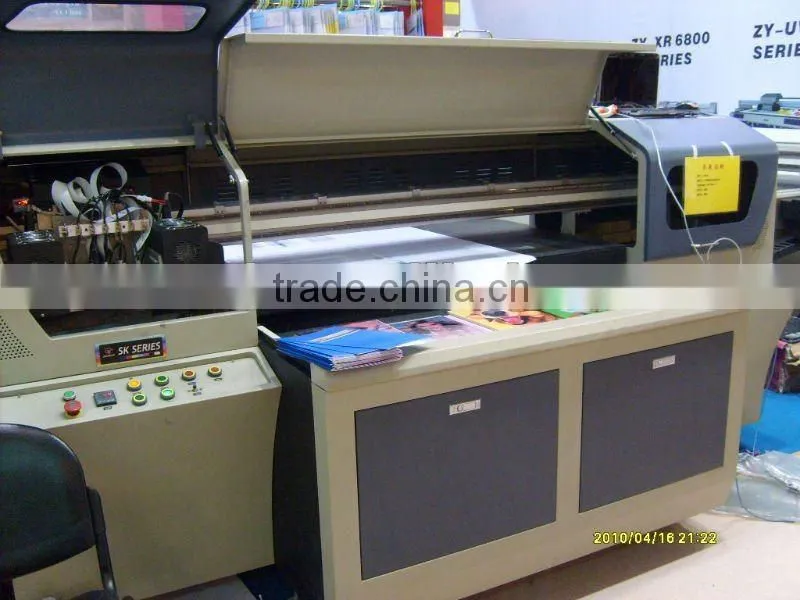

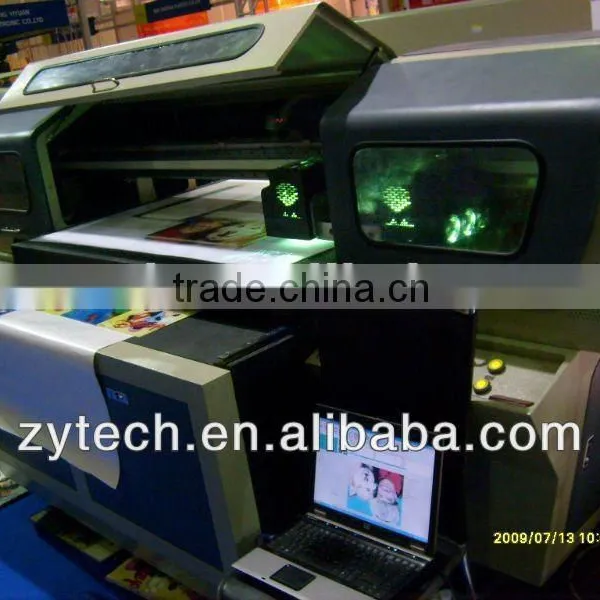

Zhongye UV series UV flatbed printer adopts Seiko print heads,and can print both roll to roll and sheet to sheet, with feed in and take up rollers. Media move on front and back rollers flatbed and the wide belt main flatbed to finish printing. Print height reach 8cm maximum.
Application
KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;
leather and all the roll to roll materials like flex banner,mesh,one way vision,vinyl etc
Features:
1.UV technology
2.Economical price and ingenious design
3.UV LED drying systerm, best and fast drying and curing. Even materials which cannot bear high temperature can also be printed very well
4.With both roll-to-roll and sheet-to-sheet media handling system, it is a real muti-functional UV printing equipment
5.No need negative-pressure systerm, easier operation
6.High resolution
After sold service
1.Anytime on line technology support
support
3. send the technician to your place for helping
Tchnical parameter
Name: | UVA-SK1800 |
Class: | UVA series |
Print technology: | Drop-on-demand Piezo electric |
Print head: | 4/5/7/10/14(spt255/12pl) |
Print width: | 1.8m |
Print height: | 8cm |
Resolution: | 1440dpi max |
Speed: | 2pass 36sqm/h; 4pass 24sqm/h; 6pass 12sqm/h(10/14heads,double speed) |
Locating mode: | Raster /servo |
Color: | CMYK W LC LM |
Media width: | 1.8m |
Media handle: | Roll to roll Sheet to sheet |
Media types: | KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board; leather and all the roll to roll materials like flex banner,mesh,one way vision,vinyl etc |
Drying system: | UV LED |
File format: | TIFF,Postscript 3,JPEG,EPS,PDF |
Working process: | Printmon software for windows xp |
Rip: | Photoprint /maintop |
Power supply: | 50hz/60hz 220v(10%)20A |
Operation enviroment: | (Temperature )18-26 (Humidity )40%-70% |
Dimension: | 3.8m*1.6m*1.4m |
Weight: | 1000KG |
Print head model:SPT255,SPT510,SPT1020
The machine also can install the Epson print head.
If you are intersted in our products, pls do feel free to contct with me.
Contact Us
- Liaoning Zhongye Technology And Industry Development Co., Ltd.
- Contact nameLi Junguang
- Phone86-24-89789511-8016
- Address162 Huishan Avenue, Dongling District, Shenyang City, Liaoning Province. China Shenyang,Liaoning
