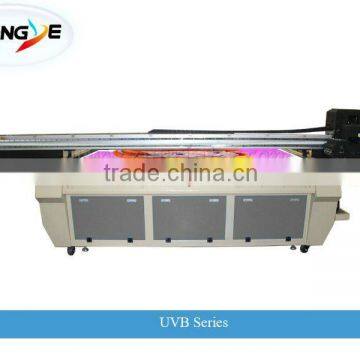

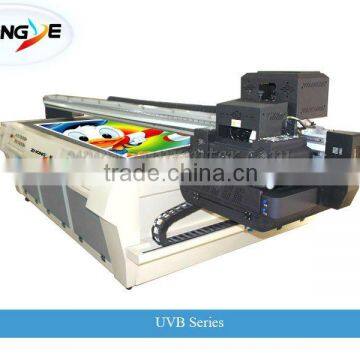

Help CenterInkjet uv Flatbed Printer UVA-SK3200
Related Products
-
UV Digital Printer/ UV Flatbed Printer UVB-EP2818US$ 29,800 - 30,800MOQ: 1 Set -
Liaoning Zhongye UV Flatbed Printer UVB-EP3218US$ 32,800 - 35,800MOQ: 1 Set
-
2014 Latest UV Digital Printer---Liaoning Zhongye UV Flatbed Printer UVB-EP3822US$ 41,800 - 43,800MOQ: 1 Set
-
UV Flatbed Printer UVA-EP2500US$ 32,000 - 35,000MOQ: 1 Set
-
Cheapest UV Flatbed Printer in China, UVE1802US$ 14,000 - 18,000MOQ: 1 Set
Summary
Zhongye UV series UV flatbed printer adopts Japanese series print heads. This printer can print both roll to roll and sheet to sheet, with feed in and take up rollers. Media move on front and back rollers flatbed and the wide belt main flatbed to finish printing. The height reach 8cm maximum.
Media types include of KT board; PVC board; Plexiglass board; glass board, ceramal board; metal board; leather etc. all flat materials like flex banner, mesh, one way vision, vinyl etc.
Features:
1.UV technology
2.Economical price and ingenious design
3.UV LED drying systerm, best and fast drying and curing. Even materials which cannot bear high temperature can also be printed very well
4.With both roll-to-roll and sheet-to-sheet media handling system, it is a real muti-functional UV printing equipment
5.No need negative-pressure systerm, easier operation
6.High resolution
After sold service
1.Anytime on line technology support
support
3.send the technician to your place for helping
Technical parameter
Name: |
UVA-SK3200 |
Class: |
UVA series |
Print technology: |
Drop-on-demand Piezo electric |
Print head: |
4/5/7/10/14(spt255/12pl) |
Print width: |
3.2m |
Print height: |
8cm |
Resolution: |
1440dpi max |
Speed: |
2pass 40sqm/h; 4pass 28sqm/h; 6pass 15sqm/h(10/14 heads, double speed) |
Locating mode: |
Raster /servo |
Color: |
CMYK W LC LM |
Media width: |
3.2m |
Media handle: |
Roll to roll Sheet to sheet |
Media types: |
KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board; leather and all the roll to roll materials like flex banner,mesh,one way vision,vinyl etc |
Drying system: |
UV LED |
File format: |
TIFF,Postscript 3,JPEG,EPS,PDF |
Working process: |
Printmon software for windows xp |
Rip: |
Photoprint /maintop |
Power supply: |
50hz/60hz 220v(10%)20A |
Operation enviroment: |
(Temperature )18-26 (Humidity )40%-70% |
Dimension: |
5.2m*1.6m*1.4m |
Weight: |
1500KG |
Print head model:SPT255,SPT510,SPT1020
The machine also can install the Epson DX5 print head.
If you are intersted in our products, pls do feel free to contact with me.
Welcome to have a further discussion.
Contact person: Cindy
Skype: cindyzhang30
QQ:2323114275
Mobile: 0086-159-9822-4800
