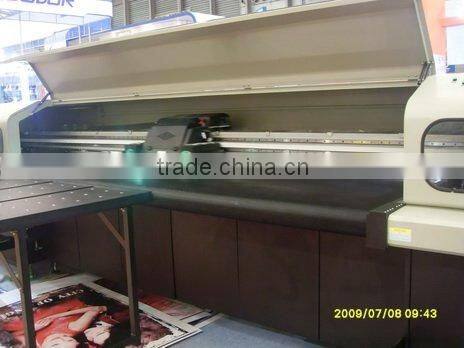

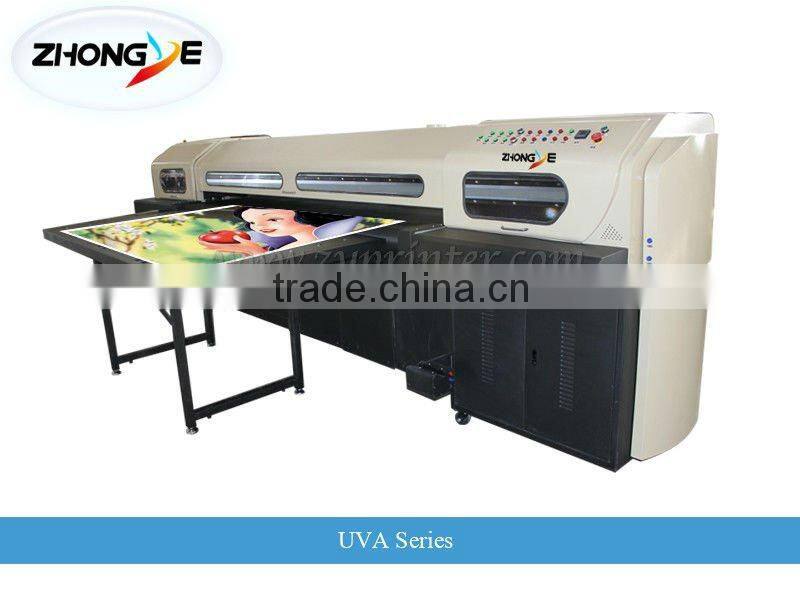

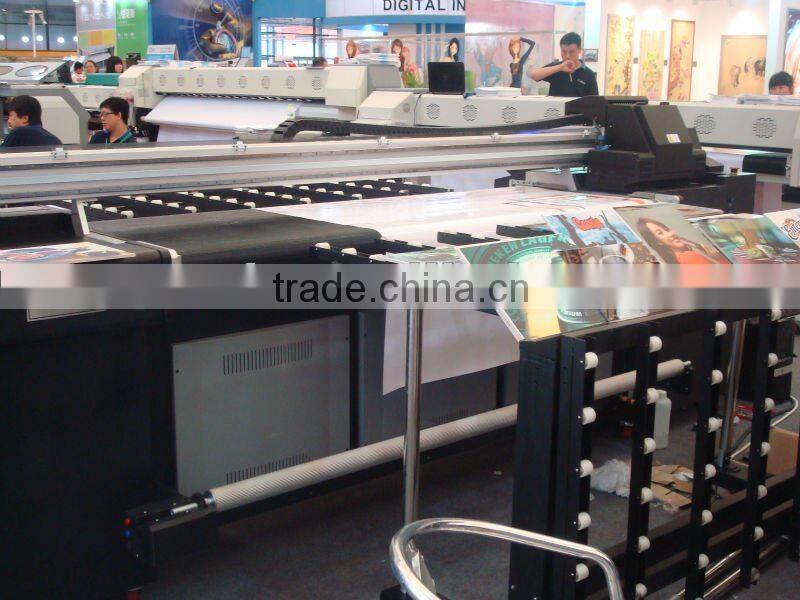

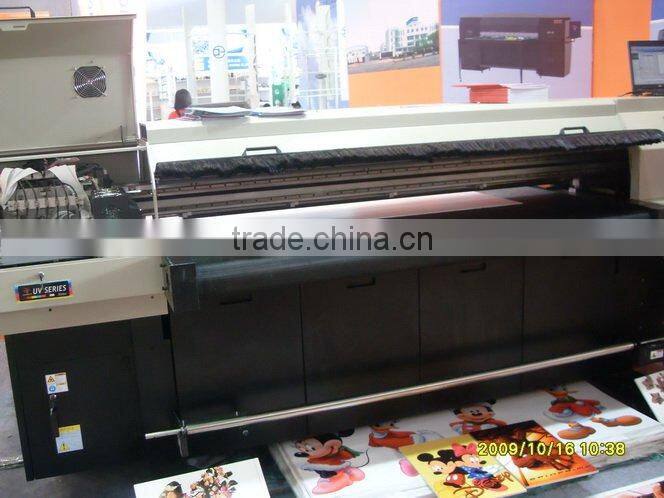

Help CenterDigital UV Printing Machine 1.80m UV-EP1800A
Related Products
-
2.5m Large Format Digital UV Printer:UVA-EP2500US$ 25,000 - 50,000MOQ: 1 Set -
Large Format UV Printer(seiko Printhead):UVA-SK2500US$ 20,000 - 40,000MOQ: 1 Set
-
Liaoning Zhongye Digital Inkjet Solvent Printer ZY-SK3406US$ 20,000 - 210,000MOQ: 1 Set
-
Large Format Printer 5meterUS$ 26,000 - 35,000MOQ: 1 Set
-
750 Inkjet PrinterUS$ 800 - 1,500MOQ: 1 Set
Specifications
Epson print heads;1/2 heads, colors (CMYK),width of 1.80m, 8 cm thickness of material,can print on any surface.
| Name: | UVA-EP1800 |
| Class: | UVA series |
| Print technology: | Drop-on-demand Piezo electric |
| Print head: | 1/2(Epson DX5) |
| Print width: | 1.8m |
| Print height: | 8cm |
| Resolution: | 1440dpi max |
| Speed: | 1head: 2pass 25sqm/h; 4pass 16sqm/h; 6pass 10sqm/h 2heads: 2pass 50sqm/h; 4pass 32sqm/h; 6pass 20sqm/h |
| Locating mode: | Raster /servo |
| Color: | CMYK |
| Media width: | 1.8m |
| Media handle: | Roll to roll Sheet to sheet |
| Media types: | KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll materials like flex banner,mesh,one way vision,vinyl etc. |
| Drying system: | UV lamp |
| File format: | TIFF,Postscript 3,JPEG,EPS,PDF |
| Working process: | Printmon software for windows xp |
| Rip: | Photoprint /maintop |
| Power supply: | 50hz/60hz 220v(10%)20A |
| Operation enviroment: | (Temperature )18-26 (Humidity )40%-70% |
| Dimension: | 3.8m*1.6m*1.4m |
| Weight: | 1000KG |
Gerneral Information
Printing methods: Drop-on-demand piezo electric
Ink reservoirs: Refillable on the fly while printing
Ink characteristics: UV Curable Inks
Printhead controls: Print head temperature and voltage are software adjustable
Media feeding system: Free spin / motor-driven lazy loop for optimal banner tension
Media take-up system: Automatic motor-driven spool 60m (200') capacity
Media handling options: Roll to roll / Rigid Sheets
Drying system: UV Lamp
RIP software: Photoprint 5zhongye Edition
(Windows 2000, Windows Xp Pro SP2)
Color management: ICC based color, adjustment curves, density adjustment
File formats: TIFF,JPEG,Postscript 3,EPS,PDF etc.
Electrical requirements: 50Hz/60Hz,220V(±10%)>20A
Environmental requirements: Ambient temperature20-30,Relative humidity40-70%
Warranty: one year warranty
3.Together with the printer: CD for printing software and driver, instruction, for how to install and use it, and maintenance, also the spare parts box.
4.After sell service: anytime online technology support; video support; send technician to your place for helping you. all for free.
