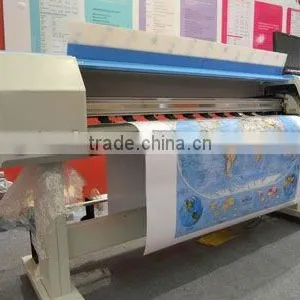

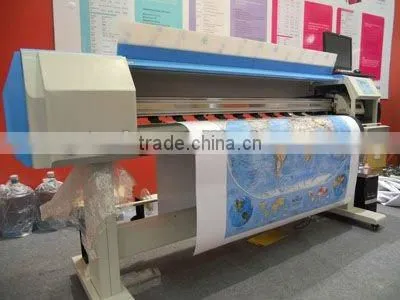

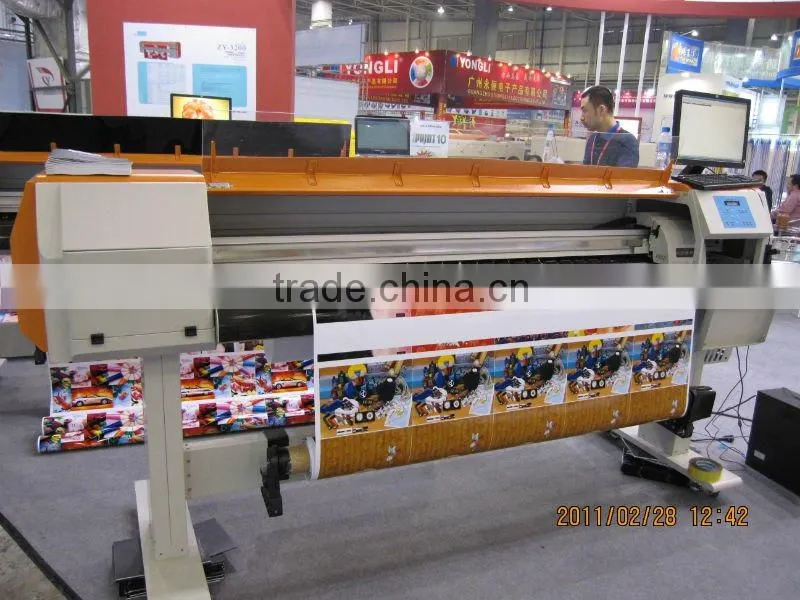

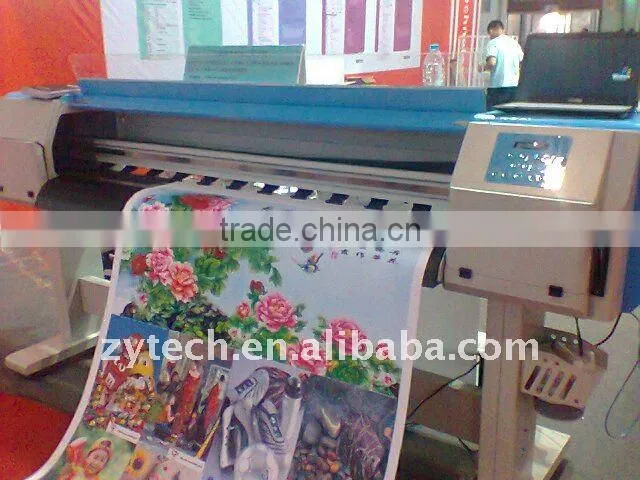

2.5 m Eco Solvent Large Format Printer: ZY-E2500(6COLORS)

Name: 2.5 m Eco Solvent Large Format Printer: ZY-E2500(6COLORS)
Brand: Zhongye
SKU: 117295867

US$ 5,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, eco solvent printing

Place of Origin:

Liaoning, China

Liaoning Zhongye Technology And Industry Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, eco solvent printing

Place of Origin Liaoning, China

Brand Name Zhongye

Model Number ZY-E2500

Usage Bill Printer

Automatic Grade Automatic

Voltage 220v

Gross Power 50hz/60hz 220v(10%)20A

Dimensions(L*W*H) 3.6m*0.9m*1.25m

Weight 160KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

2.5m eco solvent printer
1, 1/2 pcs Eption 5th print heads
2, panasonic motor equipped
3, real 1440dpi

Print head	Micro Piezo print head,3.5PL Ink Droplet Size(EPSONDX5)1-2pieces(optional)
	4 colors:C,M,Y,K,
	Printer Head Height :Adjustable 2~5mm
Printing resolution	1440DPI(2880DPI MAXIMUM)
Printing width	2.5m
Printing speed	Draft Mode:50sqm/h
	Standard Mode:26sqm/h
	Quality Mode:14sqm/h
Drying System	Temperature digital controlling heating,front,middle and back (optional)
Media	Media width:2.5m
	Automatic feeder,Automatic take up (optional)
	Adhesive PP paper,Photo paper,PP,canvas,PET,vinyl..Eco-solvent material.
Ink	Eco solvent dye
Ink	Sublimation dye
RIP	MAINTOP,PHOTOPRINT,ULTRAetc
RIP	Supported Image Format:TIFF,JPEG,PDF and other common image formats
Control Software	Chinese version and English version
Operating System	WINDOWSXP
Voltage	220~240V50/60HZ
Operating Enviroment	1000W(maximum)300W(standard)
	Temperature:20-25°C
	Humidity:40%-70%
Dimension	Machine size:3.6m0.9m1.25m
	Net weight:340KG
	Gross weight:450KG
Remark	Make the above parameters is 2 heads,1.8 meter machine test standard,if there are some changes ,will be not noticed.
