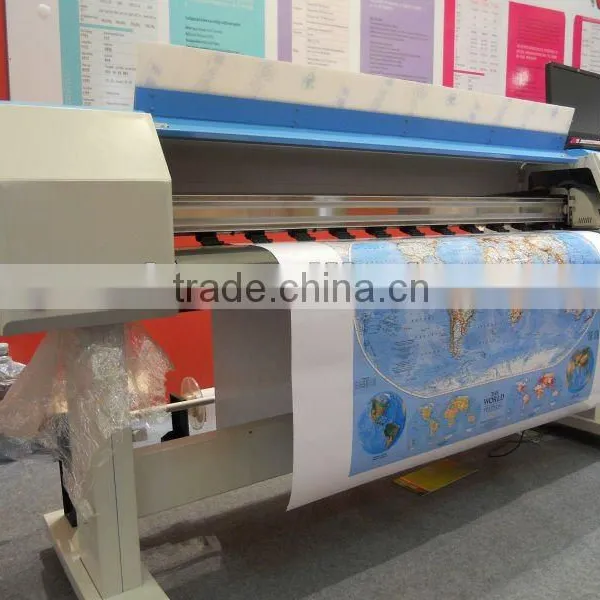

Best Resolution E1800(4colors X2) Eco Solvent Printer

Best Resolution E1800(4colors X2) Eco Solvent Printer thumbnail-1
Best Resolution E1800(4colors X2) Eco Solvent Printer photo-1
US$ 7,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, large format solvent printing
Place of Origin:
Liaoning, China
Contact Supplier Request Quote Chat Now
Liaoning Zhongye Technology And Industry Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, large format solvent printing
Place of Origin Liaoning, China
Brand Name Zhongye
Model Number E1800
Usage Other, vinyl sheet and carpet paper,flex banner, pvc, mesh fabrics.etc advert
Automatic Grade Automatic
Gross Power 50hz/60hz 220v(10%)20A
Dimensions(L*W*H) 2.8m*0.7m*1.4m

Specifications

1.8m eco solvent printer
1, 4/6(spt510/255) print head
2, panasonic motor equipped
3, real 1440dpi

eco solvent printer



Name E1800(4COLORS x 2)
Class ZY-SK series
Print technology Drop-on-demand Piezo electric
Printhead 4/6(spt510/255)
Print width 1.8M
Resolution 1440dpi max
Speed 2pass 24m/h ; 4pass 16m/h ; 6pass 10m/h
Locating mode Raster /servo
Color CMYK LC LM
Media width 1.8M
Media handl Roll to roll
Media types Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc
Ink  Solvent/two-year outdoor lifetime
File format TIFF,JPEG,Postscript 3,EPS,PDF
Working process Printmon software for windows xp
Rip Photoprint /maintop
Power supply 50hz/60hz 220v(10%)20A
Operation environmeng (Tempperature )18-26(Humidity )40%-70%
Dimesion 2.8m*0.7m*1.4m
Weight 350Kg/450Kg

ZY SERIES LARGE FORMAT SOLVENT PRINTER: Adopting SPT printheads. Locating mode is combined with DC motor and raster. This kind of printer is widely used for outdoor printing.It will be your first choice of High-speed & High-resolution printer for its 1440 DPI resolution and 90m2/h speed.
Above printing speed is at the basis of 510(180x180 dpi) printheads or Xaar 500 (180x180 dpi) printheads .The printer also can adopt 255 printheads but the printing speed will decrease half.

Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor;
Rail:Japanese THK,Tawinese HWIN;
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system.



LIAONING ZHONGYE (ZY) TECHNOLOGY AND INDUSTRY DEVELOPMENT CO., LTD.



 162 Huishan St. Huishan Hi-Tech Development Zone Shenyang Liaoning China 110164



Tel: 0086 24 89789511-8015  Fax: 0086 24 89789357



Contact person: eric lee      Skype:    eric.lee1103           MSN: eric-zhongyetech at
