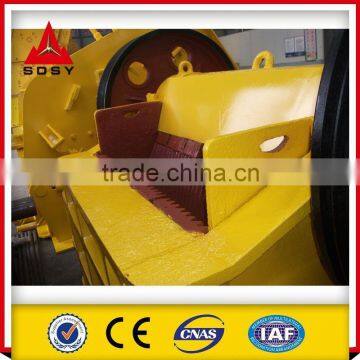

Model Frame Construction Series Jaw Crusher
- 500 Unit / Units per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | Quarry, ore, stone, rock, coal,gypsum, granite, basalt,etc |
Motor Type: | AC Motor | Power(W): | 30-200kw | Capacity(t/h): | 10-800t/h |
Place of Origin: | Shandong, China | Brand Name: | SDSY | Model Number: | PE,PEX Series ( model frame construction series jaw crusher ) |
Dimension(L*W*H): | Based on the model of crusher | Weight: | Based on the model of crusher | Certification: | ISO,CE |
Warranty: | One year except wear spare parts | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Model Frame Construction Series Jaw Crusher: Standard export packing, nude or in container. ( model frame construction series jaw crusher model frame construction series jaw crusher )
Product Description
Model Frame Construction Series Jaw Crusher
Working Principle of Jaw Stone Crusher
Motor passes motive power to eccentric shaft end's pulley, making the eccentric shaft under lead of motor do rotatory movement according to the demanded speed rated; Dynamic jaw head propelled by the eccentric shaft's eccentric force makes regular fixed track compressive to break the materials.
Characteristics of Jaw Stone Crusher
1. Big feeding granularity and breaking ration, large capacity.
2. Opration is stable and reliable, fixed with over-loading protective device.
3. Low energy consumption , little wearing spare parts, low maintenance cost.
4. Adjusting parts are reinforced emphatically and finish machining, reduce repair frequence.
5. Axle bearing adopts with Multi-storey labyrinth seal, prolonging operation life.
6.Using modules lubrication, more easier and convenient for maintenance.
7.Adopting belt pulley new locking craft, keyless connection, making mainenance more convenient.
Application of Jaw Stone Crusher
1. Widely applied to all sorts of ore, rock, quarry, etc., the breaking compressive strength not exceeding 320Mpa.
2. Being widely used in mine, metallurgy, roads and bridges, building materials, water conservancy and chemical industry, etc.
Specifications of Jaw Stone Crusher
Model |
Feeding port size(mm) |
Max feeding size(mm) | Adjustable rang of discharge opening(mm) |
Capacity(t/h) |
Power(kw) |
Dimension (mm) |
Weight(t) |
PE-250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 1430×1310×1340 | 3 |
PE-400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 1700×1732×1653 | 7 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 45-55 | 2035×1921×2000 | 12 |
PE-600×900 | 600×900 | 480 | 65-160 | 90-180 | 55-75 | 2290×2206×2370 | 17 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 90-110 | 2655×2302×3110 | 29 |
PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 110-132 | 3800×3166×3045 | 58 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 4200×3750×3820 | 100.9 |
PEX-250×750 | 250×750 | 210 | 25-60 | 15-30 | 22-30 | 1667×1545×1020 | 5 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 1550×1964×1380 | 7 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 2192×1900×1950 | 8.5 |
About Warranty:
Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice and find the solution immediately for you when the machine is in trouble-shoot. For wearing spare parts, we guarantee the high quality parts for long-time supply.
Our Services
1. We guarantee our reply in 24 hours of working day.
2. Our engineers will communicate with our customers in different languages to help them to solve the technical questions and quality issues.
3. Our professional QA people make strict inspection before shipment.
4. Punctual shipment time and good after-sales service will be guaranteed.
Click Here To Visit Our Home Page, And You Will Find More Surprises~
http://sypsj.en.china.cn/
Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher Model Frame Construction Series Jaw Crusher
Company Profile
Shandong Chengming Construction Machinery Co., Ltd. is a provincial enterprise with high and new technology, having our complete departments integrating the research, manufacture and sale of series of crushers, matching equipment of crushing stone sieves, as well as the supply of processing, installation and transporting services. Our company is also an enterprise that obeys contracts and emphasizes credit. Our company registered $750,000 as capital, and our sales income comes up to about $750,000. For ten years, taking our enterprise spirit of "good faith, being pragmatic; innovation, development", through persevering efforts, our company has become an important manufacture and export base rapidly.
Based on talents, we develop creatively. There are a number of research elitists in our company. They are respecting their career and are expert at doing it. They also represent the leading level in technology. For years, they devote all their efforts to the absorption and digestion of advanced technique both at home and abroad, improve enterprise's technical and innovative capacity constantly. Our company has formed a product chain firstly based on series of crushers, secondly based on the matching products such as feeding, sizing and others. At present, our main products are PE, PEX series jaws, PF series reaction equipment, WPC, PC series attaching machines, PG2X series rolling machines, CZG, ZSW series feeders, and YZ, ZSB series vibrating screens totally eight series, dozens of specifications of crushing machines, and crushing stone sizing matching products, which are widely used in the fields of mine, building materials, metallurgy, roads and bridges, and energy.
Quality is the life of an enterprise. Our company takes quality as core and has established a series of strict and efficient quality administrative systems to make sure product quality. Our company was assured by ISO9001 in counterparts firstly. In order to promote the principle of "Manufacture, striving for perfection, pursuing consummation", our company adopts new craft, new equipment to make sure high-standard and high-quality products.
Our company obeys the principle of "Take quality as the basis, regard the users as the first importance", emphasizes on the sale on line. "Shan Yuan" brand series of products have very strong competitive advantages in the intensive market both at home and abroad. Putting Customers at the first place, providing satisfactory services for customers, we have no excuse. Our company has a procession with rich experience, exquisite after-sale services, and takes services to accomplish honesty, considering for customers on everything. Our company also provides the most considerate services actively and fast.
Shandong Chengming Construction Machinery Limited Company takes the developing principle of "Shandong Shan Yuan, Being Trustworthy Forever", sticking to taking quality to accomplish brand, taking service to promote brand and creating actively.
We welcome all customers and friends both at home and abroad to give us your presence and guidance sincerely, to accomplish the win-win cooperation.
