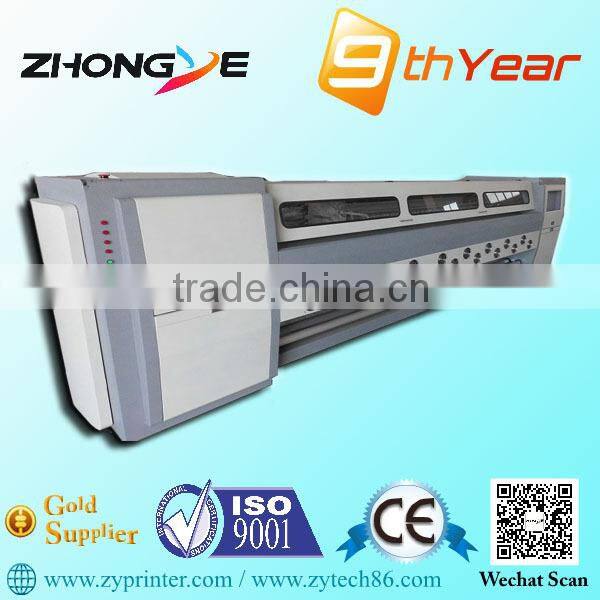

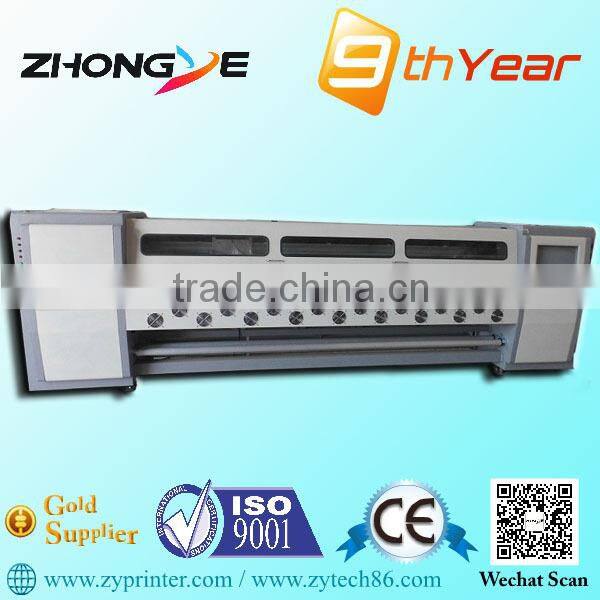

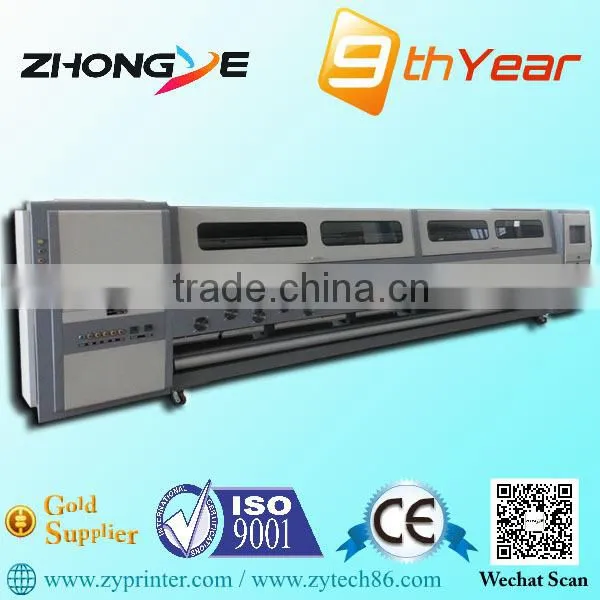

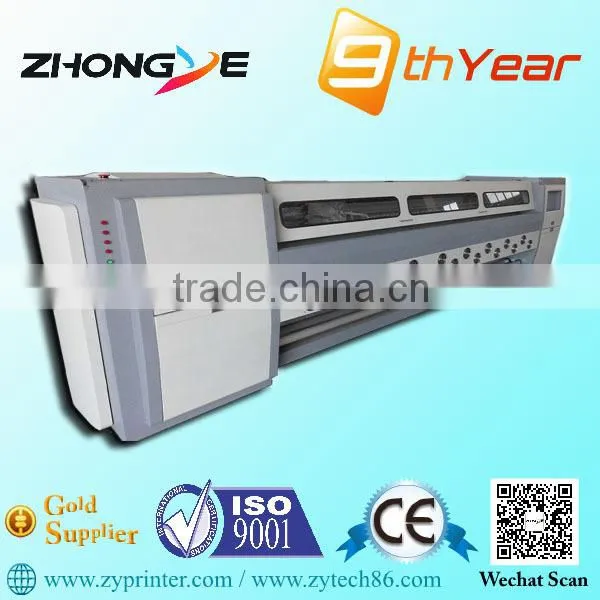

Help CenterZY 5M Solvent Printer (Spectra Polaris 512 Printhead 35PL)
Related Products
-
3.2m Outdoor Solvent Printer With XAAR382 Print Head(4/6/8/12 Pieces)1440DPI, Large Format Solvent PrinterUS$ 9,000 - 14,000MOQ: 1 Set -
2.5m Outdoor Solvent Printer With XAAR128 (8/12 Pieces) Print Head 720DPI, Large Format Solvent PrinterUS$ 6,000 - 8,000MOQ: 1 Set
-
2.5m Digital Outdoor Solvent Printer With SPT510/1020 Printer Head ,large Format Solvent Printer ,flex Printing MachineUS$ 9,000 - 17,000MOQ: 1 Set
-
2.5m Outdoor Solvent Printer With XAAR382 (4/6/8/12 Pieces)print Head 1440DPI, Large Format Solvent PrinterUS$ 8,000 - 14,000MOQ: 1 Set
-
High Speed 3.4m Large Format Solvent PrinterUS$ 13000.00 - 13000.00MOQ: 1 Set
Packaging & Delivery
| Packaging Detail: | wooden case |
| Delivery Detail: | 5-10days after received the prepayment |
Specifications
1.Polaris 512 Print Head With High Resolution and High Speed
2.Print width :5.0M
3.Roll materials
4.6Color:C,M,Y,K,LC,LM:

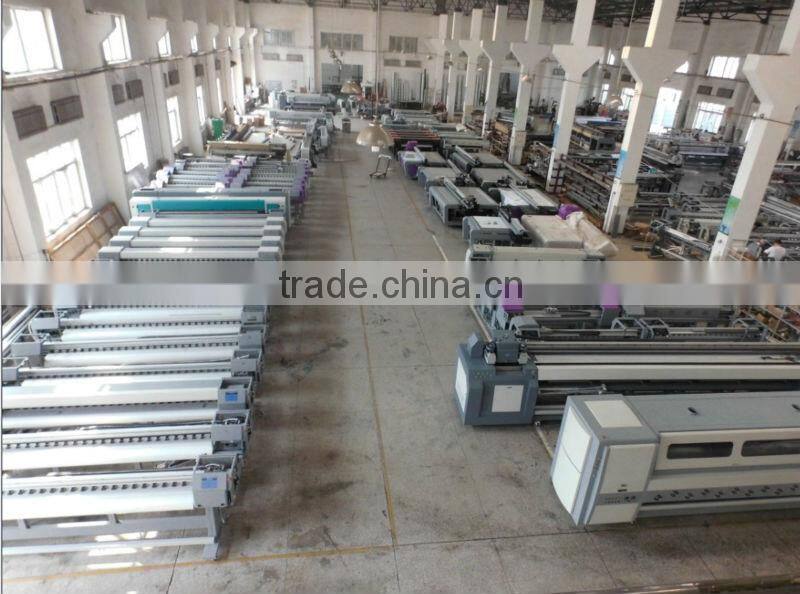

We are professional manufacturer of solvent printer in China. our products have been exported to more than 60 countries such as USA, Brazil, Mexico, Chile, Australia ,UK, Spain, Portugal. Italy. German, Turkey, Russia, Ukraine, India, Philippines, Indonesia Mid-East, South Africa, etc.
Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor;
Rail:Japanese THK,Tawinese HWIN;
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system
Our solvent printer can print flex banner, mesh, one way vision, vinyl ,PVC,fabrics, paper etc. roll materials.
This model is with two groups heads(two heads each color). You can also choose our printer models with one group heads(one head each color, 4pcs heads for 4colors,6pcs heads for 6colors).
The warranty time is 1 year, which means in the first year, the spares (not include the print heads and small spending spare parts) are free to be exchanged or repaired in case of some faults. We can supply technical support any time by email, messager, phone and other available methods. we can sent our technician to your place if you need,but the cost of air tickets/visa/board and loding need to be paid by costomers’s side.
Name: |
SP5300 |
Class: |
SK series |
Print technology: |
Drop-on-demand Piezo electric |
Printhead: |
4/6/8/12(Polaris 35pl) |
Print width: |
5.0m |
Resolution: |
1440dpi max |
Speed: |
2pass 240sqm/h;4pass 120sqm/h;6pass 80sqm/h(4/6 heads, half speed) |
Locating mode: |
Raster /servo |
Color: |
CMYK LC LM |
Media width: |
5.0m |
Media handle: |
Roll to roll |
Media types: |
Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc |
Ink: |
Solvent/two-year outdoor life |
File format: |
TIFF,JPEG,Postscript 3,EPS,PDF |
Working process: |
Printmon software for windows xp,win7 |
Rip: |
Photoprint /maintop |
Power supply: |
50hz/60hz 220v(10%)20A |
Operation enviroment: |
(Temperature )18-26(Humidity )40%-70% |
Dimesion: |
7.2m*1.4m*1.7m |
Welcome to have a further discussion.
Contact person: Cindy
Skype: cindyzhang30
QQ:2323114275
Mobile: 0086-159-9822-4800
