3.2m outdoor solvent printer with XAAR382 print head(4/6/8/12 pieces)1440DPI, large format solvent printer

Name: 3.2m outdoor solvent printer with XAAR382 print head(4/6/8/12 pieces)1440DPI, large format solvent printer
Brand: zhongye
Price: USD $9,000 - 14,000 / Set

FOB Price

USD $9,000 - $14,000 / Set

1 Set(Min.Order)

Supply Ability 2500 Set / Sets per Month
Port Dalian(China)
Payment Terms:T/T PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Plate Type:	Other, large format solvent printer	Place of Origin:	Liaoning, China
Brand Name:	zhongye	Model Number:	XR3200-382	Usage:	Other, for outdoor and indoor
Automatic Grade:	Automatic	Voltage:	50Hz/60Hz 220V(10%)20A	Gross Power:	1000W(Max.)300W(standard)

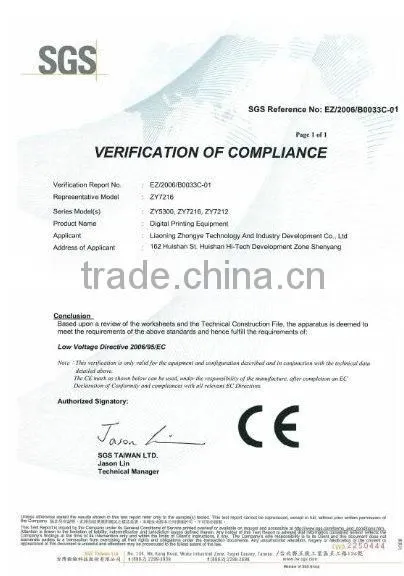

Dimensions(LWH):	4.7m0.77m1.55m	Weight:	550kg/670kg	Certification:	CE Certification
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

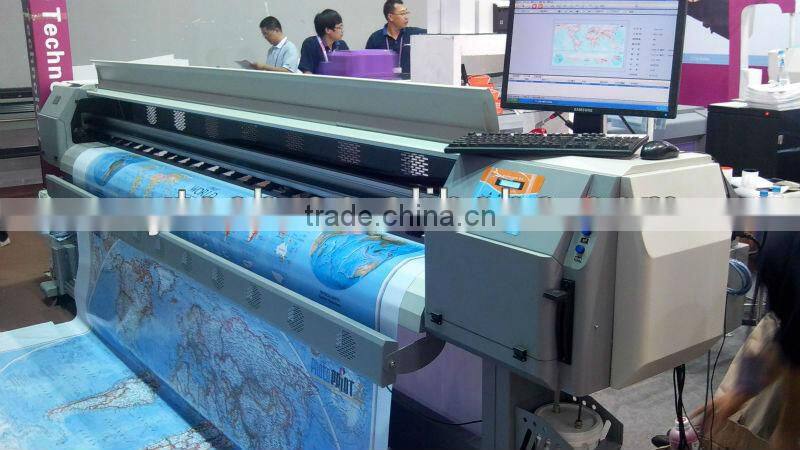

3.2m Digital Large Format Solvent Printer XAAR382

	XR3200-382
Print head	Drop-on-demand Piezo electric
	6 colors:C,M,Y,K LC,LM
	4/6/8/12 pieces(XAAR382)
Printing resolution	1440DPI
Ink	Solvent Ink/two-year outdoor lifetime
Printing width	3.2m
Printing speed	2pass: 110sqm/h 4pass: 55sqm/h 6pass: 35sqm/h (4/6heas,half speed)
Media Width	3.2m
Media Handle	Roll to Roll
Media Types	Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc
Drying System	Heater/Fans
Locating mode	Raster/servo
File format	TIFF,Postscrip3,JPEG,EPS PDF and other common image formats
RIP	MAINTOP,PHOTOPRINT
Control Software	Chinese version and English version
Working Process	Printmom software for WINDOWS XP/WINDOWS 7
Power supply	50/60HZ 220V(10%)20A
Operation Enviroment	Temperature:18-26 Humidity:40%-70%
Dimension	Machine size:5.1m1.0m1.7m
	Net weight:450KG
	Gross weight:570KG
Remark	Make the above parameters is 3.2 meter machine test standard,if there are some changes ,will be not noticed.

Product Application

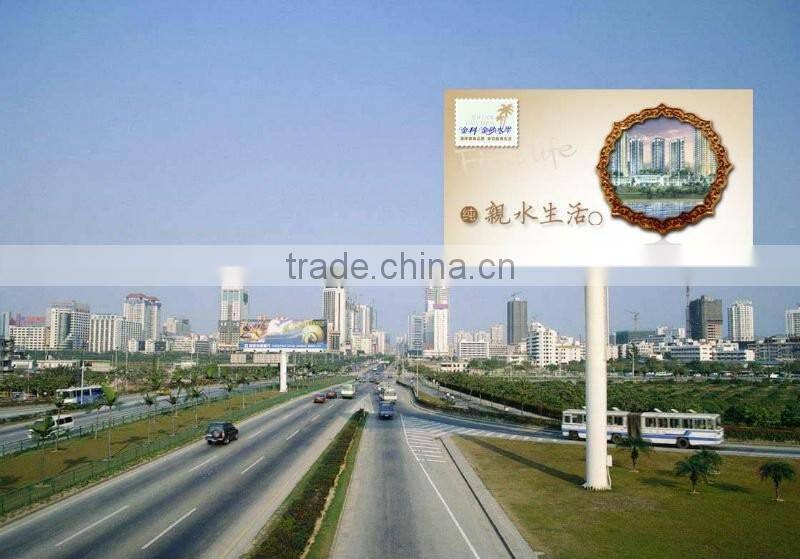

Strong media feed-in system,for smooth printing on heavy outdoor materials,such as Flex banner,Vinyl,mesh and so on.Make your life colorful with zhongye.

Main Features

1) Adopts Seiko print head,4/6/8(SPT510/1020) optional.

2) Moto:Japanese Panasonic,Fuji AC Servo motor.

3) Rail:Japanese THK,Tawinese HWIN.

4) Heating system:front&back double heating.

5) Feed-in&take-up system:IR controlled auto feed-in&take-up system.

6) Printhead cleaning system:positive pressure,vaccum.

7) Ink system:German KNF ink supply system,Japanese negative pressure system.

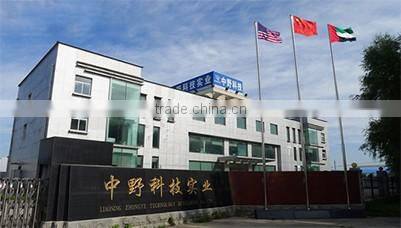

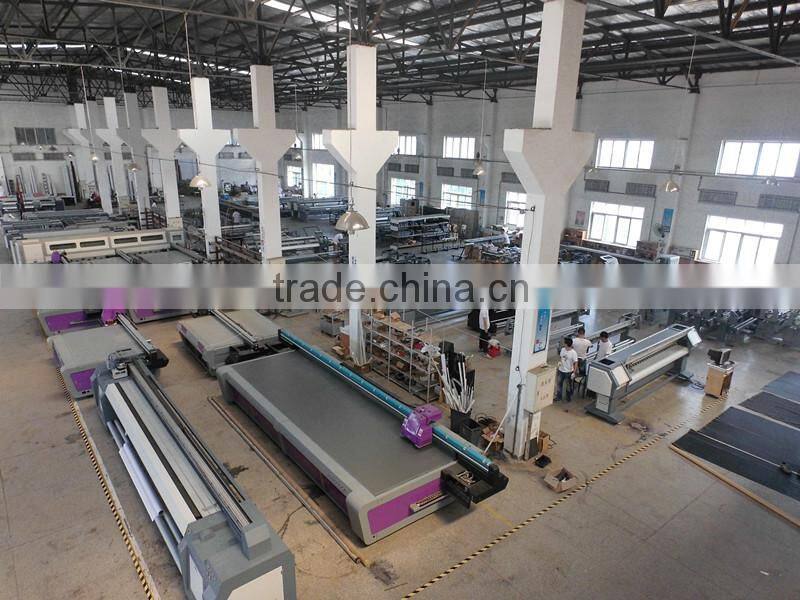

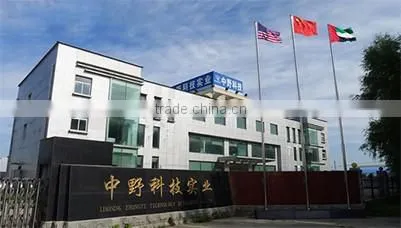

About zhongye

Liaoning science and Technology Industry Development Co., Ltd. was founded in 1998, is China's only a set of digital printers and all advertising materials manufacturers of the authority. Consecutive years in Liaoning Province, the export enterprises in the 50 column.

**Zhongye Technology and industry Development Co.,Ltd is one of the leading manufactures in China.
**216 office workers, with strong technology researching and development team.
**12 electronic engineers,5 software engineers,12 mechanical engineers,20 test engineers.

Our global clients

Our Service

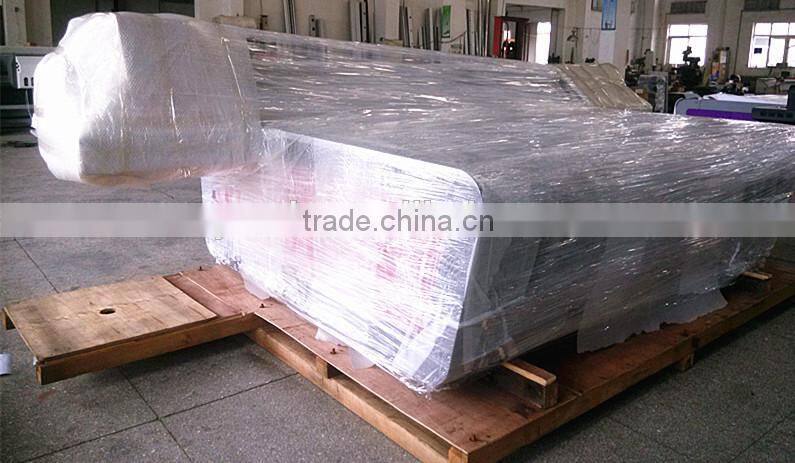

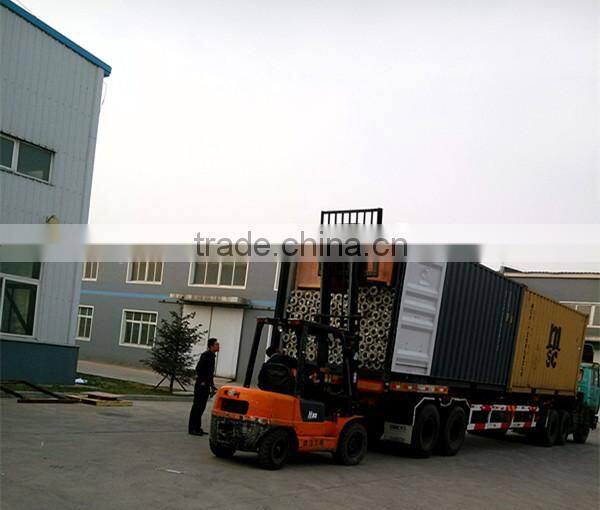

Packing & Delivery

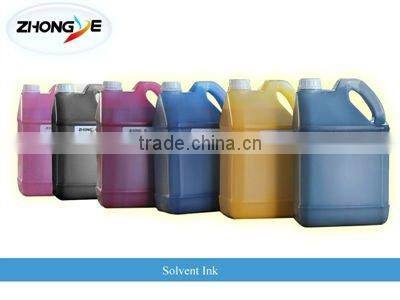

Eco solvent ink

Mesh

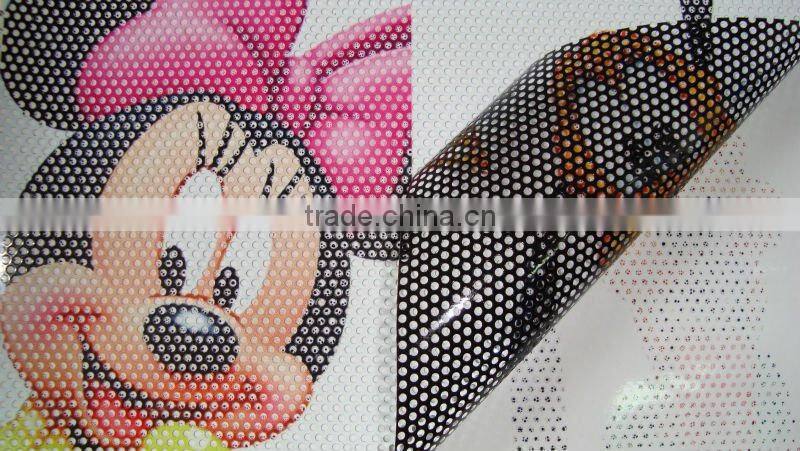

One way vision

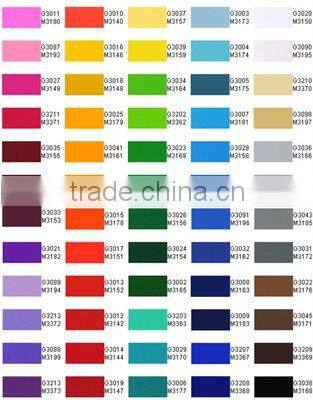

Vinyl sheet

Flex banner

Contact Us

Liaoning Zhongye Technology And Industry Development Co., Ltd.: Contact nameLi Junguang; Phone86-24-89789511-8016; Address162 Huishan Avenue, Dongling District, Shenyang City, Liaoning Province. China Shenyang,Liaoning
