3.2m solvent printer with Spectra Polaris head
- 100 Set / Sets per Month
- Dalian/Shanghai
- T/T Credit Card
- Flatbed UV Printer 9060 6090 Flatbed Printer with Ricoh Heads
- Diagraph TJ500/TJ1000 THERMAL INKJET PRINTERS
- Yaomatec Maunfacture Handheld Printer 50.8mm Expiry Date Industrial Hand Inkjet Printer
- Yaomatec Manufacture Handheld Printer 10CM Industrial Inkjet Printer Expiry Date Production Date Printer
- Yaomatec Maunfacture Handheld Printer 25.4mm Metal Wood Plastic Industrial Inkjet Printer Expiry Date printer
- Yaomatec Maunfacture Handheld Printer D30 Model English 12.7mm Logo Printer Handheld Inkjet Expiratio
Product Details
Condition: | New | Plate Type: | Other, digital print | Place of Origin: | China |
Brand Name: | ZHONGYE | Model Number: | SP3204 | Usage: | Other, PVC banner print |
Automatic Grade: | Automatic | Dimensions(L*W*H): | 4.7m*0.8m*1.5m | Weight: | 670KG |
Certification: | CE/ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

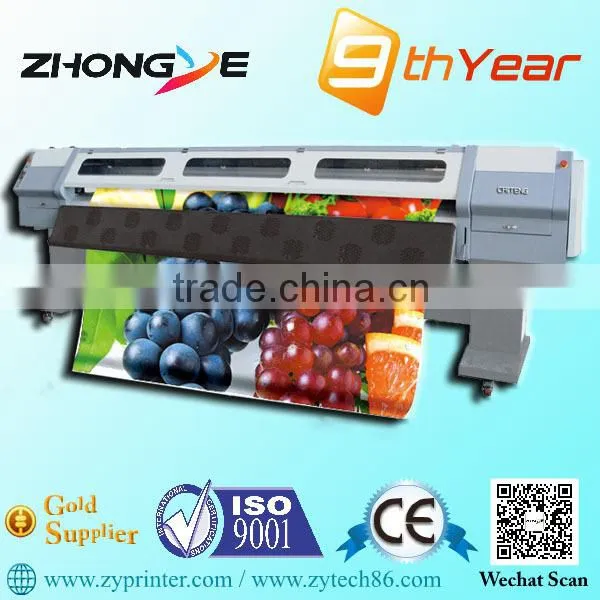

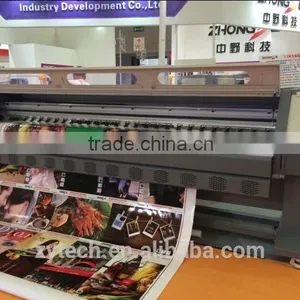

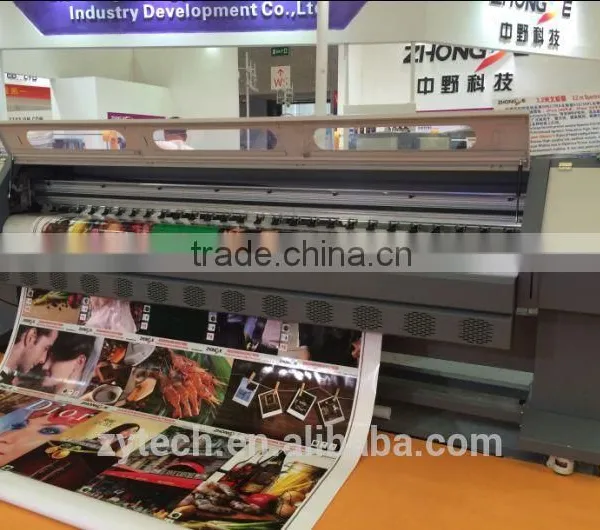

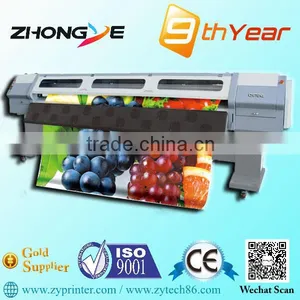

ZhongYe Polaris printer: adopting Polaris 35pl all-steel printhead from Spectra of USA.
Each head has 512 nozzles, size of each nozzle is 35pl, Ignition Frequency of the head is
30-50K, its speed is 2~4 times of similar products, printer speed can reach 98m2/h when 4
heads working together.

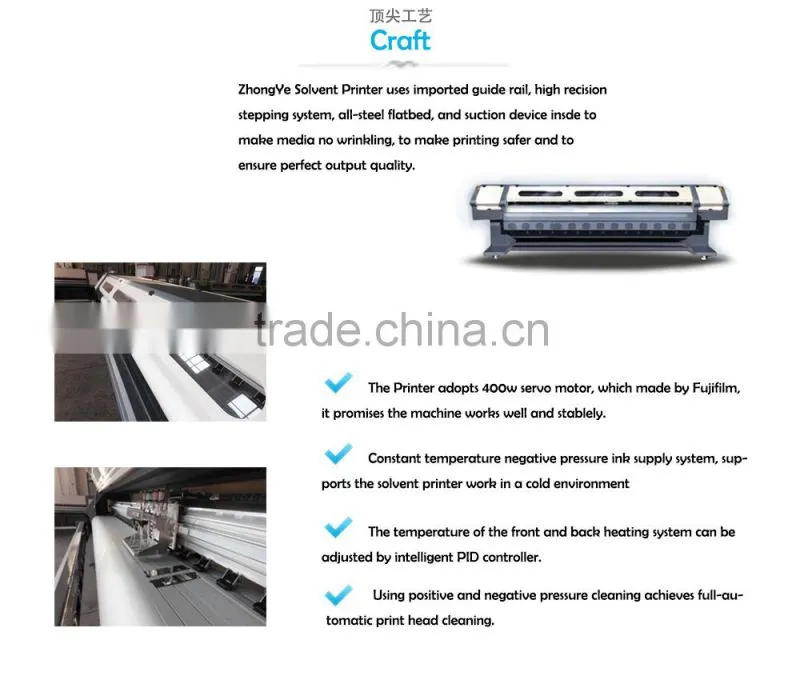

The printer uses imported guide rail, high precision Stepping system, all-steel flatbed,
and suction device inside to make media no wrinkling, to make printing safer and to ensure
perfect output quality; Using positive and negative pressure cleaning system achieves
full-automatic printhead cleaning, tee coupling function and moisturizing device
effectively protect the printheads and make them longer life.
The temperature of the front and back heating system can be adjusted by Intelligent PID
controller, the degree of adsorption can be adjusted by the adsorption knob; the perfect
printing quality meanwhile keeping heads in good condition can be achieved by newest high

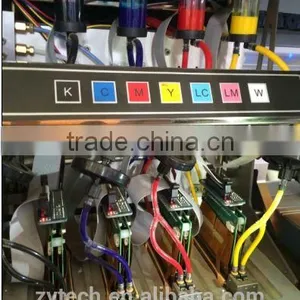

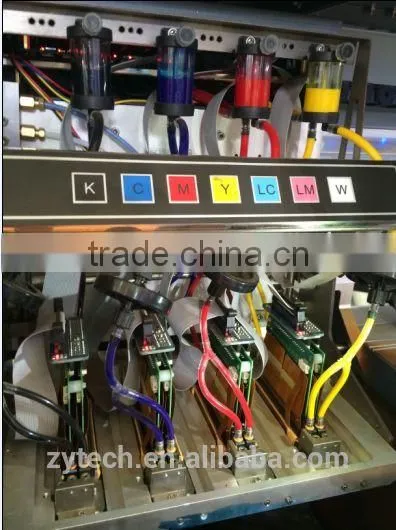

quality ink-supply system and structure of ink cartridge leeching on to Carriage.
Feature:
1. with 4-8 pcs Spectra Polaris head
2. high resolution
3. fast printing speed
4. low ink cost
5. stable performance
High quality ! Best price ! Fast after-sale-service !
sp3204 solvent Printer
With Spectra Polaris 512 Head, C M Y K color , high quality to print on flex banner ,vinyl sticker ,one way vision ,mesh etc
Here we provide you:
1. Original software
2. Two year warranty
3. English operation manuel
4. Online support
5. On-site installation
Model | SP3204 | ||||||
Print Head | Spectra Polaris 512 | ||||||
Number of Printhead | 4/6/8 Heads | ||||||
Maximun Print Width | 3.2m | ||||||
Speed | 2Pass 120M2/hr | ||||||
4Pass 80M2/hr | |||||||
6Pass 50M2/hr | |||||||
Media | max.width | 3.2M | |||||
Type | PVC banner, adhesive vinyl, mesh, one way vision etc… | ||||||
Heating System | Heater&fans | ||||||
Working system | Window XP / Window 7 | ||||||
Ink | Type | solvent ink (C,M,Y,K) | |||||
Capacity | 1L or 5L per Color Main Tank | ||||||
Auto Cleaning System | equiped | ||||||
Print interface | USB2.0 | ||||||
Power Specification | 220V/230V 20A 50Hz/60Hz | ||||||
Operational Environment | Temperature:18℃-26℃ Humidity:40%-70% | ||||||
Compatible RIP Software | Photoprint, Maitop | ||||||
Dimension& Weight | Machine | L4.7m×W0.8m×H1.5m 670kg |
