Home > Products > PE Series Jaw Crusher > 100 Tons Portable Rock Crusher Plant
100 Tons Portable Rock Crusher Plant
- 100 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | mining, construction |
Motor Type: | AC Motor | Power(W): | 30-180 | Capacity(t/h): | 10-1000 |
Place of Origin: | Shandong, China | Brand Name: | SDSY | Model Number: | YZ Series |
Dimension(L*W*H): | 14600x3300x5300mm | Weight: | 83tons | Certification: | ISO/CE |
Warranty: | ONE YEAR, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
100 Tons Portable Rock Crusher Plant:
Standard Export Container packing
Product Description
Specifications
100 Tons Portable Rock Crusher Plant:1.Incorporated design
2.Quick road transportation
3.With support legs
100 Tons Portable Rock Crusher Plant
Description:
Mobile crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
Characteristics:
1.PE series high performance crusher
2.the integrative feeder and screen
3.the integrative truck loading of belt conveyor, vibrating screen and crusher
4.direction-changing axis of traction for the road transportation convenience and jobsite penetrate deeply
5.truck loading installation supporter for the fast and convenience of equipment residence
6.the integration of truck loading motor and control panel
Mobile crusher plant details:
This series of mobile crusher plant incorporates all the equipments together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor-lorry directly. it can start to work soon even in the bumpy ground without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.
Mobile crusher plant Compatibility:
Mobile crusher plants can work independently or together with other devices according to coarse crusher or fine crusher requirements. Side discharging chute supports more screening and transporting ways. Diesel generators of the incorporated plant can not only supply power for this plant, but also supply power for other plants of the process flow.
Specifications:
Model | YZ938E69 | YZ1149E75 | YZ1349E90 |
Transport Length(mm) | 11900 | 13100 | 14600 |
Transport Width (mm) | 2550 | 2550 | 2950 |
Transport Heigt (mm) | 3650 | 4450 | 4500 |
Length(mm) | 12100 | 13300 | 14600 |
Width(mm) | 2900 | 2950 | 3300 |
Hiehgt(mm) | 4060 | 4810 | 5300 |
Weight(T) | 36 | 57 | 83 |
Rubber tyre | Double shaft | Three shafts | Three shafts |
Crusher model | PE600×900 | PE750×1060 | PE900×1200 |
Max. feeding size(mm) | 480 | 630 | 750 |
Output size(mm) | 65~160 | 80~140 | 95~165 |
Capacity(t/h) | 90~180 | 110~320 | 220~450 |
Feeder model | ZSW380*96 | ZSW490*110 | ZSW490*130 |
Belt model | B800×8.5M | B1000×9M | B1200×9.5M |
Side belt (Optional) | B450×3M | B500×3.5M | B650×4M |
GeneratorKW) | 180 | 220 | 250 |

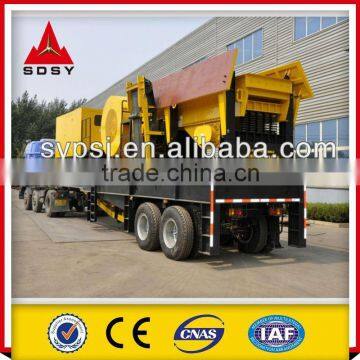

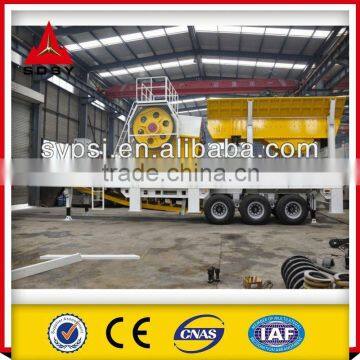

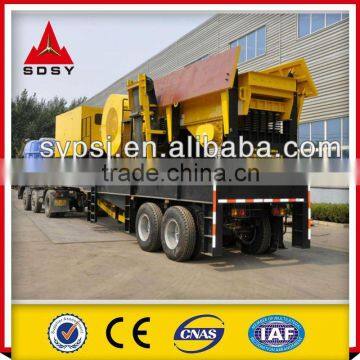

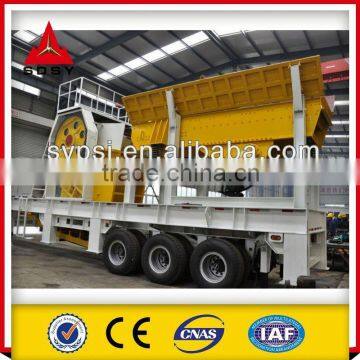

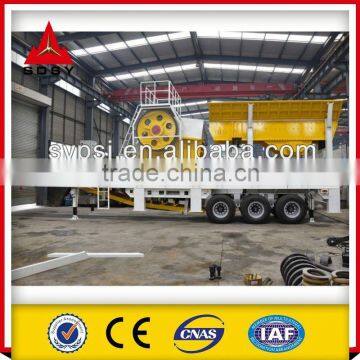

Product Pictures
About Warranty:
Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice and find the solution immediately for you when the machine is in trouble-shoot. For wearing spare parts, we guarantee the high quality parts for long-time supply.
