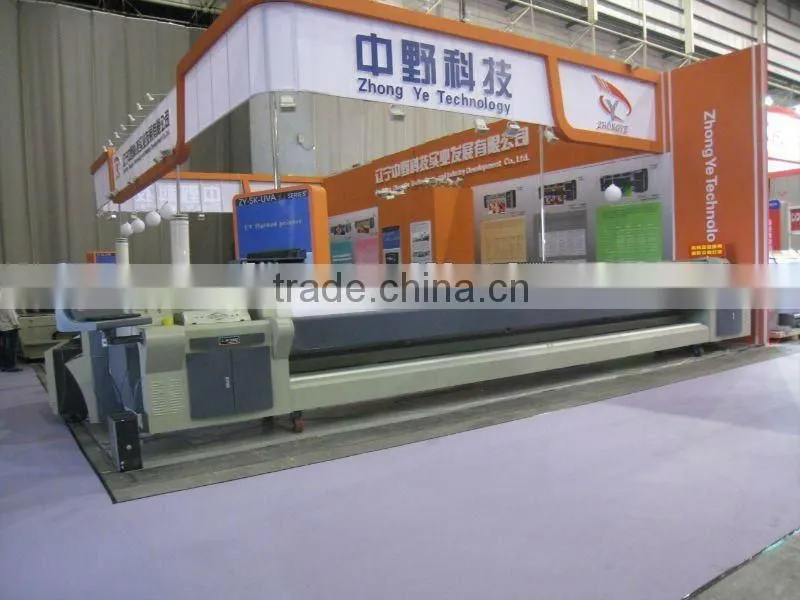

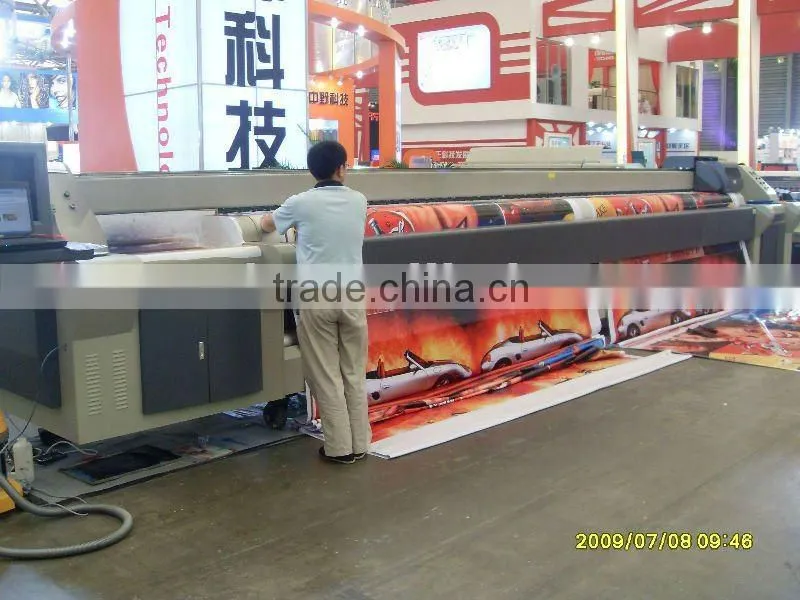

6.8 m giant outdoor banner printer(seiko510 printhead)
USD $40,000 - $60,000
/ Set
1 Set(Min.Order)
- 1 Set / Sets per Month
- Daian
- T/T
You May Like
-
UGS1007 double side seven colors automatic Cloth trademark printer, garment label rotary printing machine price
-
ZXJR 1262 label printing machine
-
ZXJR1221 label offset printing machine
-
Four-Color Double-side High-speed Rotational Belt Printer
-
MY-380F Hualian Solid-Ink Coding Machine
-
MY-420A HUALIAN New Printer Machine
Product Details
| Condition: | New | Plate Type: | Other, large format solvent printing | Place of Origin: | Liaoning, China |
| Brand Name: | Zhongye | Model Number: | ZY-SK6800 | Usage: | Other, vinyl sheet and carpet paper,flex banner, pvc, mesh fabrics.etc advert |
| Automatic Grade: | Automatic | Gross Power: | 50hz/60hz, 220v+-10% >15A | Dimensions(L*W*H): | 8.8m*1.4m*1.5m |
Product Description
Specifications
1,8/12/16(seiko510) print head2, panasonic motor equipped
3, real 1440dpi
outdoor banner printer
Outdoor banner printer
| Name: | SK6800- 510 |
| Class: | SK series |
| Print technology: | Drop-on-demand Piezo electric |
| Printhead: | 4/6/8/12(SPT510) |
| Print width: | 6.8m |
| Resolution: | 1440dpi max |
| Speed: | 2pass 180sqm/h ;4pass 90sqm/h ;6pass 60sqm/h(4/6 heads, half speed) |
| Locating mode: | Raster /servo |
| Color: | CMYK LC LM |
| Media width: | 6.8M |
| Media handle: | Roll to roll |
| Media types: | Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc |
| Ink: | Solvent/two-year outdoor lifetime |
| File format: | TIFF,JPEG,Postscript 3,EPS,PDF |
| Working process: | Printmon software for windows xp |
| Rip: | Photoprint /maintop |
| Power supply: | 50hz/60hz 220v(10%) 20A |
| Operation enviroment: | (Temperature )18-26 (Humidity )40%- 70% |
| Dimesion: | 8.8m*1.4m*1.5m |
| Weig ht: | 1800Kg/2600Kg |
ZY- 5m and 6.8m series Large Format Solvent Printers:Adopting SPT printheads,double servo driver and servo motor system,Negative ink pressure supply system imported from Japanese enable stable ink supply during printing process,widely used for giant format outdoor banner printing.
LIAONING ZHONGYE (ZY) TECHNOLOGY AND INDUSTRY DEVELOPMENT CO., LTD.
162 Huishan St. Huishan Hi-Tech Development Zone Shenyang Liaoning China 110164
Tel: 0086 24 89789511-8015 Fax: 0086 24 89789357
Contact person: eric lee Skype: eric.lee1103 MSN: eric-zhongyetech at
