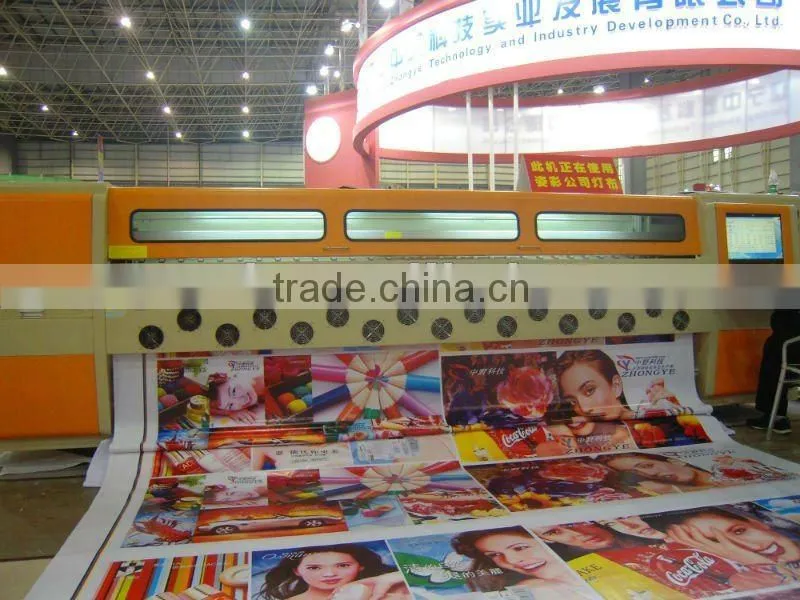

ZY-3400 3.2 m large format solvent printer

Specifications

1, 4/6(spt510/255) print head
2, panasonic motor equipped
3, real 1440dpi

large format solvent printer



Name	3400(4COLORS)
Class	ZY-SK series
Print technology	Drop-on-demand Piezo electric
Printhead	4/6(spt510/255)
Print width	3.2M
Resolution	1440dpi max
Speed	2pass 56m/h ; 4pass 36m/h ; 6pass 24m/h
Locating mode	Raster /servo
Color	CMYK LC LM
Media width	3.2M
Media handl	Roll to roll
Media types	Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc
Ink	Solvent/two-year outdoor lifetime
File format	TIFF,JPEG,Postscript 3,EPS,PDF
Working process	Printmon software for windows xp
Rip	Photoprint /maintop
Power supply	50hz/60hz 220v(10%)20A
Operation environmeng	(Tempperature )18-26(Humidity )40%-70%
Dimesion	5.2m*1.4m*1.5m
Weight	1500Kg/2200Kg

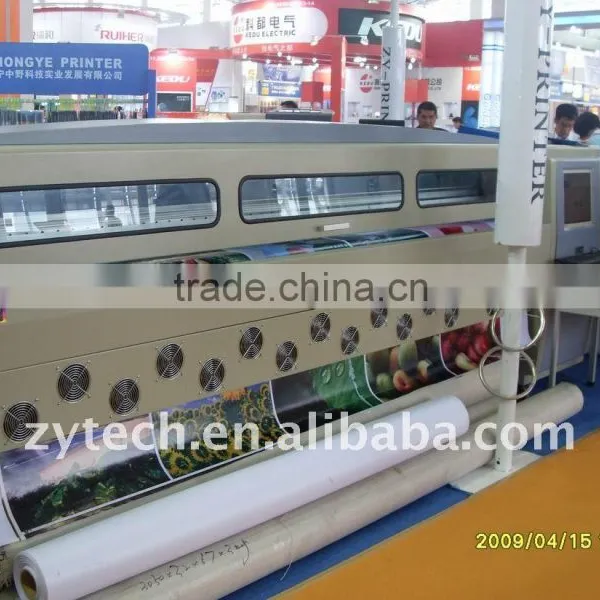

ZY SERIES LARGE FORMAT SOLVENT PRINTER: Adopting SPT printheads. Locating mode is combined with DC motor and raster. This kind of printer is widely used for outdoor printing.It will be your first choice of High-speed & High-resolution pringing with upto 1440 DPI resolution and 90m2/h speed.
Above printing speed is at the basis of 510(180x180 dpi) printheads or Xaar 500 (180x180 dpi) printheads .The printer also can adopt 255 printheads but the printing speed will decrease half.

Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor;
Rail:Japanese THK,Tawinese HWIN;
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system.
