Cs Series Hard Rock Cone Crusher Manufacturer
- 100 Unit / Units per Month
- China Port
- T/T D/P D/A
Product Details
Condition: | New | Type: | Other, Cone Crusher, Stone Crusher Equipment | Application: | Construction waste,mining ore,stone mining,etc., Construction waste |
Motor Type: | AC Motor | Power(W): | from 75kw to 315kw | Capacity(t/h): | 15-1000t/h |
Place of Origin: | Shandong, China | Brand Name: | SDSY | Model Number: | CS Series cs series hard rock cone crusher manufacturer |
Dimension(L*W*H): | Based on the model of stone crusher | Weight: | Based on the model of stone crusher | Certification: | ISO |
Warranty: | One year for main machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
cs series hard rock cone crusher manufacturer:
Export Standard package,or some other package ways according to customers' requirements.
Product Description
cs series hard rock cone crusher manufacturer
CS Stone Crusher Equipment,Rock Cone Crusher, Mining Cone Crusher, Cone Crusher, Stone Cone Crusher
Comparing with other kinds crusher, CS Series spring cone crusher with high-efficiency (Symons cone crusher) have excellences for fine crushing, high productions and low maintenance. The long force arm designed into the Symons cone provides greater crushing force.
Benefits of Stone Crusher Equipment of Cone Crusher:
1. More crushing cavity
2. Dry oil-sealed dust
3. In order to support large efforts in key parts broken selected on a special material
4. High yields
5. low cost of daily operation.
Technical Data of Stone Crusher Equipment of Cone Crusher:
Model | Dia.of cone /mm(inch) | Cavity | Discharge setting(mm) | Capacity (t/h) | Counter shaft (r/min) | Power (Kw) | Weight (T) | Overall dimension |
CSB75 | 900(3’) | Fine | 9-22 | 45-91 | 580 | 75 | 15 | 2812x1880x2614 |
Coarse | 13-38 | 59-163 | ||||||
CSB110 | 1200(4’) | Fine | 9-31 | 63-188 | 485 | 110 | 20 | 2821x1974x2651 |
Medium | 13-38 | 100-200 | ||||||
Coarse | 19-51 | 141-308 | ||||||
CSB160 | 1295(4 1/4’) | Fine | 13-31 | 109-181 | 485 | 160 | 27 | 2800x2342x2668 |
Medium | 16-38 | 132-253 | ||||||
Coarse | 19-51 | 172-349 | ||||||
CSB240 | 1650(5 1/2’) | Fine | 16-38 | 181-327 | 485 | 240 | 55 | 3911x2870x3771 |
Medium | 22-51 | 258-417 | ||||||
Coarse | 25-64 | 299-635 | ||||||
CSB315 | 2134(7’) | Fine | 19-38 | 381-726 | 435 | 315 | 110 | 4613x3251x4732 |

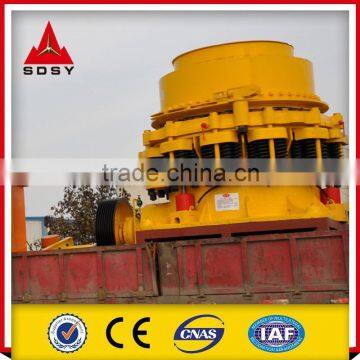

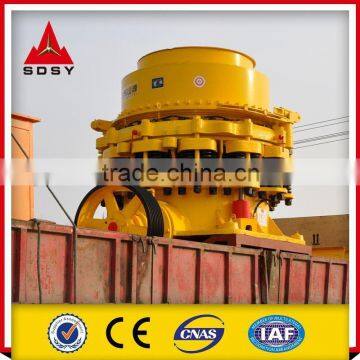

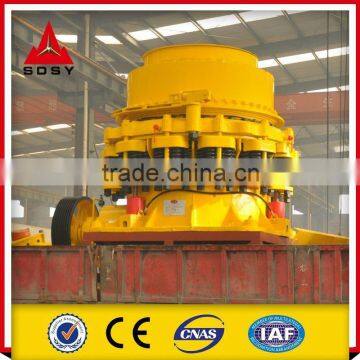

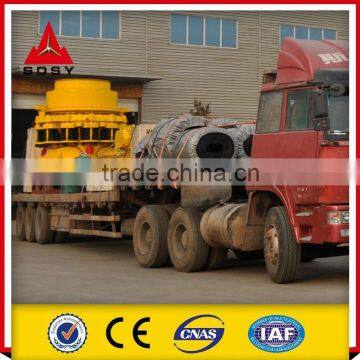

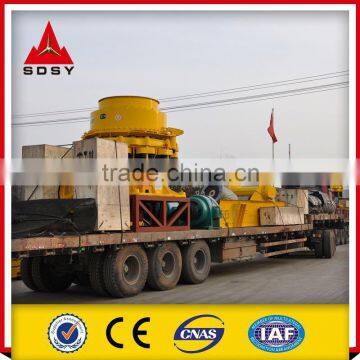

Pictures of Stone Crusher Equipment of Cone Crusher:
cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer
About Warranty:
Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice and find the solution immediately for you when the machine is in trouble-shoot. For wearing spare parts, we guarantee the high quality parts for long-time supply.
Our Services:
1. We guarantee our reply in 24 hours of working day.
2. Our engineers will communicate with our customers in different languages to help them to solve the technical questions and quality issues.
3. Our professional QA people make strict inspection before shipment.
4. Punctual shipment time and good after-sales service will be guaranteed.
Click Here To Visit Our Home Page, And You Will Find More Surprises~
http://sypsj.en.china.cn/
cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer cs series hard rock cone crusher manufacturer
Company Profile
Shandong Chengming Construction Machinery Co., Ltd. is a provincial enterprise with high and new technology, having our complete departments integrating the research, manufacture and sale of series of crushers, matching equipment of crushing stone sieves, as well as the supply of processing, installation and transporting services. Our company is also an enterprise that obeys contracts and emphasizes credit. Our company registered $750,000 as capital, and our sales income comes up to about $750,000. For ten years, taking our enterprise spirit of "good faith, being pragmatic; innovation, development", through persevering efforts, our company has become an important manufacture and export base rapidly.
Based on talents, we develop creatively. There are a number of research elitists in our company. They are respecting their career and are expert at doing it. They also represent the leading level in technology. For years, they devote all their efforts to the absorption and digestion of advanced technique both at home and abroad, improve enterprise's technical and innovative capacity constantly. Our company has formed a product chain firstly based on series of crushers, secondly based on the matching products such as feeding, sizing and others. At present, our main products are PE, PEX series jaws, PF series reaction equipment, WPC, PC series attaching machines, PG2X series rolling machines, CZG, ZSW series feeders, and YZ, ZSB series vibrating screens totally eight series, dozens of specifications of crushing machines, and crushing stone sizing matching products, which are widely used in the fields of mine, building materials, metallurgy, roads and bridges, and energy.
Quality is the life of an enterprise. Our company takes quality as core and has established a series of strict and efficient quality administrative systems to make sure product quality. Our company was assured by ISO9001 in counterparts firstly. In order to promote the principle of "Manufacture, striving for perfection, pursuing consummation", our company adopts new craft, new equipment to make sure high-standard and high-quality products.
Our company obeys the principle of "Take quality as the basis, regard the users as the first importance", emphasizes on the sale on line. "Shan Yuan" brand series of products have very strong competitive advantages in the intensive market both at home and abroad. Putting Customers at the first place, providing satisfactory services for customers, we have no excuse. Our company has a procession with rich experience, exquisite after-sale services, and takes services to accomplish honesty, considering for customers on everything. Our company also provides the most considerate services actively and fast.
Shandong Chengming Construction Machinery Limited Company takes the developing principle of "Shandong Shan Yuan, Being Trustworthy Forever", sticking to taking quality to accomplish brand, taking service to promote brand and creating actively.
We welcome all customers and friends both at home and abroad to give us your presence and guidance sincerely, to accomplish the win-win cooperation.
