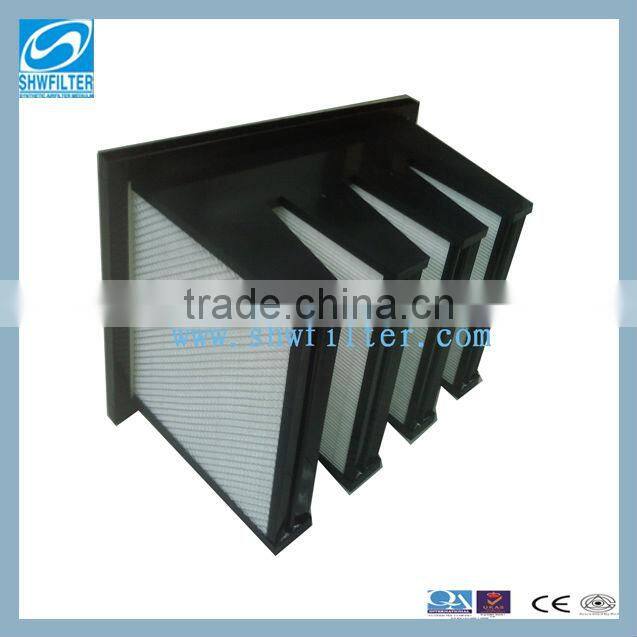

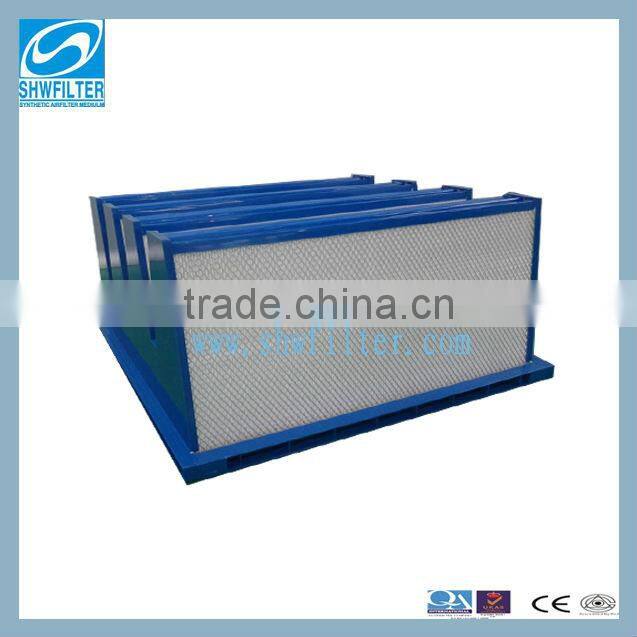

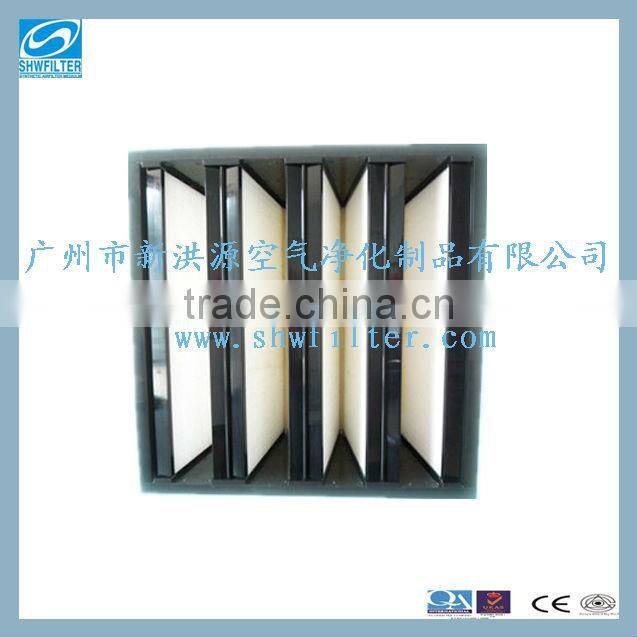

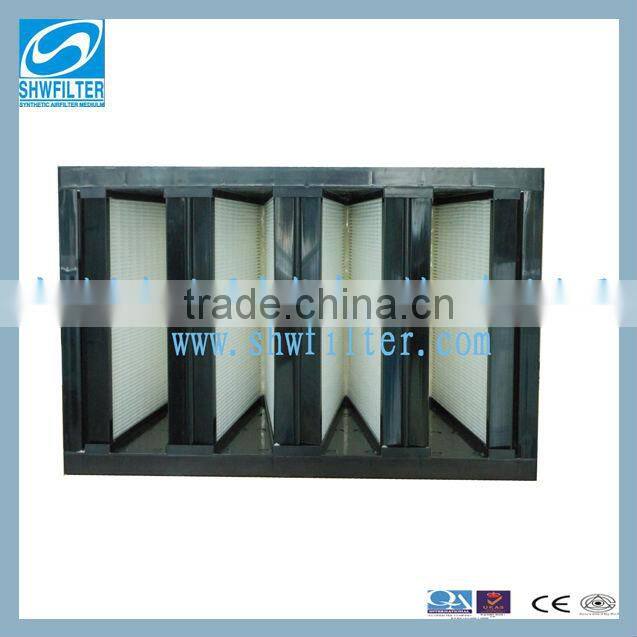

Help CenterPlastic Frame Compact Filter
Related Products
Specifications
Applied to large air flow ventilation system, filtration system of pharmaceutical, food, hospitals, clean room etc.Goods description:
Common Applications: Applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room etc. It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system.
Features: It is a kind of deep loading high efficiency filter, suitable for permanent or impermanent airflow system. It’s constructed to V-type by multiple mini-pleat media, installed in galvanized box or ABS plastic box. Compared with the common filters, it ideally enlarges the filter area, ensuring low media damage and low energy consumption to save cost in the present installation system.
Type | Dimensions W*H*D (mm) | Filter Area (m2) | Structure | Initial resistance & airflow (Pa & m3/h) | ||
F8 | H10 | H13 | ||||
SHW-HV | 287*592*292 | 8.4 | Flanged Type 4V | 68&1200 | 135&1200 | 180&1200 |
90&1600 | 180&1600 | 240&1600 | ||||
592*592*292 | 18.8 | 68&2400 | 135&2400 | 180&2400 | ||
90&3200 | 180&3200 | 240&3200 | ||||
305*610*292 | 13.5 | Box Type 5V | 68&1350 | 135&1350 | 180&1350 | |
90&1800 | 180&1800 | 240&1800 | ||||
610*610*292 | 27 | 68&2700 | 135&2700 | 180&2700 | ||
90&3600 | 180&3600 | 240&3600 | ||||
Plastic Frame Compact Filter
