Specifications
Solvent resistant photo emulsion used for textile printingGood durability of printing
excellent accuracy of stencil making

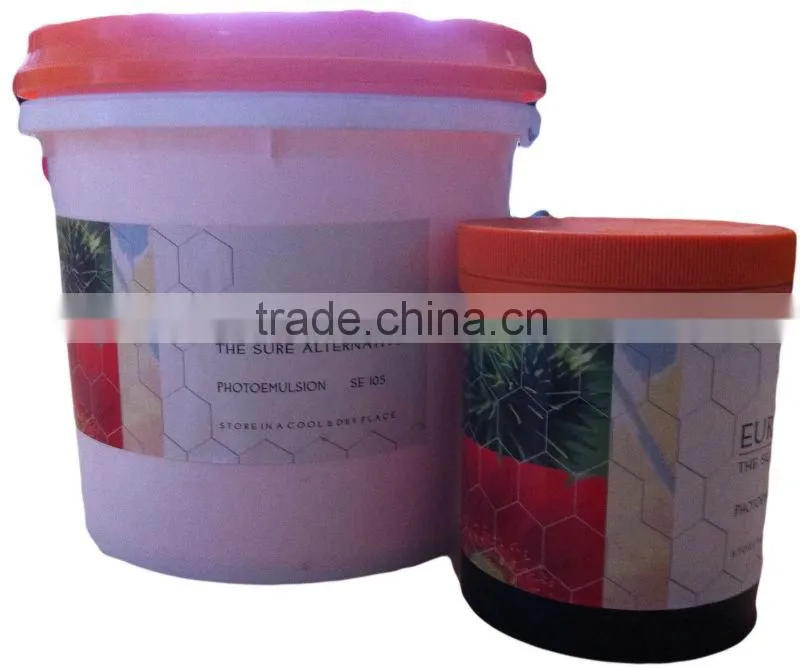

Solvent resistant photo emulsion used for textile printing
Feature:
Solvent resistant blue emulsion for making flat stencil in printing of textiles industry.
Good durability of printing and excellent accuracy of stencil making.
Suitable for screen printing and manual printing machine printing, printing plates reuse.
Use for solvent-based inks, UV curable coating paper, leather, plastic, decoration, glass, ceramics and other printing products.
Application:
Washing the screen:
Before coating must clean the screen plate, use neutral and alkalescence, detergent. Then use clean water wash and make it dry.
Preparing the photosensitive emulsion:
It should be operated under a gentle yellow light (prohibit from operating in no opacifying condition).10ml of SE101-1 photo sensitizer solution is added into 80ml pure water then add 1000g of photo emulsion, stir clockwise until to homogenous, stand for 1~2 hours to let off bubbles in a cool and dark place. Then maintain the prepared photo emulsion at 5~15°C in a constant temperature storage box(a seal cover is needed to avoid skinning)2 weeks.
Coating:
Squeegee the bolting cloth with the photo emulsion 1-2 times, then dried at 35~40°C in an oven with circle wind to 10-15min. Repeat once.
Exposure:
Before exposure, prepare photographic machine platen glass cleaning and checking the printing bolting cloth. Ensure the printing bolting cloth and screen printing surface closely.
Exposure time Reference:
Light |
Power(W) |
Distance(CM) |
Photographic time |
UV |
40 |
15 |
1-2 |
Daylight lamp |
40 |
15 |
4-5 |
Above exposure time just for your reference.
Developing:
Immersing the Photosensitive screen in 5-30 ° C water to bath 1-2min. Then put the screen on the wash shelf until the obvious graphics rendering shown. Washing the screen with pressure of the water to found l a clear graphic outline.
Revised:
Put the screen in 40 °C oven with circulating air to dry. Take out after cooling, then revised the screen and seal the edge.
Curing:
Corrected screen need the secondary exposure. Brush the both side of screen with the stencil hardener then put in 50° C oven 1hour to drying.
Packing: 5kg standard plastic drum, 20kg/case.(With 360Gram sensitizer and 1kgs stencil hardener)
Storage: 5-35°C one year
Non-warranty:
All suggestions and data in this bulletin are base on our present techniques and experiences. However, we don’t rule out this necessary of the prospective user’s experiments also we make no guarantee that the properties of our products are completely perfect or suitable for special use in law.
The users of our products have responsibilities of respecting proprietary rights of our materials , as well as present law.
