Transformer DC Resistance Tester
Product introduction
Winding Resistance Ohmmeter is a very important test project. In the "electrical equipment test procedures", it ranks second in transformer test project. "Electrical equipment test procedures" provides that it is necessary to measure the DC resistance of transformer windings during transformer transfer, heavy maintenance, light maintenance, changing tap joint position, troubleshooting and pre-test, which aims to:
1)Check the welding quality of lead and down-lead within the winding;
2)Check whether the contact of each tapping switch position is good;
3)Check whether the winding or down-lead is broken
4.Check whether the parallel branch is correct and whether the winding winded by several parallel wires has one or several disconnection;
5)Check whether layer or inter-turn is short circuit
6)Alternative Name:DC resistance tester , DC resistance rapid tester, transformer DC resistance tester.
Product parameters
1. Measurement Range:
Measurement Range: 0~2000Ω(Total six ranges)
Measurement current:5A(20mΩ~2Ω); 0.5A(20Ω); 0.05A(200Ω); 0.005A(2000Ω
Maximum Resolution: 1μΩ(20mΩranges); 10μΩ(200mΩranges); 0.1mΩ(2Ωranges)
1mΩ(20Ωranges); 10mΩ(200Ωranges); 0.1Ω(2000Ωranges)
Accuracy: 1mΩ~2000Ω ( ±0.5 % RDG +2 d )
Power Dissipation:≤100W
Work Environment:Temperature: 0°C~40°C; Relative Humidity≤ 85 % RH
Power supply: AC220V 50 HZ (±10 %)
Dimension:350mm(L)× 260mm(W)× 140mm(D)
Instrument Weight:3kg

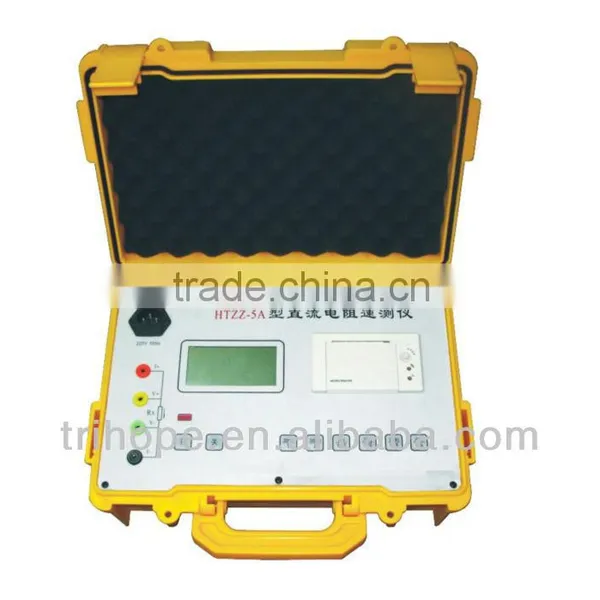

2. Appearance:
1 |
LCD Display |
6 |
Printer |
2 |
Test button C1 |
7 |
Operating key |
3 |
Test button P1 |
8 |
Power Switch |
4 |
Test button P2 |
9 |
220V Power Jack |
5 |
Test button C2 |
10 |
Ground button |
