STI3-2&160-4000 Gantry Welding Machine

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	SENERCE
Model Number	Gantry welding machine

Product Description

PRODUCT INTRODUCTION

STI3-2×160-4000 Gantry welding machine Features:

1.STI3 series gantry welding machine control system :microcomputer control ,can store 15 sets welding procedures which can be adjust independently ,very easy to achieve .

2.Single or multiple electrode welding parameters independently adjusted to achieve different sizes ,different shapes of products welding .

3.Users can edit their own action sequence and the cylinder moves the cylinder number and the corresponding welding specifications ,welding of different products to achive.

4.Large screen display intuitive and clear .

5.Date set and adjusted by touch switch ,easy and fast .

6.STI3 series gantry welding machine control system .Data adjustments and settings can additionally equipped with touch screen to operate .

Technical parameter:
Item	Rated capacity	Rated primary voltage	Rated frequency	Max short circuit current	Duty cycle	Max. pressure	Upper electrode stroke	Lower electrode stroke	cooling water flux	electrode width	Maximum effective welding width
Type	KVA	V	Hz	A	%	N	mm	mm	L/min	mm	mm
STI3-2*100-C	2*100	380	50	30000	20	5315	60	40	6	90	C(800-4000)
STI3-2*150-C	2*150	380	50	36000	20	5315	60	40	6	90	C(800-4000)
STI3-2*200-C	2*200	380	50	42000	20	5315	60	40	6	90	C(800-4000)
Note:the above data are only for reference

Contour dimension:
Item	A	B		C	D	E
Type	A	100K	150,200K	C	D	E
STI3-2*P-800	2160	720	750	800	1900	965
STI3-2*P-1000	2360	720	750	1000	1900	965
STI3-2*P-1200	2560	720	750	1200	1900	965
STI3-2*P-1400	2760	720	750	1400	1900	965
STI3-2*P-1600	2960	720	750	1600	1900	965
STI3-2*P-1800	3160	720	750	1800	1900	965
STI3-2*P-2000	3360	720	750	2000	1900	965

COMPANY AND FACTORY

Shanghai TRIHOPE International Co., Ltdwas registered in Shanghai China in the year of 2003. Its total investment is about USD 2 Million. Being a professional foreign trading company, TRIHOPE is also the marketing institute of its sister company M/s SENERGE Electric Equipment Co., Ltd,which is a professional equipment manufacturer.
SENERGE Electric Equipment Company (SENERGE) was established in 2009, located in Shanghai Zhang Jiang Pinghu Hi-Tech Zone. The total investment of SENERGE is more than 5 million USD. SENERGE has full range of good machines and tools to ensure its machining process and offer customer good quality products.

OUR TEAMMATES

Chen Jiabing (Chief Designer)

More than 35 years working experience of design and manufacturing in transformer industry. Served as tranformer and transformer equipment design and technology in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.

Wei Wang (Chief Production Officer)

With 35 years working experience in transformer industry. Served as transformer manufacturing in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.

Wang Daming ( Chief Service Officer)

Master degree of enigneering. 25 years working experience. Once worked in Pakistan, Indonesia overseas factories; visited nearly 40 countries, traveling throughout Africa, South America, America, Oceania, Asia and other places, with a wealth of experience working overseas.

SENERGE Electric Equipment Co.,Ltd has established the R&D Center with collaboration Shandong University and it is the practice base Graduate students of Shandong University Science Engineering college. The R&D Center keep studying and researching the advanced technology and development of transformer and power equipment industry.

FACTORY EQUIPMENT

CERTIFICATE

We have passed GB/T19001-2008/ISO9001:2008, CE and other Certification.And focus on design, development and manufacture of SPM machines for Transformer and other power industry. It can provide full support in technology and manufacturing process for Transformer and other electric products manufacturers.

EXHIBITIONS

We are participating worldwide professional exhibitions of power industry,like Mee in Dubai.In the past 12 years,Trihope built up strong long term relationship with many companies in Turkey ,Mexio ,Saudi,Arabia,India,Pakistan,Bangladesh,Turkey, Philippines ,Vietnam ,Malysia ,Thailand etc.

CUSTOMER REFERENCE

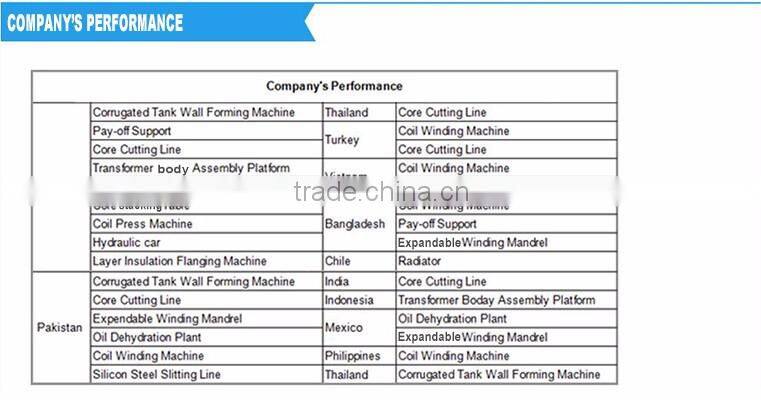

COMPANYS PERFORMANCE
