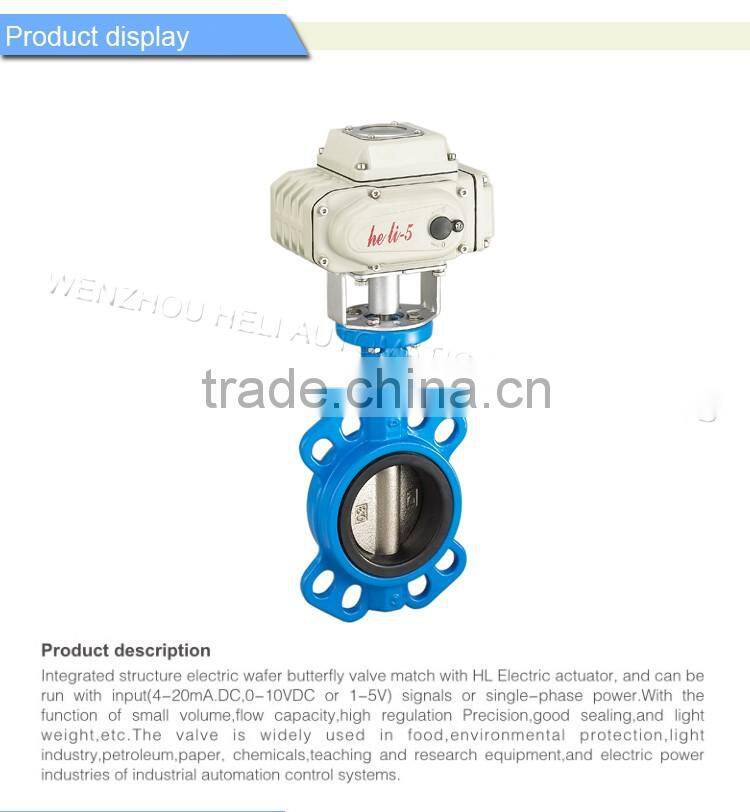

Direct installation butterfly valve actuator

          Model

Performance

                     HL-05

Voltage

DC12V

DC24V

DC220V

AC24V

AC110V

AC220V

AC380V

Motor Power

                 10W,20W

Rated current

3.8A

2A

0.21A

2.2A

0.48A

0.24A

0.15A

Output torque

 30N.m/50N.m

      15N.m/30N.m/50N.m

Action time

    6S/10S

        10S/20S/30S

Rotary angle

                 0~90°

Weight

                 2.2kg

Voltage-with standing valve

       500VAC/1minute

1500VAC/1minute

Insulated resistance

       100 MΩ/300VDC

      100 MΩ/500VDC

Protection Class

                        IP67

Surrounding temperature

  -25°C~60°C(The other temperatures can be customized)

Installation angle

                     Any angle

Case material

              Aluminium-casting components

Optional function

             Overload protection function, Heater
