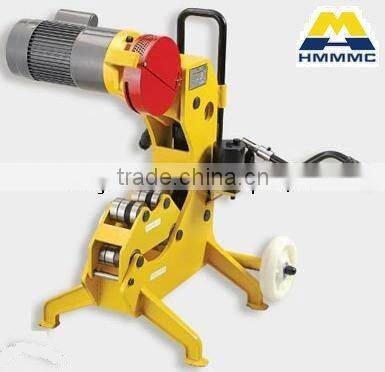

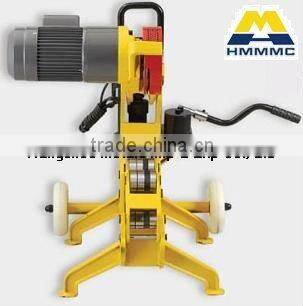

Help CenterPipe Cutting Machine
Related Products
Specifications
pipe cutting machinecapacity:2''-12''Steel pipe
max wall thickness:10mm
output RPM:23r/m
Specification:
1.Capability: 2''-12'' Steel pipe
2.Max Wall Thickness: 10mm
3.Output RPM: 23r/m
4.Three phase motor: 110-415V750w/50-60Hz
Single phase motor: 110-240V/750w-1100w/50-60Hz
5. Weight: 106/108KGS
6. Package Size:780*720*980MM
Standard Configuration:
1. Steel pipe support---1 pc
2. Alloy blade---1pc
Remark:
1. The whole construction allows quick change
2. The cutting scope while using supporting roller on cam holder:2''-6''
3. The cutting scope while using supporting roller on main unit:8''-12''
1. this machine is applicable for cutting 2''-12'' pipe of 10mm. the oil pump is particularly designed to shorten the ideal stoke and reduce the cuttime time.
2. a 4'' pipe can be cut within 60 seconds by only one person. the cut steel pipe has cleam and tidy end, no sparks, dusts and dangerous metal chips sre produced in the process of cutting.
3. it is with human-friendly wheel to allow easy moving
Details:
