Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > Pipe Cutting Machine
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Pipe Cutting Machine
Pipe Material:
Carbon Steel
Application:
Drain Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pipe Groove Cutting MachineNegotiableMOQ: 2 Sets -
Pipe Groving Machine (2''-12'') Round Corner MachineNegotiableMOQ: 2 Sets
-
Pipe Groving (1''-4'') Blade Saw Metal MachineNegotiableMOQ: 2 Sets
-
Electric Rolling MachineNegotiableMOQ: 2 Sets
-
Pipe Groving Machine (2''-6'') Bender Machine PortableNegotiableMOQ: 2 Sets
Type
Pipe Cutting Machine
Pipe Material
Carbon Steel
Application
Drain Pipe
Place of Origin
Zhejiang, China
Brand Name
HM
Model Number
TWQ-4A
Specifications

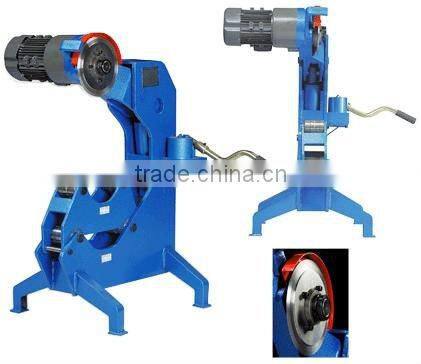

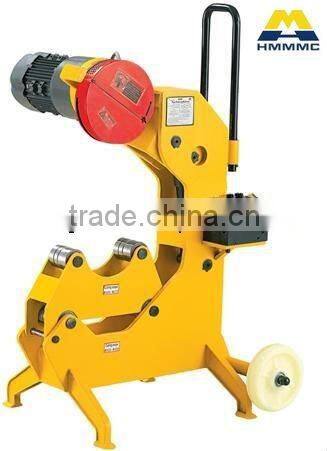

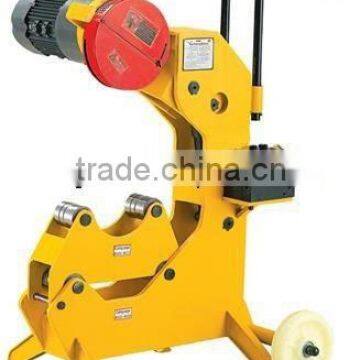

type:Pipe cutting machine1.capacity:6''-16'' or 8''-20''steel pipe
2.max. wall thickness:12mm
3.output RPM:23R/M
sepcification:
1.capacity:6''-16'' or 8''-20''
2.max. wall thickness:12mm
3.output RPM:23R/M
4.Three phase motor: 110-415V/750w/50-60Hz
Single phase motor: 110-240V/750w-1100w/50-60Hz
5. Weight: 120/122KGS
6. Package Size:850*720*1100MM
Standard Configuration:
1. Steel pipe support---1 pc
2. Alloy blade---1pc
Remark:
1. this machine is applicable for cutting 6''-16'' and 8''-20'' steel pipe of 12mm wall. Totally two specification for options of users.
2. Equipped with high-performance gear reducing motor to power the hydraulic system which drives the heavy-load blade to cut the pipe neatly.
3.a man can cut a steel pipe within several minutes with neat square or chamfered cutting edge.
