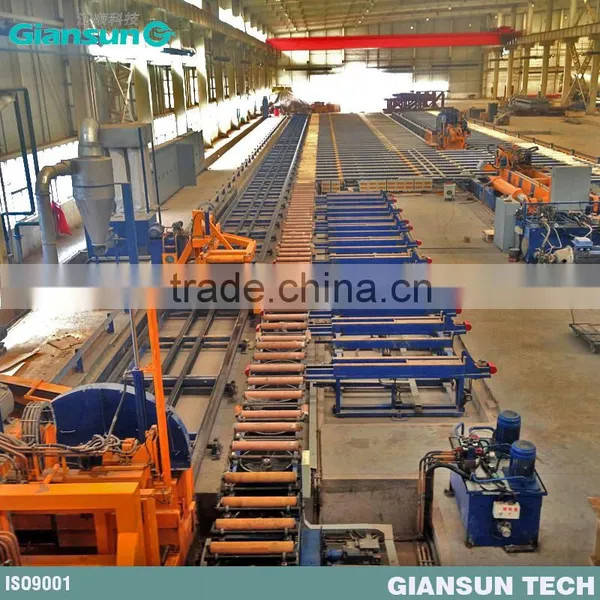

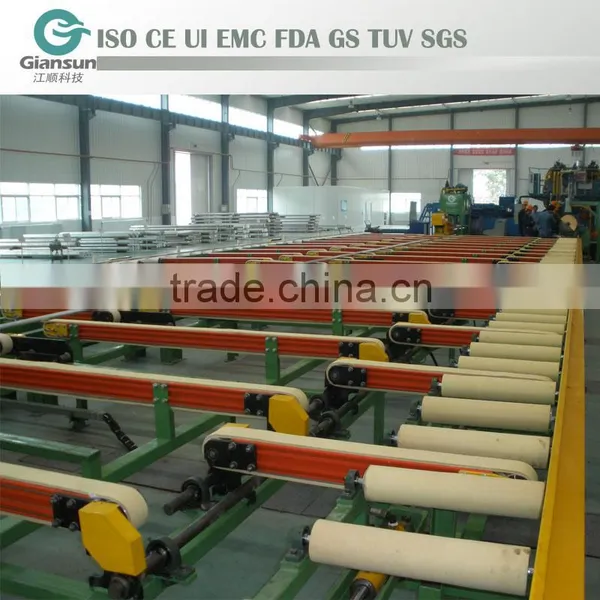

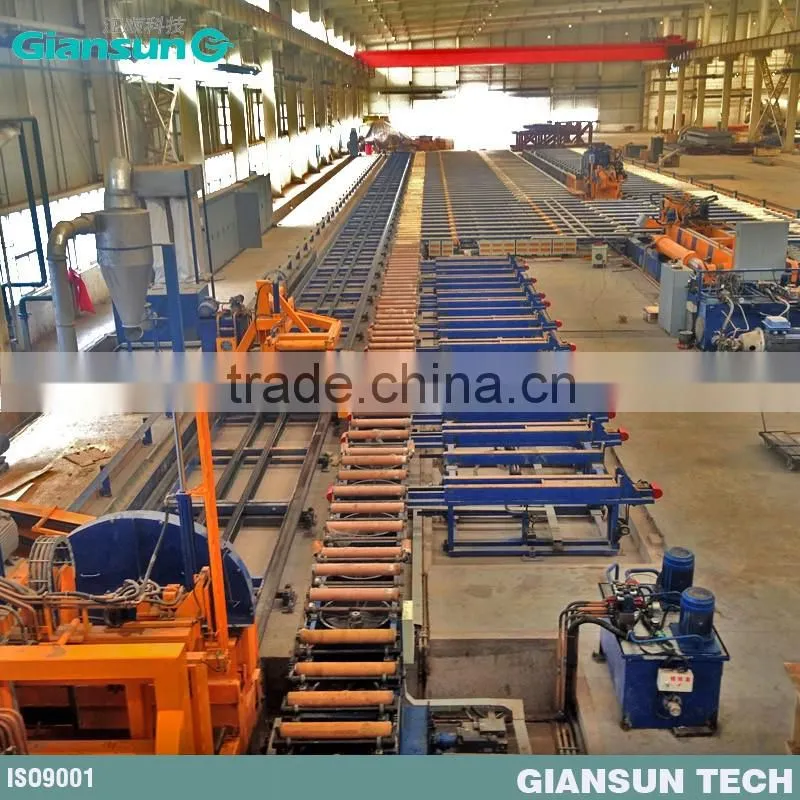

Four-level belt type handling table/Aluminum Extrusion Handling Table Puller/ Aluminum profile Handling Table/cooling table
Specifications and Structures for Four-level belt type handling table(26+7)X6M for 630 650 ton aluminum extrusion plant (as an example)
1 Main parameters:
Dimension: (26+7)*6m.
Max Sizing length: 6000mm.
Width of the conveyor belt: 60mm.
Total install power: 35KW.
Air compression: 0.75m³/H.
2 Air cooling system
centrifugal fans over the initial table.
axial fans under the initial table.
3 Initial table-Length 7m.
Roller: The high temperature resistant roller.
4 Run out table
Motor:Motor drive for forward 12m.
Roller: The high temperature resistant roller.
5 Catching table
4.5.1 Type: Felt Belt Conveyor.
4.5.2 Span: 1200mm.
4.5.3 Fitted with 32 sets of heat resistant felts (width:60mm, thickness:10mm).
4.5.4 Motor power:2.2 KW
6 Cooling table
Type: Felt Belt Conveyor.
Fitted with heat resistant felts
Distance between the profiles can be adjusted, to avoid scratch.
7 Stretcher table
Type: Felt Belt Conveyor.
Fitted with middle temperature resistant felts
8 Stretcher(20 tons)
Stretch length: Max-26m, Min-6m.
Max clamp width: 150mm.
Max clamp height: 90mm.
Hydraulic clamp control system,and the tail clamp is controlled by the hydraulic motor.
9 Profile store table
Type: Rack and pinion driven system.
Fitted with low temperature resistant felts.
Distance between the profiles can be adjusted, to avoid scratch.
10 Profile saw table
Motor:Power drive machine
11 Profile Saw
Automatically lubricated.
Fitted with chip recycle device.
Structure:Linear actuator walking guide, with high precision, low maintenance.
12 Saw Gauge Table
Type:Rack and pinion driven system.
13 Electric parts
PLC: Mitsubishi.
Adopt Schneider for the main electric components.
