Hydraulic Oil Cylinder With Cost Price
US$ 21 - 555
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-way Hydraulic Cylinder With Cost PriceUS$ 21 - 555MOQ: 1 Piece -
100 Ton Hydraulic Cylinder for SaleUS$ 21 - 555MOQ: 1 Piece
-
Roll Bending Machine With Cost PriceUS$ 635 - 667MOQ: 1 Piece
-
Hand Operated Pipe Bending Machine With Cost PriceUS$ 635 - 667MOQ: 1 Piece
-
3-roll Pipe Bending Machine With Cost PriceUS$ 635 - 667MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Piston Cylinder
Power
Hydraulic
Body Material
Steel
Maximum Stroke
300mm
Place of Origin
Zhejiang, China
Model Number
RR
Brand Name
HM
high quality hydraulic oil cylinder
Product Description

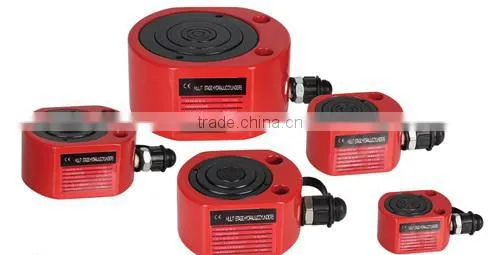

1.Low height hydraulic cylinder:
1>LIght weight and low profile design for use in confined spaces.
2>The surface of plunger is finished with chrome plate to protect the using of longevity of the cylinder.
3>Plunger has the function to retracting automatically
2>The surface of plunger is finished with chrome plate to protect the using of longevity of the cylinder.
3>Plunger has the function to retracting automatically
| Model | Tonnage (T) | Stroke | OIL Capacity (cc) | Matching pump | Closed height | Weight | Volume |
| (mm) | (mm) | (kg) | (cm) | ||||
| FPY-101 | 10 | 11 | 16 | CP-700C | 50 | 1.5 | 15x6.5x5 |
| FPY-201 | 20 | 12 | 34 | CP-700C | 57 | 2.6 | 16.5x8.5x6 |
| FPY-301 | 30 | 14 | 58 | CP-700C | 62 | 4.2 | 18.5x10x6.5 |
| FPY-501 | 50 | 16 | 102 | CP-700C | 72 | 6.8 | 21x12x7.5 |
| FPY-1001 | 100 | 16 | 200 | CP-700B | 92 | 14 | 25x17x10 |
2. Multi-stage hydraulic cylinders
1> The tightly packed flat even essence height but biggest attain a crest to rise distance gravity return journey.
| Model | Tonnage (T) | Stroke | OIL Capacity (cc) | Matching pump | Closed height | Weight | Volume |
| (mm) | (mm) | (kg) | (cm) | ||||
| FPY-10 | 10 | 25 | 22 | CP-700C | 50 | 1.5 | 15x6.5x5 |
| FPY-20 | 20 | 26 | 41 | CP-700C | 57 | 2.8 | 16.5x8.5x6 |
| FPY-30 | 30 | 53 | 67 | CP-700C | 62 | 4.1 | 18.5x10x6.5 |
| FPY-50 | 50 | 64 | 113 | CP-700C | 72 | 6.8 | 21x12x7.5 |
| FPY-100 | 100 | 68 | 225 | CP-700B | 92 | 14.5 | 25x17x10 |

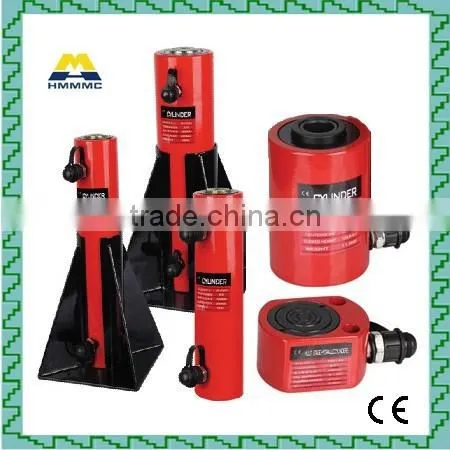

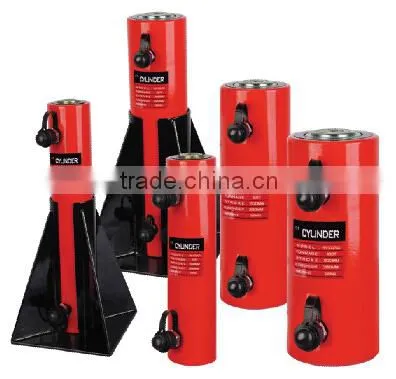

3. Double acting hydraulic cylinder
1> Double-acting allowing for both push and pull forces.
2> Surface coating resists corrosion.
| Model | Tonnage (T) | Stroke (mm) |
Matching pump | Closed height (mm) |
WEIGHT (kg) |
CARTON OR PLYWOOD CASE (cm) |
| RR-10250 | 10 | 250 | CJB-630B | 405 | 10 | 42x12x14 |
| RR-10300 | 10 | 300 | CJB-630B | 455 | 11.4 | 47x12x14 |
| RR-20250 | 20 | 250 | CJB-630B | 405 | 13 | 42x13x15 |
| RR-20300 | 20 | 300 | CJB-630B | 455 | 15 | 47x13x15 |
| RR-30200 | 30 | 200 | CJB-630B | 390 | 18 | 43x14x16 |
| RR-30300 | 30 | 300 | CJB-630B | 490 | 22 | 53x14x16 |
| RR-50200 | 50 | 200 | CJB-630B | 390 | 29 | 44x15x17 |
| RR-50300 | 50 | 300 | CJB-630B | 490 | 36 | 54x15x17 |
| RR-100200 | 100 | 200 | CJB-630B | 390 | 52 | 46x19x20 |
| RR-100300 | 100 | 300 | CJB-630B | 490 | 58 | 56x19x20 |

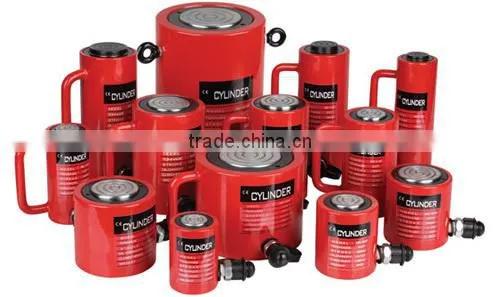

4.hydraulic cylinder
| model | tonnage(T) | stroke(mm) | oil capacity(cc) | matching pump | closed height(mm) | weight(kg) | volume(cm) |
| RSC-1050 | 10 | 50 | 72 | CP-700C | 100 | 2.5 | 14*7.5*10 |
| RSC-10100 | 10 | 100 | 145 | CP-700C | 150 | 4 | 15*10.5*15 |
| RSC-10150 | 10 | 150 | 217 | CP-700C | 225 | 6 | 13.5*10.5*23.5 |
| RSC-2050 | 20 | 50 | 141 | CP-700C | 106 | 4 | 15.5*10*10.5 |
| RSC-20100 | 20 | 100 | 282 | CP-700B | 167 | 8 | 18.5*13*18 |
| RSC-20150 | 20 | 150 | 423 | CP-700B | 230 | 9.2 | 16.5*13*24.5 |
| RSC-3050 | 30 | 50 | 210 | CP-700C | 110 | 5.5 | 16.5*11*11 |
| RSC-30100 | 30 | 100 | 418 | CP-700B | 168 | 9 | 19*14*17.5 |
| RSC-30150 | 30 | 150 | 627 | CP-700A | 235 | 12 | 16*14*24 |
| RSC-5050 | 50 | 50 | 318 | CP-700B | 115 | 8 | 18*13*11.5 |
| RSC-50100 | 50 | 100 | 635 | CP-700A | 175 | 12 | 20*16*19 |
| RSC-50150 | 50 | 150 | 953 | CP-700A | 245 | 16.4 | 18*16*26.5 |
| RSC-10050 | 100 | 50 | 623 | CP-700B | 138 | 21 | 22*21*15 |
| RSC-100100 | 100 | 100 | 1246 | CP-700A | 235 | 35.5 | 23*23*28 |
| RSC-100150 | 100 | 150 | 1869 | CP-700A | 285 | 41.5 | 23*23*33 |
| RSC-20050 | 200 | 50 | 1280 | CP-700A | 185 | 57 | 33*29*22 |
| RSC-200100 | 200 | 100 | 2543 | CP-700A | 235 | 70 | 33*29*27 |
| RSC-200150 | 200 | 150 | 3810 | CP-700A | 285 | 83 | 33*29*32 |
| RSC-30050 | 300 | 50 | 2260 | CP-700A | 267 | 126 | 40*37*30 |
| RSC-300100 | 300 | 100 | 4570 | CP-700A | 317 | 145 | 40*37*35 |
| RSC-300150 | 300 | 150 | 6783 | CP-700A | 367 | 165 | 40*37*40 |

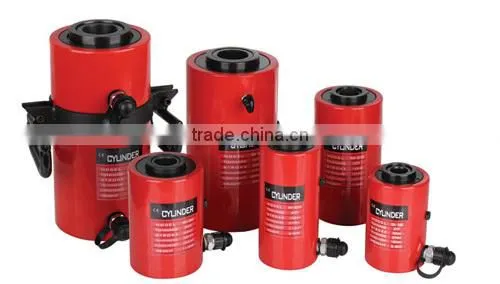

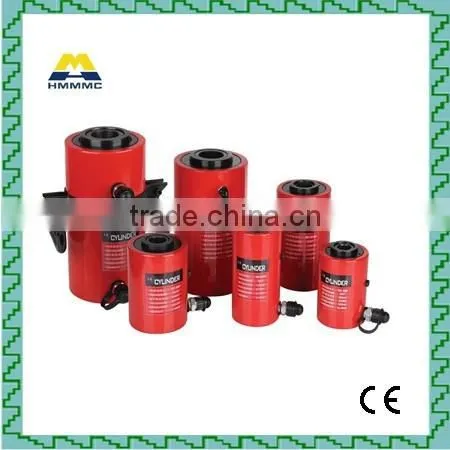

5. Hollow plunger hydraulic cylinder
1> Hollow plunger design allows for both push and pull forces.
2> Plunger has the function to retracting automatically.
3> Prevent rust with grill lacquer.
| Model | tonnage (T) | Stroke(mm) | Certer bore (MM) | Closed Height (MM) |
Volume(cm) | Weight(Kg) |
| RCH-2050 | 20 | 50 | 27 | 160 | 18*13*18 | 8.4 |
| RCH-20100 | 20 | 100 | 27 | 210 | 16*14*24 | 9.5 |
| RCH-3050 | 30 | 50 | 32 | 180 | 20*16*19 | 11.2 |
| RCH-30100 | 30 | 100 | 32 | 230 | 16*14*24 | 14.4 |
| RCH-6050 | 60 | 50 | 53 | 245 | 23*23*28 | 30.5 |
| RCH-60100 | 60 | 100 | 53 | 295 | 23*23*33 | 36 |
| RCH-10075 | 100 | 75 | 80 | 255 | 29*29*29 | 54.5 |

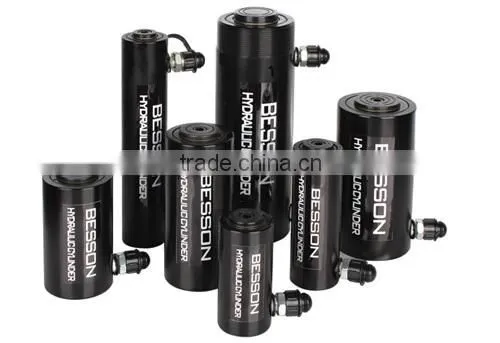

6. Aluminum hydraulic cylinder
| Model | tonnage (T) | Stroke(mm) | Certer bore (MM) | Closed Height(MM) | Volume(cm) | Weight(Kg) |
| RCH-2050 | 20 | 50 | 27 | 160 | 18*13*18 | 8.4 |
| RCH-20100 | 20 | 100 | 27 | 210 | 16*14*24 | 9.5 |
| RCH-3050 | 30 | 50 | 32 | 180 | 20*16*19 | 11.2 |
| RCH-30100 | 30 | 100 | 32 | 230 | 16*14*24 | 14.4 |
| RCH-6050 | 60 | 50 | 53 | 245 | 23*23*28 | 30.5 |
| RCH-60100 | 60 | 100 | 53 | 295 | 23*23*33 | 36 |
| RCH-10075 | 100 | 75 | 80 | 255 | 29*29*29 | 54.5 |
7. Safety locknut hydraulic cylinder
1>Plunger has the function to retracting automatically.
2>Surface coating resists corrosion.
3>Safety lock nut for safe operation.
| Model | Tonnage(T) | STROKE(MM) | Matching pump(KG) | Closed height(mm) | Weight(kg) |
| CLL-1050 | 10 | 50 | CP-700C | 160 | 5 |
| CLL-10100 | 10 | 100 | CP-700C | 210 | 6.5 |
| CLL-10150 | 10 | 150 | CP-700C | 260 | 8 |
| CLL-2050 | 20 | 50 | CP-700C | 160 | 7.5 |
| CLL-20100 | 20 | 100 | CP-700C | 210 | 9.5 |
| CLL-20150 | 20 | 150 | CP-700B | 260 | 13 |
| CLL-3050 | 30 | 50 | CP-700C | 160 | 9.7 |
| CLL-30100 | 30 | 100 | CP-700B | 210 | 12 |
| CLL-30150 | 30 | 150 | CP-700B | 260 | 17 |
| CLL-5050 | 50 | 50 | CP-700B | 160 | 15 |
| CLL-50100 | 50 | 100 | CP-700A | 210 | 20 |
| CLL-50150 | 50 | 150 | CP-700A | 260 | 25 |
| CLL-10050 | 100 | 50 | CP-700B | 187 | 31 |
| CLL-100100 | 100 | 100 | CP-700A | 237 | 39 |
| CLL-100150 | 100 | 150 | CP-700A | 287 | 47 |
| CLL-15050 | 150 | 50 | CP-700A | 209 | 54.5 |
| CLL-150100 | 150 | 100 | CJB-630A | 259 | 66 |
| CLL-150150 | 150 | 150 | CJB-630A | 309 | 79 |
Company Information
Certifications
FAQ
Q1: What certificate do you have?
A. We have ce certificate.
