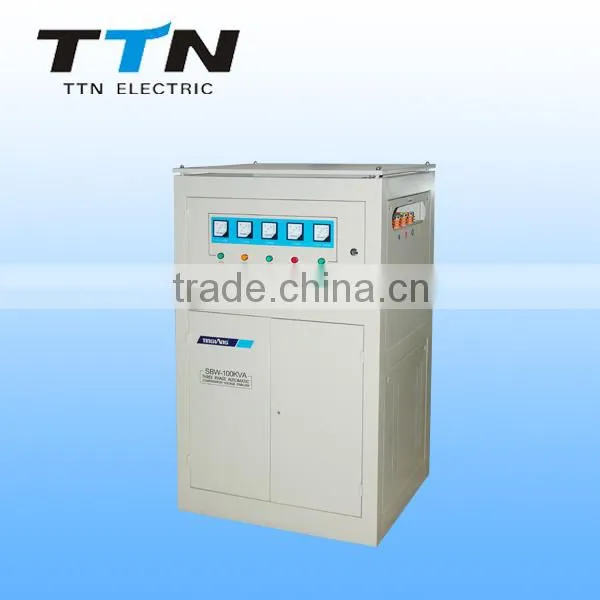

SBW-Fully Automatic A.C. Voltage Regulator 50-2000 KVA

US$ 980 - 9,638 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

TTN

Model Number:

SBW

Zhejiang TTN Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TTN

Model Number SBW

Usage SVC

Phase Three Phase

Current Type AC

Specifications

SBW-50K-2000K Three Phase Voltage Regulator

MODEL	SBW-50KVA		SBW-75KVA	SBW-100KVA	SBW-150KVA	SBW-200KVA
	SBW-250KVA		SBW-320KVA	SBW-400KVA	SBW-500KVA	SBW-600KVA
TECHNOLOGY	SERVO MOTOR CONTROL SYSTERM
DISPLAY	METER	A/B/C PHASE INPUT VOLTAGE
		A/B/C PHASE OUTPUT VOLTAGE
		A PHASE OUTPUT CURRENT
		B PHASE OUTPUT CURRENT
		C PHASE OUTPUT CURRENT
	Light	Green		A PHASE WORKING INDICATOR
		Green		B PHASE WORKING INDICATOR
		Green		C PHASE WORKING INDICATOR
		Green		INPUT WORKING INDICATOR
		Green		INPUT WORKING INDICATOR
	Language	English/Russia/Chinese
Input Voltage	Single phase:175V-265V Three phase four-line 175V-265V(phase voltage)300V-465V (line voltage) 154V-286V(phase voltage) 270V-490v(line voltage)
Output Voltage	Single phase 220V(Adjustable) three phase 380V(adjustable)
Frequency	50Hz/60Hz
Phase	Thee phase
Efficency	≥90%
Ambient Temperature	-15°C-45°C
Relative humidity	<95%
Waveform distortion	No additional wave from distortion
Insulation resistance	Normally more than 2MΩ
Power	50KVA		75KVA	100KVA	150KVA	200KVA
Packing size(cm)	5062135		5062135	8562150	10072170	10072200
Packing (pcs)	1		1	1	1	1
G.M(KGS)
Power	250KVA		320KVA	400KVA	500KVA	600KVA
Packing size(cm)	11080200		11080210	200160420	200160420	200160420
Packing (pcs)	1		1	1	1	1
G.M(KGS)
