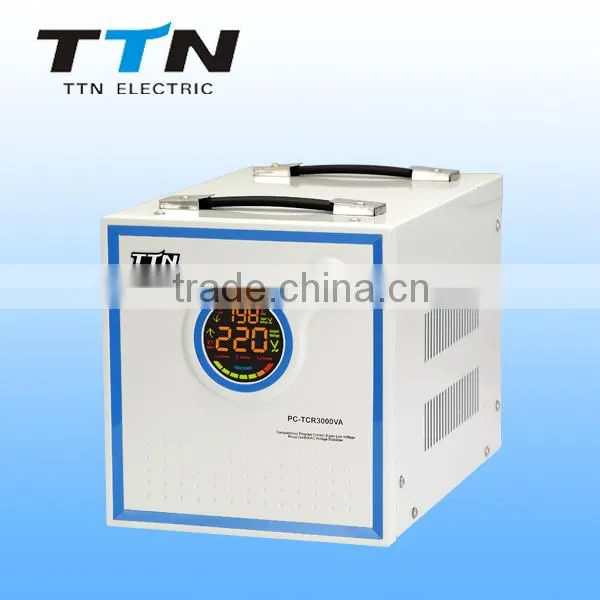

Voltage Stabilizer Home Appliance

FOB Price

US$ 130.05 - 195.35 / Piece

200 Pieces(Min. Order)

Port Ningbo
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	TTN
Model Number	PC-SCR	Usage	Other
Phase	Single Phase	Current Type	AC

Product Description

PC-SCR series Triac control voltage stabilizer has the low energy consumption,the over voltage protection,the low voltage protection,the over-current protection,the over-loading protection,the over-temperature protection and so on.It boasts for many kinds of protections,the collection energy conservation and the environmental protection ect.This is a brand-new concept product which possess many new technologies!This series products simultaneously ha applied for many technical monopolies

We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1 and Appearance paten NO: 200730025909.3

2. Use for equipment:

Computer

Test equipment

Light system

Safe alarm system

Ray equipment

Medical equipment

Copy machine

Stereo equipment

Numerical control machine tools

Industrial automation equipment

Color and drying equipment

Test equipment

Hi-Fi equipment

3. PERFORMANCE

MODEL	PC-SCR500VA			PC-SCR800VA	PC-SCR1000VA		PC-SCR1500VA	PC-SCR2000VA
	PC-SCR3000VA			PC-SCR5000VA	PC-SCR8000VA		PC-SCR10000VA	PC-SCR12000VA
TECHNOLOGY	TRIAC CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL
LED DISPLAY	INFORMATION	INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION
	PROTECTION	Over Voltage				Output Voltage≥243±4v
		Low Voltage				Output Voltage≤188v±4v
		Over Loading				More Than 120%
		Over Temperture				120°C±10°C
		Delay Time				Long time(255 seconds)/Short time(5 seconds)
		Creepage
	Language	English/Russia/Chinese
Input Voltage	AC90V-270V
Output Voltage	Input 90V-140V,Output 220±7%;Input 140V-250V,Output 220±4%;Input 250V-270V,Output 220±7%
Frequency	50Hz/60Hz
Phase	Single phase
Efficency	≥90%
Ambient Temperature	-15°C-45°C
Relative humidity	<95%
Waveform distortion	No additional wave from distortion
Insulation resistance	Normally more than 2MΩ
Power	500VA		800VA		1000VA		1500VA	2000VA
Packing size(cm)	35.830.342.3		35.830.342.3		35.830.342.3		35.830.342.3	39.635.346.7
Packing (pcs)	4		4		4		4	4
G.M(KGS)	15.41		16.25		17.98		21.08	27.84
Power	3000VA		5000VA		8000VA		10000VA	12000VA
Packing size(cm)	38.627.729.8		38.627.729.8		43.327.729.8		44.230.437.1	44.230.437.1
Packing (pcs)	1		1		1		1	1
G.M(KGS)	12.75		16.22		19.06		25.70	30.15
