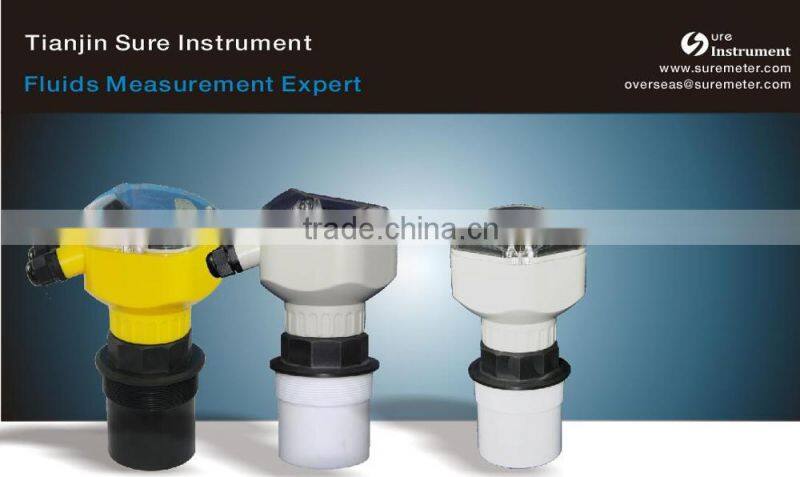

Ultrasonic Level Meter Series
Description
This instrument determines the height from the bottom to the surface of the liquid under test by measuring the air
propagation time, the time required for an ultrasonic wave emitted from the detector installed above the tested liquid to
reflect on the level of the liquid, and then return to the detector.This product can be widely used for a high degree of
measurement of the level of a variety of liquid; solid materials can also be used for distance measurement.
Feature
- Provides reliable, accurate, and non-contact level measurement
- Non-contact technology offers no moving parts to wear, jam, corrode
- FM approved explosion-proof making it ideal for use in hazardous locations
- Easy programming with 6 digit LCD display and simple menu structure
- Output range is adjustable with choices of inputting tank dimensions or by filling and emptying the tank while
calibrating and it automatically and scaling to levels it senses
- Window cover allows easy viewing of display
- Fail-safe output options and diagnostic capabilities
Specification
| Functions | Integrative Type | Segregated Type |
| Level Range | 5m,10m, 15m,20m,30m,50m, | 5m,10m,15m,20m,30m,50m |
| Accuracy | 0.25-0.5% F.S | 0.25%-0.5% F.S |
| Bind Zone | 0.2-0.6m | 0.2-0.6m |
| Working Presssure | 2 Bar( Explore Proof Type is 5 Bar) | 2 Bar |
| Resolution | 3mm or 0.1%F.S(Max of them) | 3mm or 0.1%.F.S(Max of them) |
| Display | English language display, Level measurement, distance measurement, Transmission value, ambient temperature, echo state, alarm display, algorithm selection |
|
| Analog Output |
4-20mA/750Ω load resistance(2 wire) 4-20mA/250Ω load resistance(4 wire) 1-5V(3 wires) 0-5V(3 wires) 0-10V(3 wires) |
4-20mA/750Ω load resistance 1-5V(3 wires) 0-5V(3 wires) 0-10V(3 wires) |
| Relay/ Alarm output |
AC 250V/8A; DC 30V/5A; State programmable(optional for 4wire) |
AC 250V /8A DC 30V/ 5A State programmable( Optional ) |

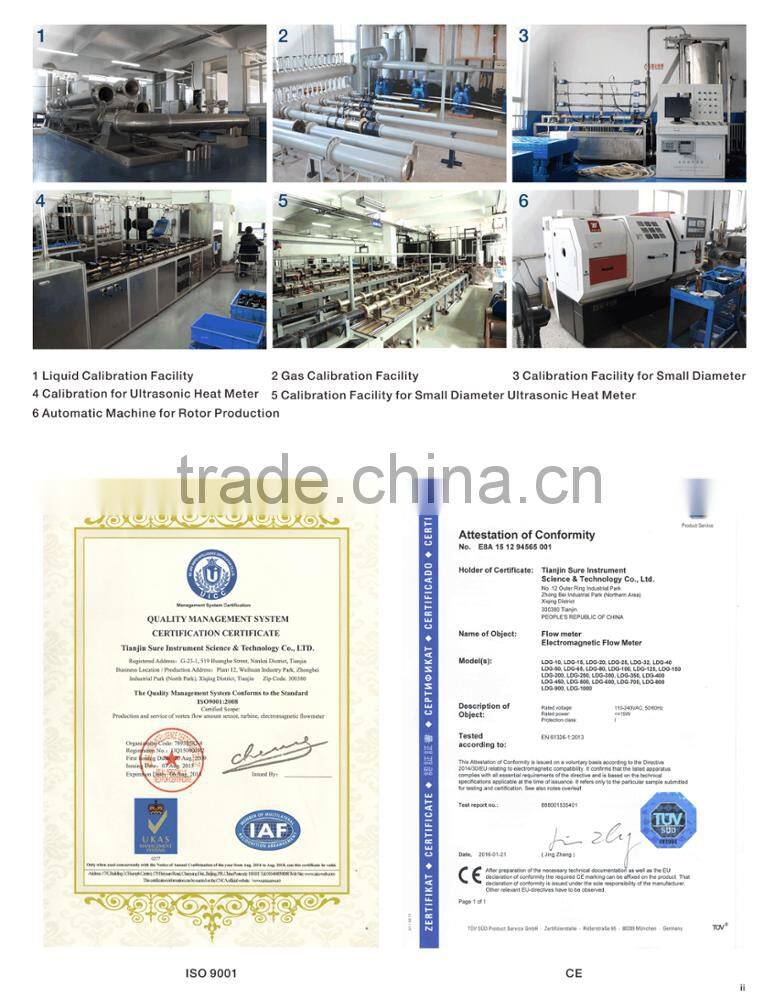

Facility & Certificate
SURE Exhibition

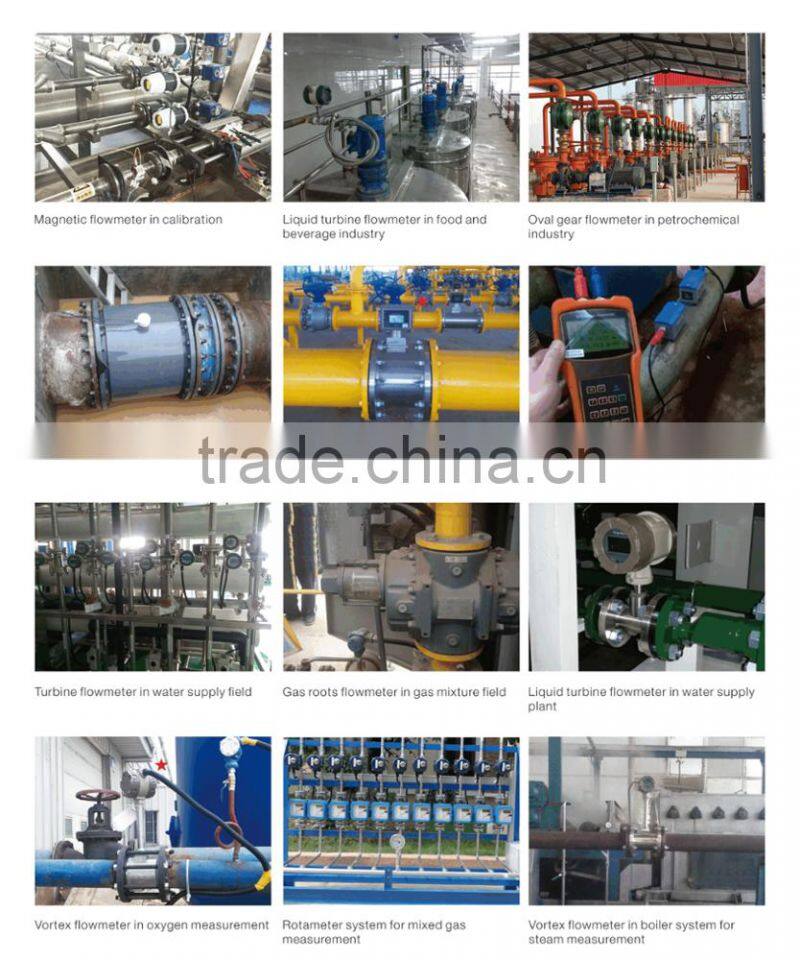

Product Application
Product Gallery
