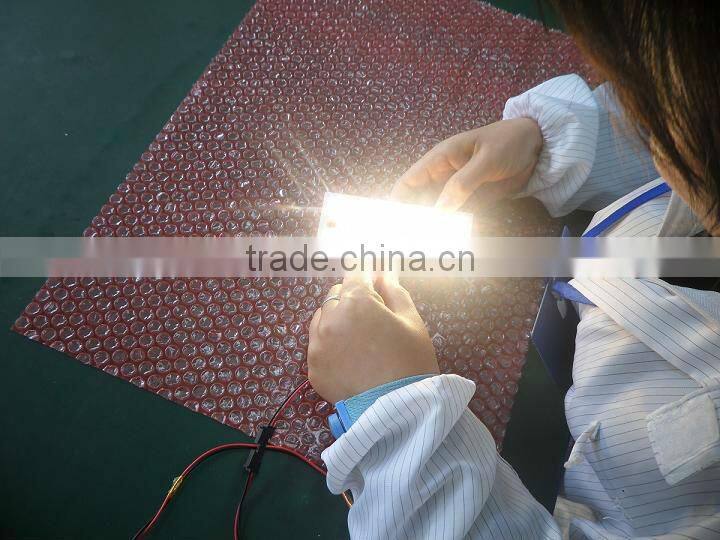

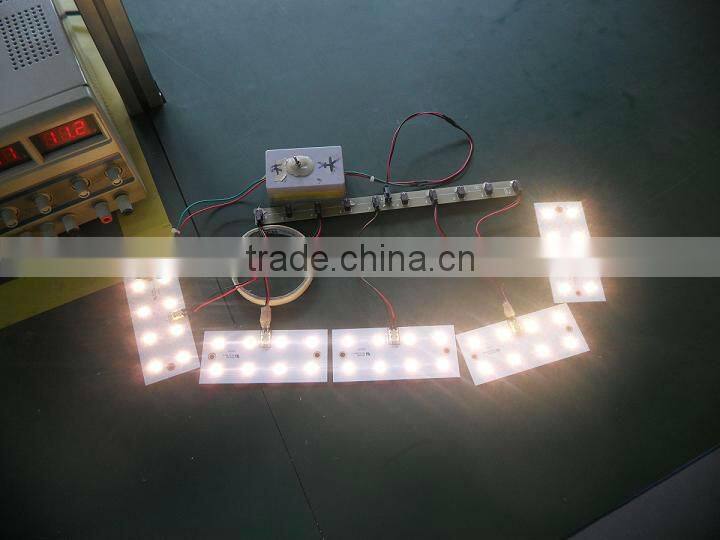

Help CenterAluminium Base Board
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
YB
Model Number:
YB-board-al
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
YB
Model Number
YB-board-al
Base Material
aluminum
Copper Thickness
0.5OZ
Board Thickness
0.2mm-3.2mm
Min. Hole Size
0.2mm
Min. Line Width
0.15mm
Min. Line Spacing
0.15mm
Specifications
1.low cost pcb2.pcb material: aluminum
3.high thermal conductive single sided alu pcb
4.good qualit
1 |
layer |
1-26 layer |
2 |
Material |
Aluminium.FR-4,CEM-1,High TG,FR-1,FR-2 |
3 |
Board thickness |
0.2mm-3.2mm |
4 |
Max.finished board side |
685mm*685mm |
5 |
Min.drilled hole size |
0.2mm |
6 |
min.line width |
0.1mm |
7 |
min.line spaceing |
0.1mm |
8 |
Surface finish/treatment |
HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
9 |
Copper thickness |
0.5-5.0oz |
10 |
Solder mask color |
green/black/white/red/blue/yellow |
11 |
Inner packing |
Vacuum packing,Plastic bag |
12 |
Outer packing |
standard carton paking |
13 |
Hole tolerance |
PTH:±0.076,NTPH:±0.05 |
14 |
Certificate |
ISO9001,ISO14001,ROHS |
15 |
profiling punching |
Routing,V-CUT,Beveling |
16. providing OEM service to all sorts of printed circuit board assembly | ||
