Low Cost Variable Area Flow Meter

Name: Low Cost Variable Area Flow Meter
Brand: SURE
SKU: 117192609
Availability: InStock

US$ 300 - 5,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Tianjin, China

Brand Name:

SURE

Model Number:

LUGB-

Tianjin Sure Instrument Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Tianjin, China

Brand Name SURE

Model Number LUGB-

Specifications

Specifications
1.Mainly used for water works and sewage treatment
2.High accuracy
3.Balanced ultrasound transmission

low cost Variable Area Flow meter

Technical Data
2.1 Specification
Flowmeter Model	SH250
Medium to be measured	liquid,gas,steam

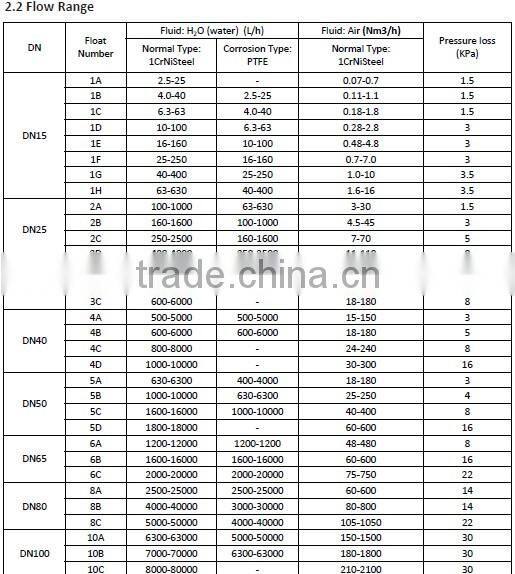

Measuring range	See Section 2.2 Flow Range
Turndown ratio	10:1
Accuracy class Field type Remote type	(Refer to the accuracy on the nameplate) 1.5, 2.0,2.5 1.0, 1.5, 2.0, 2.5
Type of protection	IP65, IP67 (Standard: IP65, special products on request)
Operating Pressure Nominal pressure	DN15…DN50 4.0MPa DN80…DN150 1.6MPa
Max. Pressure Rating	DN15: 32Mpa; DN25: 25Mpa; DN50: 20Mpa; DN80:10MPa; DN100:6.4MPa; DN125:4.0MPa; DN150:4.0Mpa
Fluid Temperature Field type Remote type	minus80 up to 300°C minus40 up to 150°C	High temperature Type: 350°C
Ambient Temperature Field type Remote type	minus 40 up to Max.120°C minus 40 up to 50°C, Max. 60°C
Mounting height	See Table
Conditions of storage Temperature range Relative humidity	minus 20°C up to 60°C <=85%
Connections	Flange connection, standard DIN2501, other products on request
Cable interface	M20 × 1.5
Explosion proof	ExdIIBT4
