Flow Recorder/Totalizer Series
Description
FX2000F is stored as a multi-functional integrated flow totalizer. In accordance with the relevant international standards, national and industry standards, this instrument has established a variety of flow mathematical models for different flow sensors and media in order to have accurate flow measurement and calculation. It can be widely used in the trade settlement and calculating management network of petrochemical, chemical, metallurgy, electric power, light industry, medicine, city gas, heating and other industries.
Application
- Saturated steam (temperature & pressure compensation) and Superheated steam
- Water, General gas, mixed gas, Artificial gas, General liquid
- Single gas (support 18 kinds of standard gas: air Air, nitrogen N2, oxygen O2, helium He, hydrogen H2, argon Ar, C0, carbon dioxide CO2 , hydrogen sulfide H2S , ammonia NH3, methane CH4, ethane C2H6, propane C3H8 and butane C4H10, ethylene C2H4, acetylene C2H2, propylene C3H6, butene C4H8)
Signal
- Traffic signal: 4-20mA and frequency input support. 4-20mA input to provide a set of DC24V power distribution, provides a set of input frequency and a group DC12V DC24V power distribution.
- Temperature signal: support 4-20mA, PT100, PT1000 inputs.
- Pressure signal: 4-20mA input support. Providing a set of DC24V power distribution.
- Switch signal: Support mains failure alarm.
- Transmission output: 4-20mA transmitter output support.
- Alarm Output: Supports a group of relay contact output.

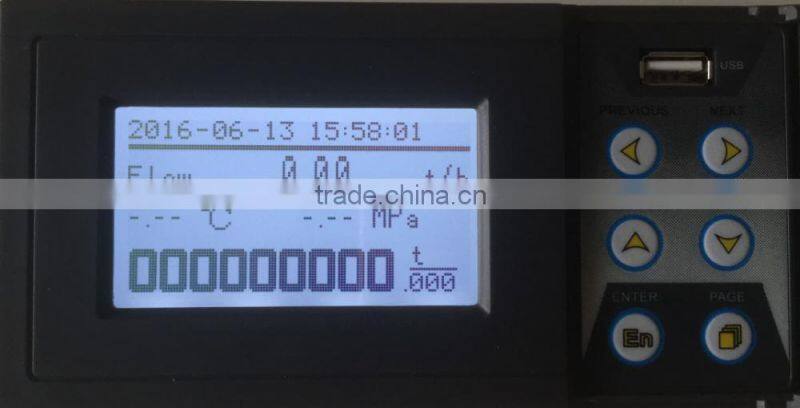

Displaying
Instrument Structure
1. USB storage interface: store historical data, reports, power-down record and other data in the strument.
2. LCD digital screen: display digital display screen, intermediate parameters, and historical curve.
3. Keyboard: left, right, increase, reduce, enter, page.
4. Operation cover: protect the USB interface and keyboard by using the cover buckle to open operation cover.
5. Power terminal: Connect the power line and grounding protection line.
6. Terminal wiring diagram: signal wiring.
7. Signal terminals: connect the input and output signals.
8. mounting bracket: fix instrument in panel mounting.

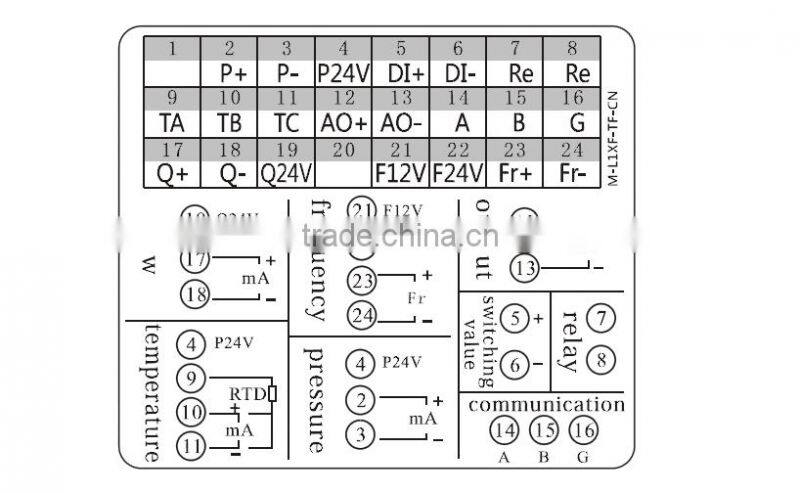

Terminals & Wiring Diagram
