CNG CYLINDER FOR TRANSPORT CNG

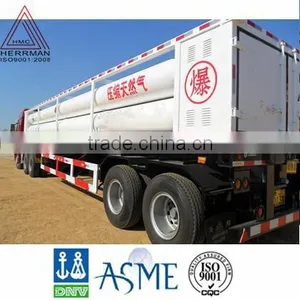

CNG CYLINDER FOR TRANSPORT CNG thumbnail-1
CNG CYLINDER FOR TRANSPORT CNG photo-1
US$ 100,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Steel
Use:
CNG
Pressure:
High
Contact Supplier Request Quote Chat Now
Anhui Herrman Impex Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Steel
Use CNG
Pressure High
Place of Origin Anhui, China
Brand Name HERRMAN
Model Number none



Product Description

CNG CYLINDER FOR TRANSPORT CNG



Application:



1. For CNG transportation from Mother station/ gas reserve to daughter station;



2. For CNG transportation to places where pipeline network hasn’t been built;



3. For CNG transportation to places where can’t reach existing distribution system etc;



4. For CNG storage at gas stations.



Specification:



FOR ONE UNIT:

Seamless steel cylinder specification

Working pressure

20

MPa

Ambient temperature

-40~60

°C

Gas type

CNG



Capacity per unit

2.250

m³

Max weight of filling CNG

406.8

Kg

Weight(empty)

2690

Kg

Hydraulic testing

33.4

MPa

Gas leakage test

20

MPa

Size(diameter x L)/unit

Φ559x10980

mm

Cylinder material

4130X







FOR 8-TUBE BUNDLES CONTAINER:



8-tube bundles container specification

Outer size

12960*2500*3000

mm

Total weight

36000

Kg

Curb weight

32770

Kg

Rated weight

3230

Kg

Approach/Departure angle

-/16



Front/Rear suspension

-/1790

Mm

Axle load

-/19770



Wheelbase

7120+1350+350

Mm

Number of tires

12



Effective volume

17.92

m³

Density

180.8

Kg/ m³





FOR 10-TUBE BUNDLES CONTAINER:



10-tube bundles container specification

Outer size

12400*2500*3550

mm

Total weight

40000

Kg

Curb weight

36000

Kg

Rated weight

4000

Kg

Approach/Departure angle

-/16



Front/Rear suspension

-/1800

Mm

Axle load

-/23770



Wheelbase

6680+1310+1310

Mm

Number of tires

12



Effective volume

22.4

m³

Density

180.8

Kg/ m³















Packaging & Shipping

Packaging: with trailer.

Shipping: 20 days after order confirming.



Our Services

Depond on your requirement, we design the tank on different material, volume, pressure.etc.



Company Information





FAQ



  1.Q:Are you a factory or trading company?
      A: We are a factory.

  2. Q: Where are your factory located?

      A: Our factory located in Hefei city,Anhui provice.

  3. Q:Can I visit the factory?

      A: Yes, you can.

  4.Q: How long have your company do export?

     A: 20 years.



Please contact me for more details!
