OHA Manual surface grinding machine
Characteristics of Manyal Surface Grinding Machine
a. Spindle adopts ultra precision P4 ball bearing,after measuring pre strict pressure,assembled in the greenhouse,and equipped with a completely waterproof mazy design,in order to ensure the service life abd tge grinding of bearing surface roughness which marching with ball screw.
b. It has the advantages of compact structure,easy to operate.
c. A longitudinal guide rail worktable adopts rolling guide,rope wheel traction,light and flexible.

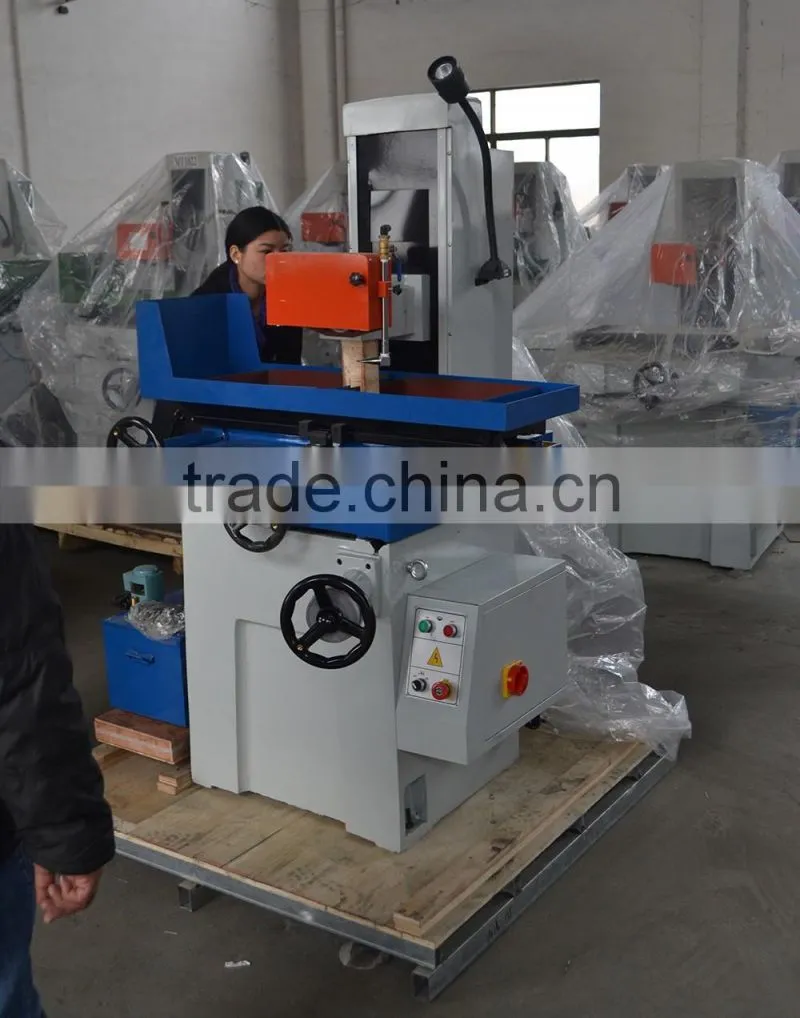

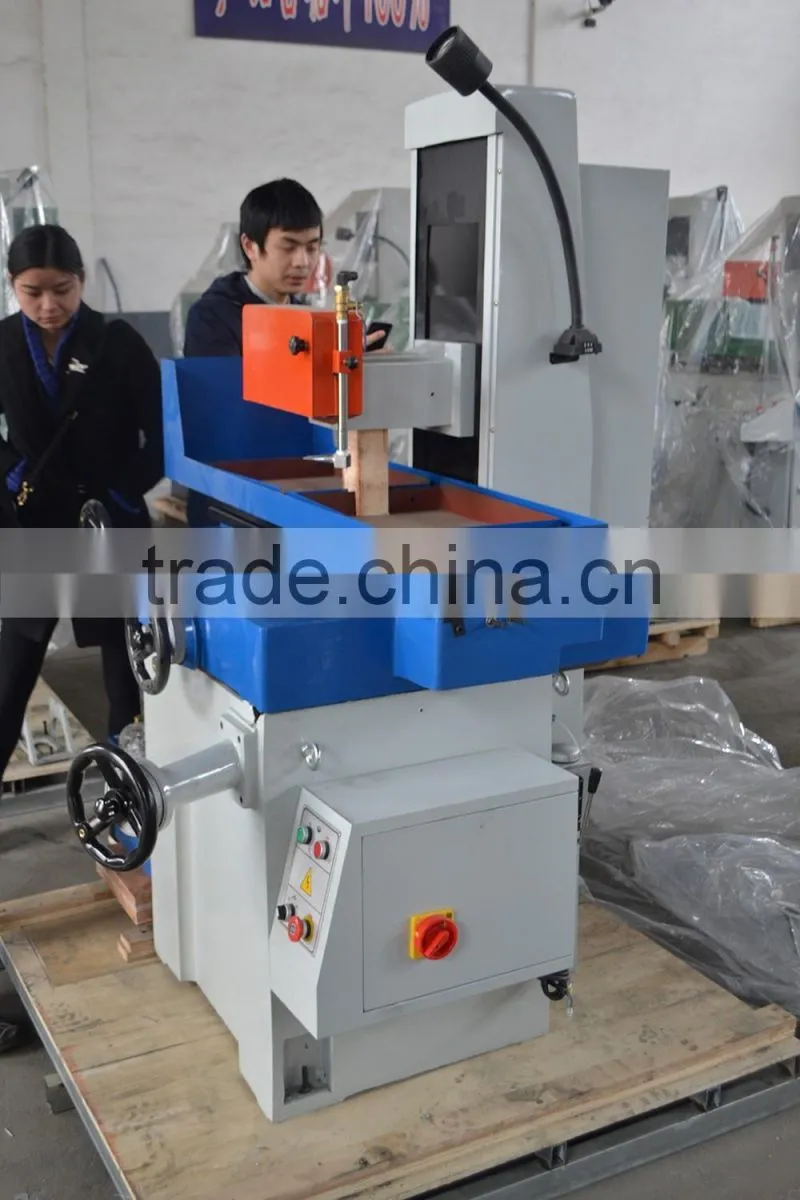

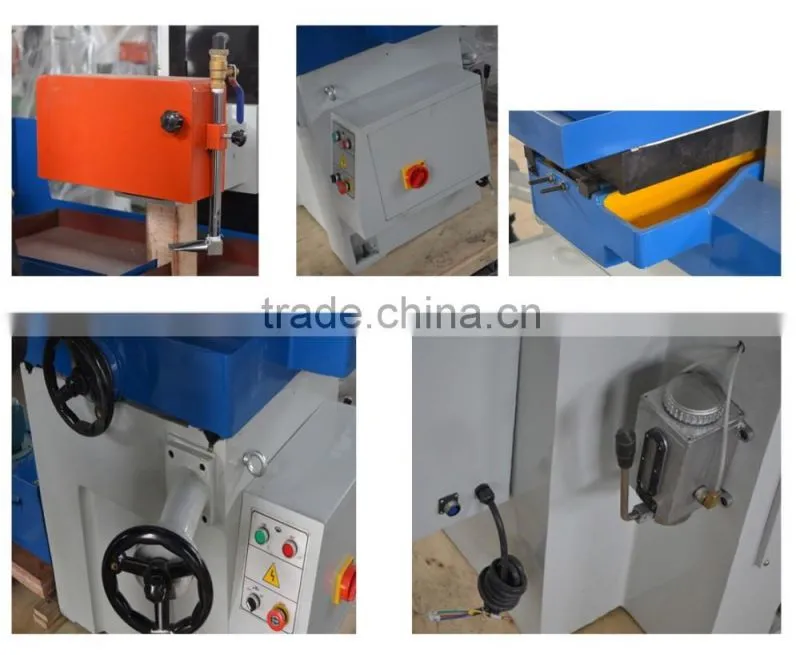

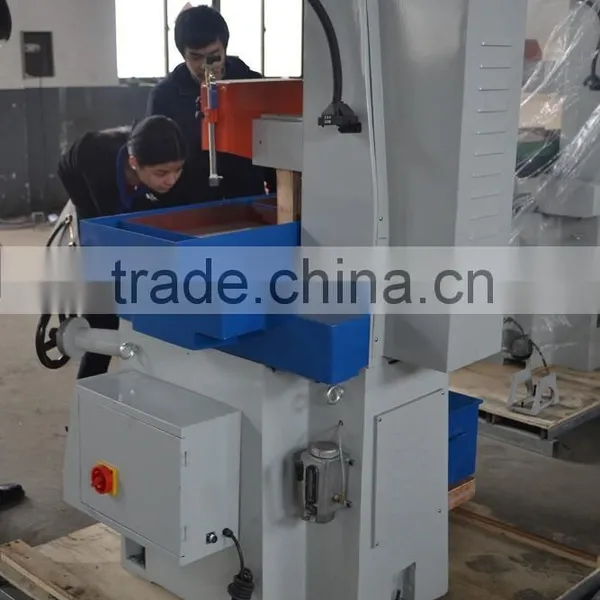

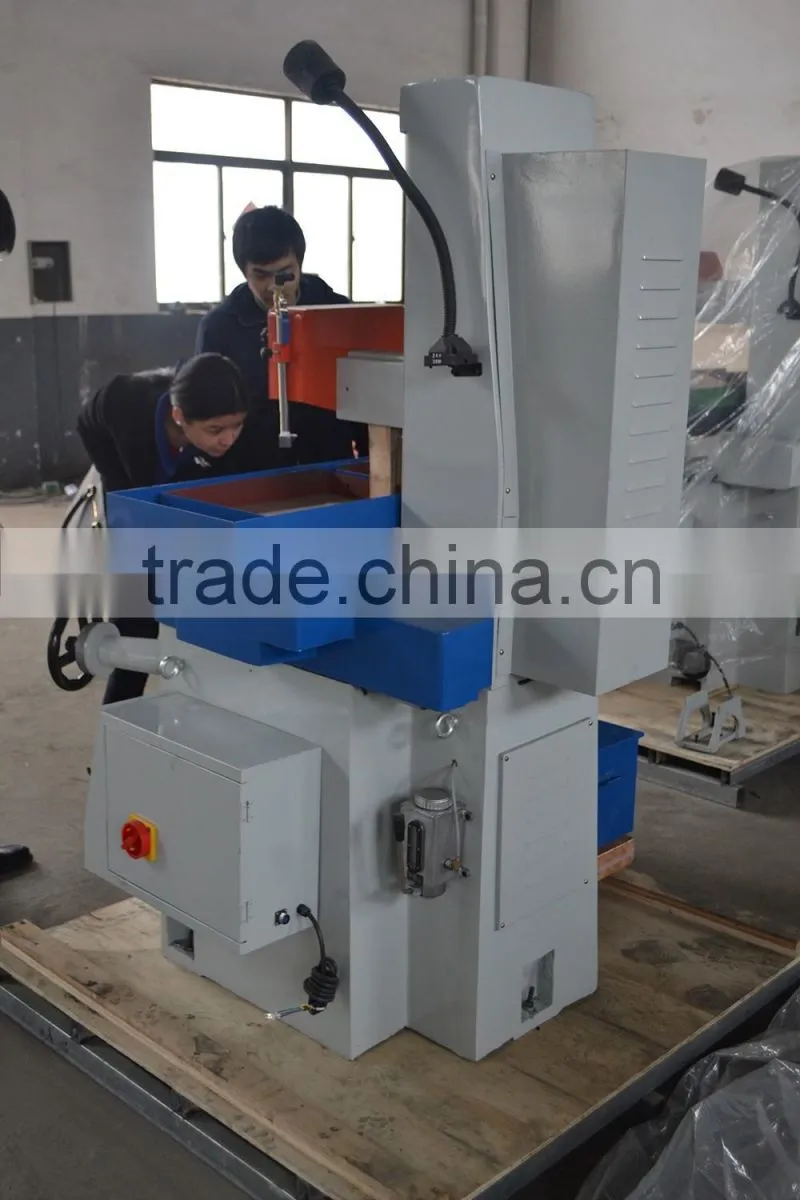

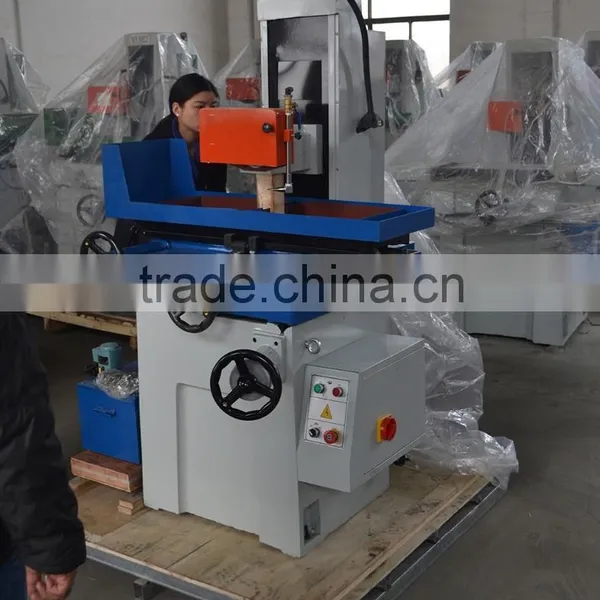

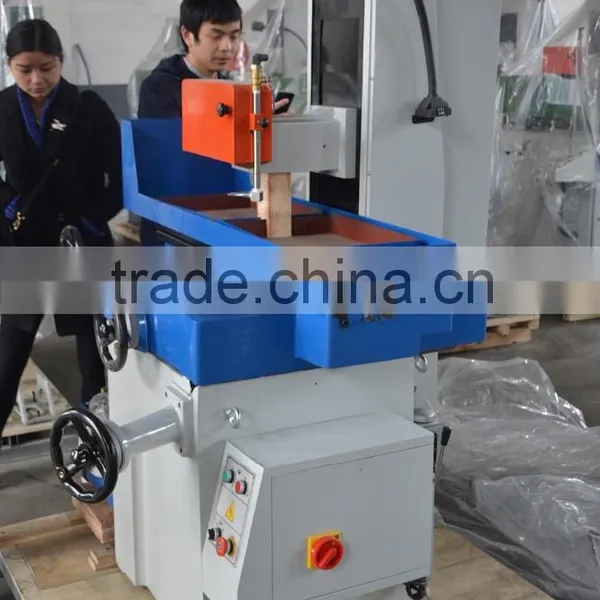

Details photos:
Technical Specifications for M1022:
| Technical Parameters | Unit | M1022 | M820 | M618 |
| Table Max.cutting area(LXWXH) | mm | 560x250x490 | 520x220x490 | 500x190x335 |
| Working Table Movement Max.Grinding Length | mm | 560 | 520 | 500 |
| Working Table Movement Max.Grinding Width | mm | 250 | 220 | 190 |
| Distance From Table to spindle center | mm | 490 | 490 | 335 |
| Slide Way | V-type double rail with steel-ball | V-TYPE | V-TYPE | |
| Max. work load | kg | 250 | 200 | 200 |
| Table size | mm | 500x250 | 480x200 | 460x180 |
| Number of T-Slot | mmxn | 14x1 | 14x1 | 14x1 |
| Table Speed | m/min | 3-23 | 3-23 | 3-23 |
| Front and rear wheel feed | mm | 0.02/graduation 4/revolution | 0.02/graduation 2.5/revolution | 0.02/graduation 2.5/revolution |
| On the hand wheel feed | mm | 0.01/graduation 2/revolution | 0.01/graduation 1.25/revolution | 0.01/graduation 1.25/revolution |
| Wheel Size(Diaxwidthxbore) | mm | 200x20x31.75 | 200x20x31.75 | 180x13x31.75 |
| Spindle speed 50hz | rpm | 2850 | 2850 | 2850 |
| Spindle speed Variable frequency motor | rpm | 0-6000 | 0-6000 | 0-6000 |
| Spindle motor | kw | 1.5 | 1.5 | 1.1 |
| Cooling pump | kw | 0.4 | 0.4 | 0.4 |
| Packing size(LxWxH) | mm | 1280x1250x1880 | 1260x1140x1760 | 1240x1080x1680 |
Packing Details:
