Semi Automatic pe Film Beverage Sleeve Heat Shrink Wrapping Machine/semi-automatic pe Film Sleeve Heat Shrink Wrapping Machine

Semi Automatic pe Film Beverage Sleeve Heat Shrink Wrapping Machine/semi-automatic pe Film Sleeve Heat Shrink Wrapping Machine thumbnail-1
Semi Automatic pe Film Beverage Sleeve Heat Shrink Wrapping Machine/semi-automatic pe Film Sleeve Heat Shrink Wrapping Machine thumbnail-2
Semi Automatic pe Film Beverage Sleeve Heat Shrink Wrapping Machine/semi-automatic pe Film Sleeve Heat Shrink Wrapping Machine photo-1
Semi Automatic pe Film Beverage Sleeve Heat Shrink Wrapping Machine/semi-automatic pe Film Sleeve Heat Shrink Wrapping Machine photo-2
US$ 10,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Other
Packaging Type:
Other, Plywood Case
Contact Supplier Request Quote Chat Now
Xiamen Shenzhou Packing Machine Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Other
Packaging Type Other, Plywood Case
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V 50/60HZ
Power 20 KW
Place of Origin Fujian, China
Brand Name Shen Pack
Model Number SZR SW6030A40D
Dimension(L*W*H) L1360 x W34400 x H1900 MM/L2800 x W1640 x H1720 MM
Weight 600kgs
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Upgraded semi-auto Sleeve Wrappping Machine with 2 Sealing Devices and 2 Shrink Chambers to acheive the fastest packing speed.

semi automatic pe film beverage sleeve heat shrink wrapping machine/semi-automatic pe film sleeve heat shrink wrapping machine

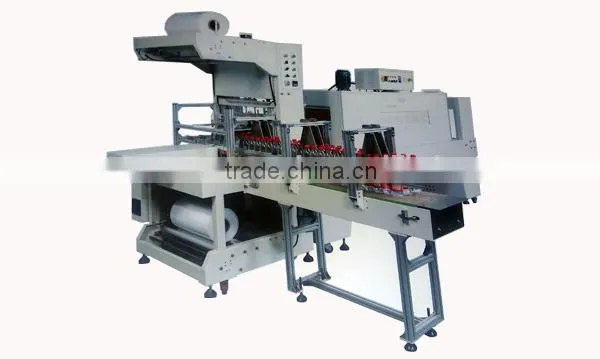

This Fully Automatic Sleeve Wrapping Machine Model SZR SW6030A40D is suitable for speeds up to 25 products per minute. The system comprises the Sleeve Wrapper followed by a Shrink Tunnel.



Unlike a Semi Automatic model, a Fully Automatic Sleeve Wrapping Machine uses either a driven belt conveyor and a pusher to automatically transfer the product through the web of film. Once the product has been sleeve wrapped, another automatic conveyor takes the product into the heat shrink tunnel where the polyethylene film is shrunk around the product to form the transit wrap.



Shenzhou Pack offers Fully Automatic Sleeve Wrapping Machine with designed to be robust, easy to operate and maintain as well as being low cost to purchase. The key features are:

  1. Fully-automatic for products tranfering, wrapping, sealing and shrinking
  2. No operator required
  3. Very robust construction
  4. Clear, perimeter guards allowing ease of access and visibility at all times
  5. Ergonomically positioned film reels allowing easy loading of film and simple film thread up
  6. Heavy duty Teflon coated sealing blade for strong, reliable seals and a long blade life
  7. Powered film drive to ensure lightweight products are easy to wrap
  8. Available with film widths of 700, 900 and 1300 mm and product heights up to 500mm.





Samples

semi automatic pe film beverage sleeve heat shrink wrapping machine/semi-automatic pe film sleeve heat shrink wrapping machinesemi automatic pe film beverage sleeve heat shrink wrapping machine/semi-automatic pe film sleeve heat shrink wrapping machine





semi automatic pe film beverage sleeve heat shrink wrapping machine/semi-automatic pe film sleeve heat shrink wrapping machine

Specification


TECHNICAL SPECIFICATION

Fully Automatic Sleeve Wrapping Machine , Model SZR SW6030AD40



Sleeve Sealer

Overall Size L1360 x W34400 x H1900 MM
Package Size Max. L500 x W300 x H330 MM x 2
Sealing Size Max. L700 x W330 MM
Efficiency 15-25 Packs/ Min
Net Weight 380 KGS
Power Supply 220V
Power Consumption/ 1.8 KW







Shrink Tunnel

Overall Size L2800 x W1640 x H1720 MM
Chamber Size L1000 x W450 x H350 MM x 2
Package Size              Max. L1800 x W600 x H400 MM x 2
Temperature Max. 200oC
Net Weight/ 750 KGS
Power Supply 380 V
Power Consumption 20 KW
