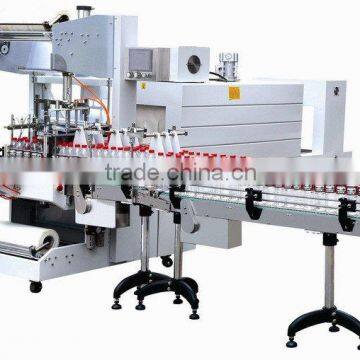

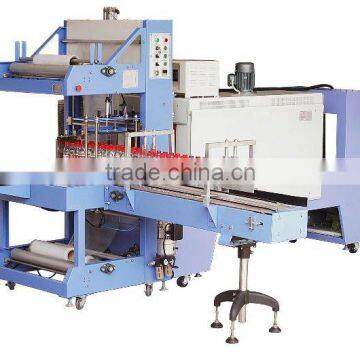

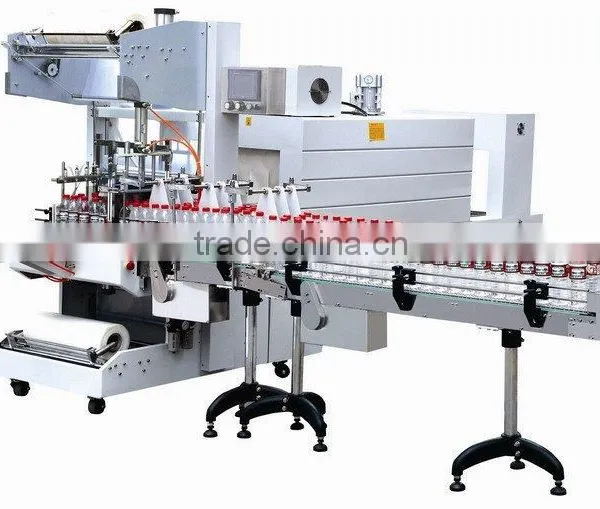

Automatic PE Film Shrink Wrapping Machine/PE Shrinkable Film Sleeve Shrink Wrapping Machine
US$ 10,000 - 16,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Other
Packaging Type:
Other, Plywood Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Seal & Shrink Combo,2 In 1 Combo Sealer Shrink Tunnel,Combined Shrink Chamber MachineryNegotiableMOQ: 1 Set -
Semi Automatic pe Film Beverage Sleeve Heat Shrink Wrapping Machine/semi-automatic pe Film Sleeve Heat Shrink Wrapping MachineUS$ 10,000 - 16,000MOQ: 1 Set
-
Automatic Shrink Wrapping Machine for Carton BoxUS$ 4,000 - 8,000MOQ: 1 Set
-
Automatic Shrink Wrapper MachineUS$ 600 - 30,000MOQ: 1 Set
-
Packing Machines for SaleUS$ 600 - 15,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Other
Packaging Type
Other, Plywood Case
Packaging Material
Plastic
Automatic Grade
Semi-Automatic
Driven Type
Electric
Voltage
220v/380v 50/60hz
Power
22 KW
Place of Origin
Fujian, China
Brand Name
Shen Pack
Model Number
SZR SW5038B40A
Dimension(L*W*H)
L1020 x W830 x H1980 MM/L2500 x W820 x H1680 MM
Weight
600kgs
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Cost effective automatic PE shrinkable film sleeve shrink wrapping machine soluton for Bottle Water, tray or no-tray applicable.
automatic PE film shrink wrapping machine/PE shrinkable film sleeve shrink wrapping machine
Features
- Shenzhou Pack supplies the cost-effective Semi Automatic Sleeve Wrapper combination tunnel range for applications up to 10 products per minute.
- With a Semi Automatic Sleeve Wrapper, the product is placed on the infeed by hand. Once the product, or collation of products, is positioned in front of the pneumatic infeed pusher, a button is pressed which starts the wrapping cycle. The product is pushed through the web of film and the sealing head then automatically cuts and seals the piece of film around the product.
- After sealing, the wrapped product is automatically conveyed into the integrated heat shrink tunnel. By having the tunnel combined with the sleeve wrapper, the machines footprint is kept to a minimum and the whole system is still manoeuvrable to suit the needs of production.
- This model range is available with film widths of 450, 650, 850, 1250, and 2450 mm to a large range of products.

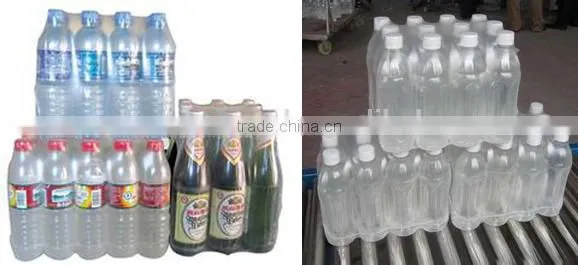

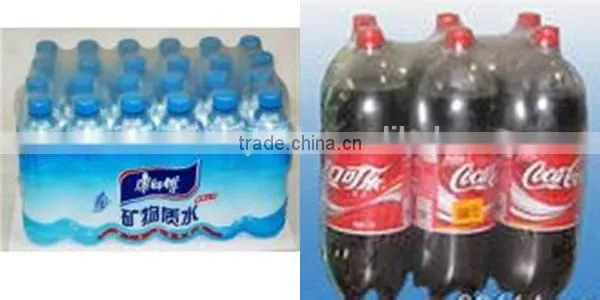

Samples
automatic PE film shrink wrapping machine/PE shrinkable film sleeve shrink wrapping machine
Specification
TECHNICAL SPECIFICATION
Semi Automatic Sleeve Wrapper, Model No. SZR SW5038B40A
Sleeve Sealer
| Efficiency | 5-8 Packs/ Min |
| Package Size | Max. L450 x W270 x H350 MM |
| Conveyor Load | Max. 30 KGS |
| Power Supply | 220 V |
| Power Consumption | 1.8 KW |
| Overall Size | L1020 x W830 x H1980 MM |
Shrink Tunnel
| Package Size | Max. W450 x H350 MM |
| Tunnel Size | L1500 x W500 x H400 MM |
| Conveyor Load | Max. 50 KGS |
| Power Supply | 380 V |
| Power Consumption | 20 KW |
| Overall Size | L2500 x W820 x H1680 MM |

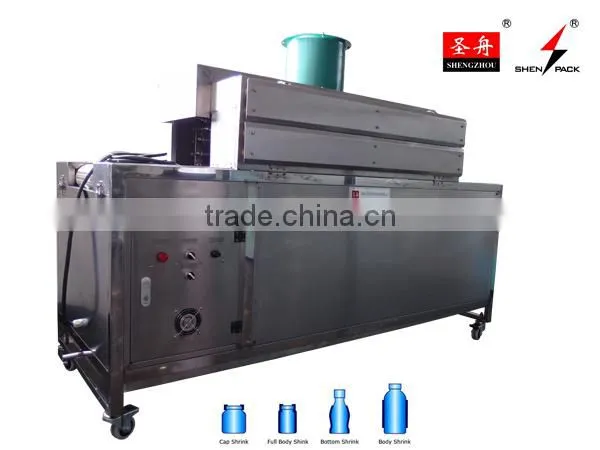

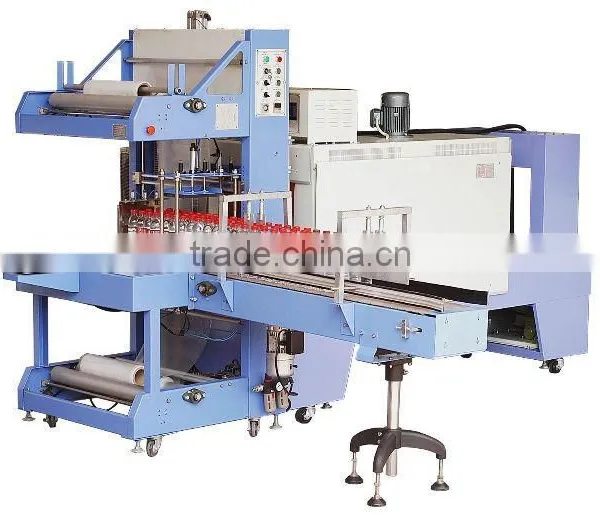

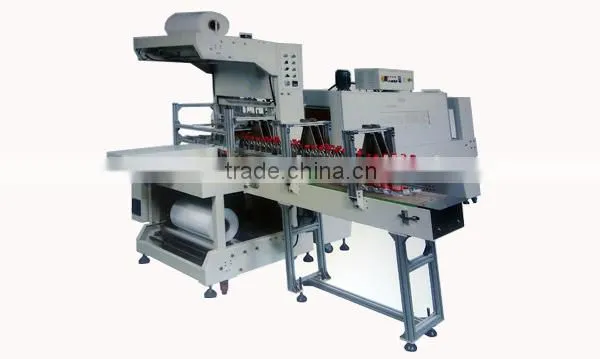

Machinery
automatic PE film shrink wrapping machine/PE shrinkable film sleeve shrink wrapping machine

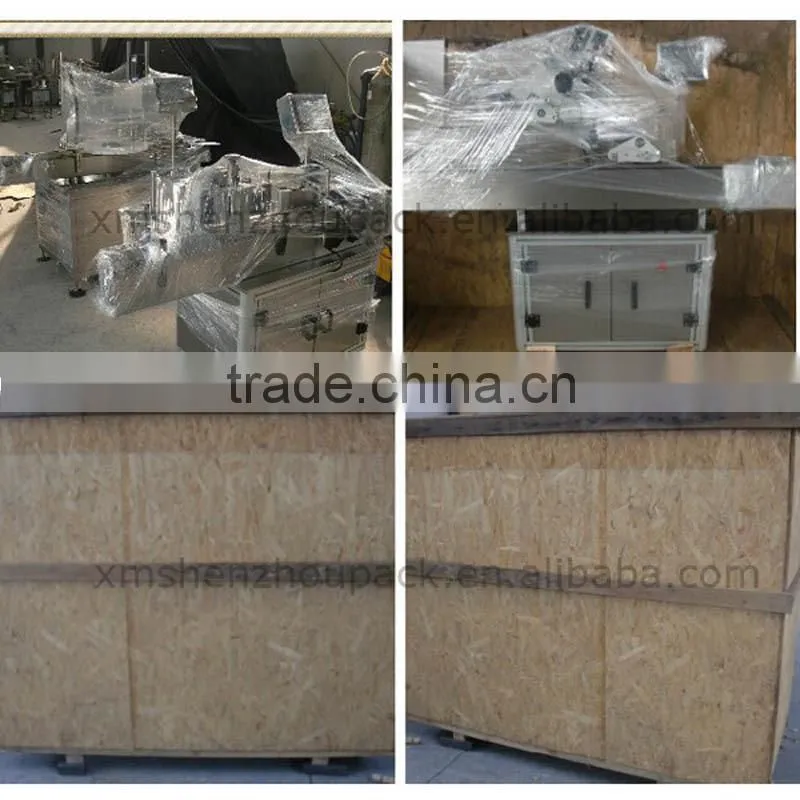

Packing INFO
automatic PE film shrink wrapping machine/PE shrinkable film sleeve shrink wrapping machine

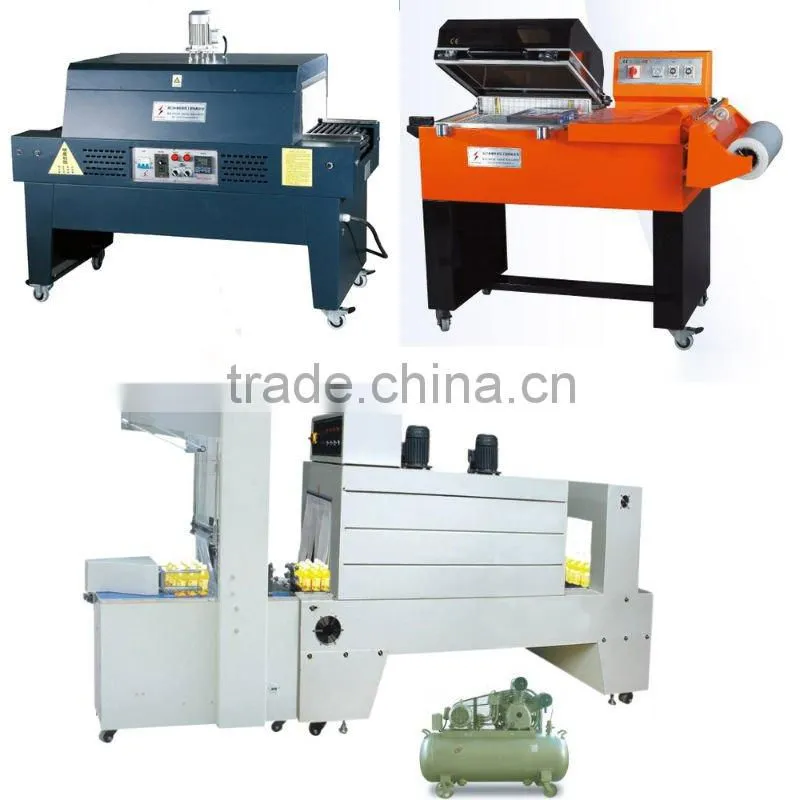

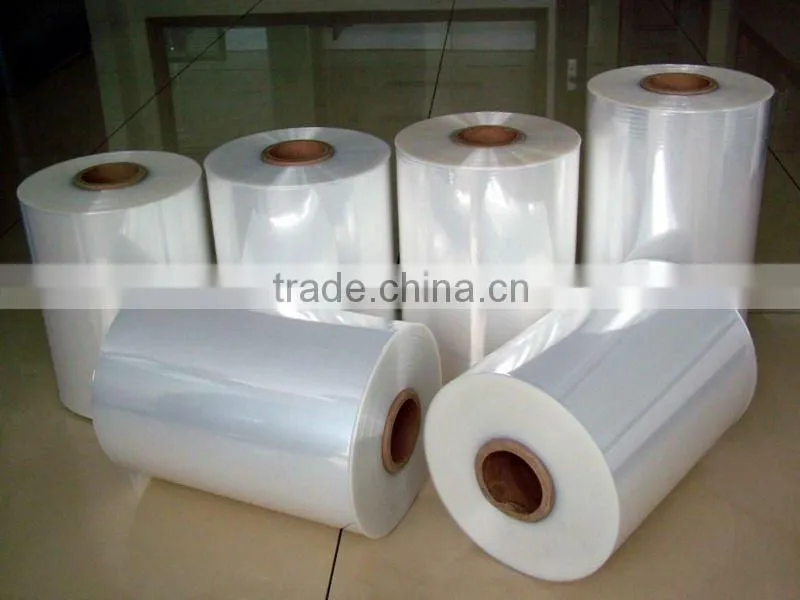

More Choice
automatic PE film shrink wrapping machine/PE shrinkable film sleeve shrink wrapping machine

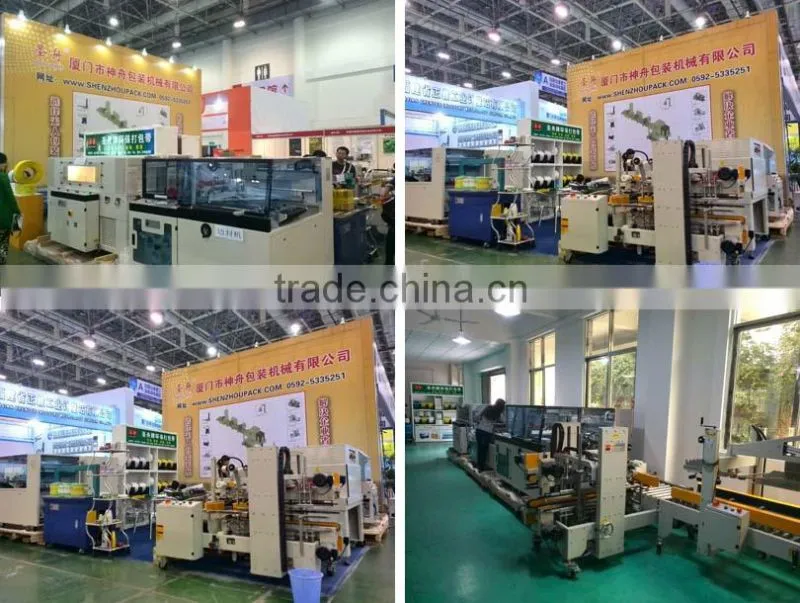

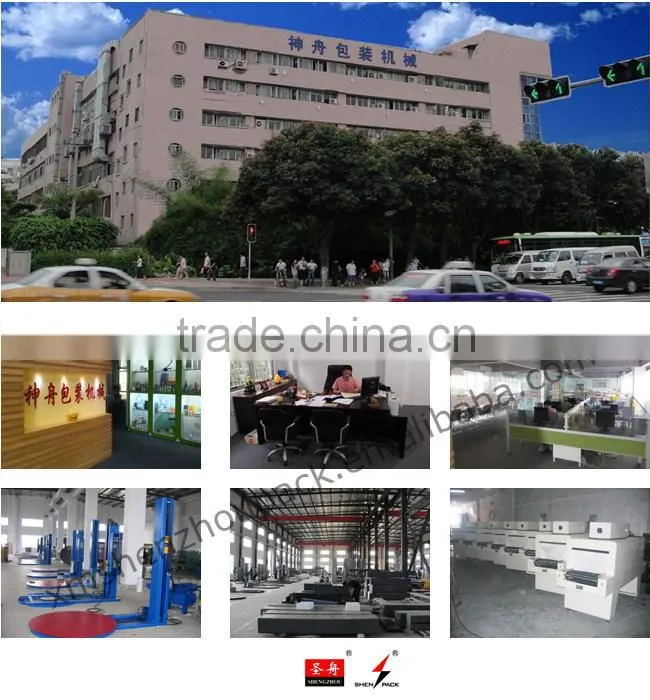

Company
Shenzhou automatic PE film shrink wrapping machine/PE shrinkable film sleeve shrink wrapping machine
automatic PE film shrink wrapping machine/PE shrinkable film sleeve shrink wrapping machine
