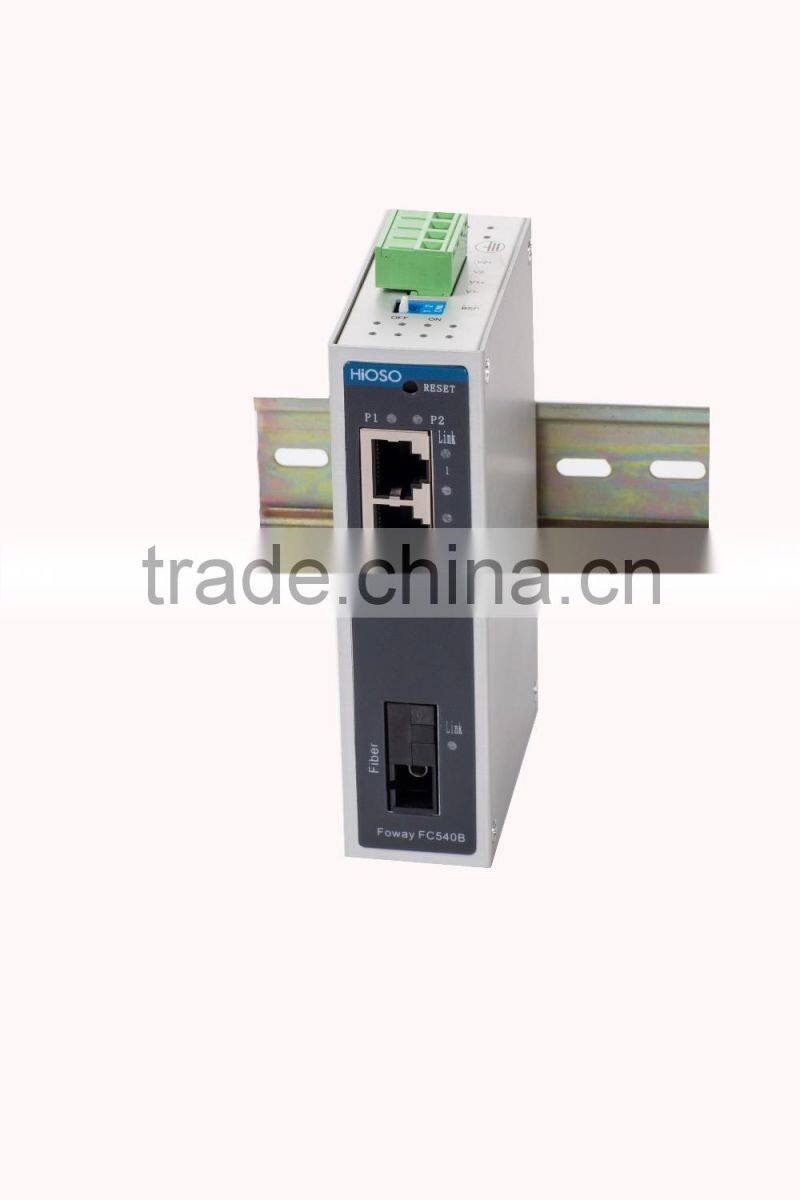

Din Rail Media Converter Industrial Ethernet Media Converter
Overview
Foway FC540B series is a 2 ports Ethernet media converter , which can implement mutual conversion between10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. Foway FC540B series media converter provide 2 RPS (Redundant power supply) input : 9.6 ~ 60 VDC and 18 ~ 30VAC , it can be connected to a DC or AC power supply. Besides, Foway FC540B series can work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for any industry . Foway FC540B series with the DIP switch , can enable or disable broadcast storm protection, for different industrial applications provide another flexible solution
Character
l RJ45 port 10 / 100M adaptive, with MDI and MDI-X auto recognition, automatic detection, automatic learning, good compatibility
l provide 2 RPS (Redundant power supply) input : 9.6 ~ 60 VDC and 18 ~ 30VAC
l Provide reverse polarity protection
l Support maximum 1552 byte long data packet transmission
l Side of the DIP switch dial 1 is enabled broadcast storm, dial the disabled broadcast storm
l With rugged metal housing IP30
l Support rails or distribution cabinet installation
Technical Specification
Parameters |
Specifications |
Access mode |
10/100Mbps |
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE 802.3x Flow Control,IEEE802.1d Spanning Tree,IEEE802.1q vlan,IEEE802.1p Qos |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km |
Port |
Two RJ45 port: Connected to STP/UTP category-5 twisted pairs |
Conversion mode |
Medium conversion, storing and forwarding/straight-through |
MAC address table |
I K |
Buffer space |
1Mbit |
Flow control |
Full duplex state: flow control; half-duplex state: back pressure mode |
Delay |
Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s; |
Bit error rate |
<1/1000000000 |
MTBF |
100,000 hours |
LED |
FX LINK/ACT (fiber link/action) |
Power |
12/24/48 VDC,18 ~ 30VAC input |
Power consumption |
2W |
Operating temperature |
-40~75°C |
Operating humidity |
5%~90% |
Storage temperature |
-40~85°C |
Storage humidity |
5%~90% (non-condensing) |
Dimensions |
115mm×30mm×70mm (height * width * depth) |
Order information
No |
Product code |
NMS |
Ports |
Storage temperature |
1 |
FC540B-xxxx-xx |
No |
2 10/100M RJ45 + 1 100M SFP port |
-10~60℃ |
2 |
FC540B-xxxx-xx-T |
NO |
2 10/100M RJ45 + 1 100M SFP port |
-40~75℃ |
Certificates
For more details, pls contact with us freely! ^_^
