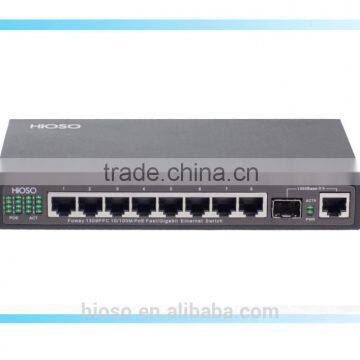

OEM Gigabit 8 Port Power Over Ethernet PoE Switch 48V
FOWAY1509PFC 1000M PoE Switch
Overview
HiOSO FOWAY1509PFC is nine ports PoE Ethernet switch, with 8 10/100/1000M RJ45 PoE ports and 1 1000M Combo port (100M/1000M SFP fiber port or 10/100/1000M RJ45 port optional).
FOWAY1509PFC supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards It can auto discovery the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.
FOWAY1509PFC supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices. FOWAY1309PFC supports web management and SNMP management; supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.
Character
l Support maximum 8 10/100/1000M RJ45 PoE ports and 1 1000m Combo port (100M/1000M optional SFP fiber port or 10/100/1000M RJ45 port optional)
l Each PoE port supports to auto discovery the standard power receiving device
l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
l Support 1000M port full rate, full-duplex non-blocking forwarding
l Support 8K MAC learning, 1Mbit storage and forward cache space,18G back plane bandwidth
l Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
l Support to choose one side with fixed metal casing, external power design, better for heat dissipating and installation
Technical Specification
Parameter |
Specification |
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
PoE |
PoE ports: 4 ports or 8 ports Standard and power consumption: IEEE802.3af 15.4W,IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting |
Wavelength |
SFP Module: 850nm/1310nm/1490nm/1550nm |
Distance |
100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220mfiber 62.5/125μm)/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
Port |
8 1000M RJ45 ports (PoE optinal): 10/100/1000Mbps 1 1000M Combo: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45 |
MAC |
8K |
Buffer memory space |
1Mbit |
Bit error rate |
<1/1000000000 |
MTBF |
100000 hours |
Power |
DC48V |
Power consumption |
11W |
|
Working temperature |
-10~60℃ |
Storage temperature |
-40~80℃ |
Humidity |
5%~90% non-condensing |
Dimension |
28mm (H)×193mm(W)×119mm (D) |
Solution
Certificates
