Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > High Precision China CNC Engraving Milling Machine Frame DX5050

High Precision China CNC Engraving Milling Machine Frame DX5050

Name: High Precision China CNC Engraving Milling Machine Frame DX5050
Brand: Sunway
SKU: 117146275
Availability: InStock

High Precision China CNC Engraving Milling Machine Frame DX5050 thumbnail-1

High Precision China CNC Engraving Milling Machine Frame DX5050 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Sunway

Contact Supplier Request Quote Chat Now

Nantong Sunway Science And Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Sunway

Model Number DX5050

Type Vertical

CNC or Not Normal

Voltage 380V or choosed by customer

Power(W) 50hz or choosed by customer

Dimension(L*W*H) 1810x1900x2260mm

Weight 1500kg

Certification ISO9000

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

China CNC Engraving Milling Machine frame
table:550x500mm
travel:500x500x250mm
spindle speed:600-24000rpm
load:200kg

China CNC Engraving Milling Machine frame

China CNC Machine frame

China Engraving Milling Machine frame

welcome to visit our website,the specification data of high precision China CNC Engraving Milling Machine frame DX5050 is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.

one. high precision China CNC Engraving Milling Machine frame DX5050 specifications:

Model

Table dimension

(length×width)(mm)

Table T groove

(mm)

Workingload(kg)

Travel(X,Y,Z)(mm)

Spindle speed

(rpm)

DX5050

550×500

5-17

200

500×500×250

600-24000

two. high precision China CNC Engraving Milling Machine frame DX5050 configurations:

Type NO.	Name	Brand Habitat	Remarks
1	High-speed electrical spindle	Xingcheng	4KW/3.2KW/Constant Power
2	Coupling Shaft	Mikipulley (Japan)
3	Ball screw of three axles	C3 level double nuts ball screw of 3 axis
4	Beeline rail of three axles	High Precision beeline guide of HIWIN (Taiwan)
5	Lubrication way	Nanjing (Jiangsu)	Centralized Oiling
6	Axletree	Japan of NSK or NACHI	P4 level of high accurate match axletrees
7	Whole Machine Painting	Plastic Spraying
8	Accurate Round Nuts	Taiwan
9	Shield Of Y-axis	Domestic	Stainless Steel
10	Bolts of whole machine	High Intensity 12.9 Grade

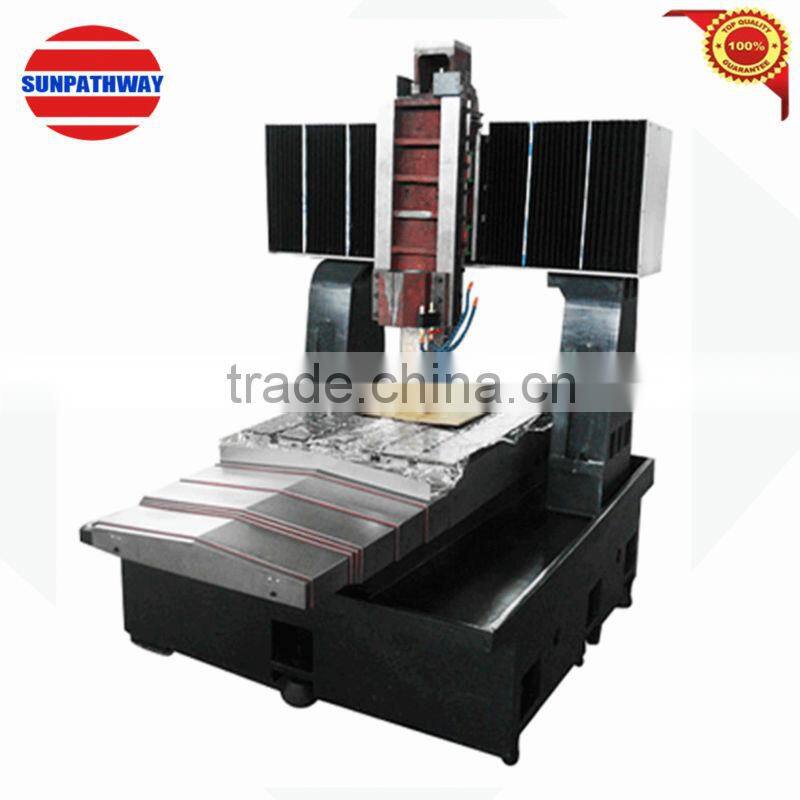

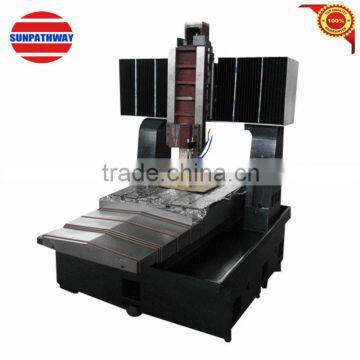

three. photos for high precision China CNC Engraving Milling Machine frame DX5050

four.Production capacity

Company Brief Nantong sunway technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop of cnc engraving and milling machine
Complete engraving and milling machine After finishing leave factory testing,we will use waterproof and anti extrusion to protect the machine’s safety during transportation.
Small Gantry milling machine We could supply OEM service and custom design service.
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG(Korea), MAKINO(Japan),Brazil,Argentina,Mexico,Turkey.All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”.
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine.
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn.
Gantry machining center Using famouse brand gantry machining center,is the key point to guarantee the precisio and surface finishment of machining face.
Detection of assembling In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine.
Precision detection
Laser inspection equipment Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines.
