1000M Industrial Type ONU FTTB Gigabit 1GE ONU GEPON
1. Overview
HA7200GH is one 10/100/1000M port industrial type ONU. Its high temperature resistance feature and multiple lightning protection design guarantee high efficient operation in atrocious weather. HA7200GH is mainly used in security monitoring, tunnel monitoring, mine network, and other survailance solutions.
HA7200GH ONU works with OLT and NMS management card to implement fault location and diagnosis, which makes maintenance easier
2. Feature
l Apply to IEEE802.3/802.3ah
l Support auto discovery and auto register (real-time operation)
l Support DBA and multi types SLA
l Support IEEE802.1D RSTP
l Support IGMP Snooping V2 multi-broadcast function
l Support EMI and ESD identification
l Support VLAN
l Support user end auto time synchronization based at SNTP
l Support OAM and remote management
l High temperature resistance, anti-strong lightning and anti-strong electromagnetic interference function
l Support port speed limitation, loop detection, and port isolated function
3.Technical Specification
Parameter |
Specification |
Working wavelength |
1310 (TX)/1490 (RX) |
Transmission distance |
20KM |
Optical power |
-1-- +4dBm |
Receiving sensitivity |
-24dBm |
Space of buffer storage |
1.25MB |
MTBF |
100,000 hours |
PON interface type |
SC/PC |
EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
Standard and protocol |
Support IEEE802.3, IEEE802.3u, Support IEEE802.1q VLAN Support IEEE802.1p QoS IGMP Snooping V2 |
Management |
Work with OLT to configure ONU and software upgrade |
4. working environment
Parameter |
Specification |
Power |
DC12/1A (external power) |
Power consumption |
4W |
Working temperature |
-40—75 C |
Storage temperature |
-40—85 C |
Humidity |
5%--90% non-condensing |
Dimension |
26(length)mm * 135mm (width) * 152mm (height) |

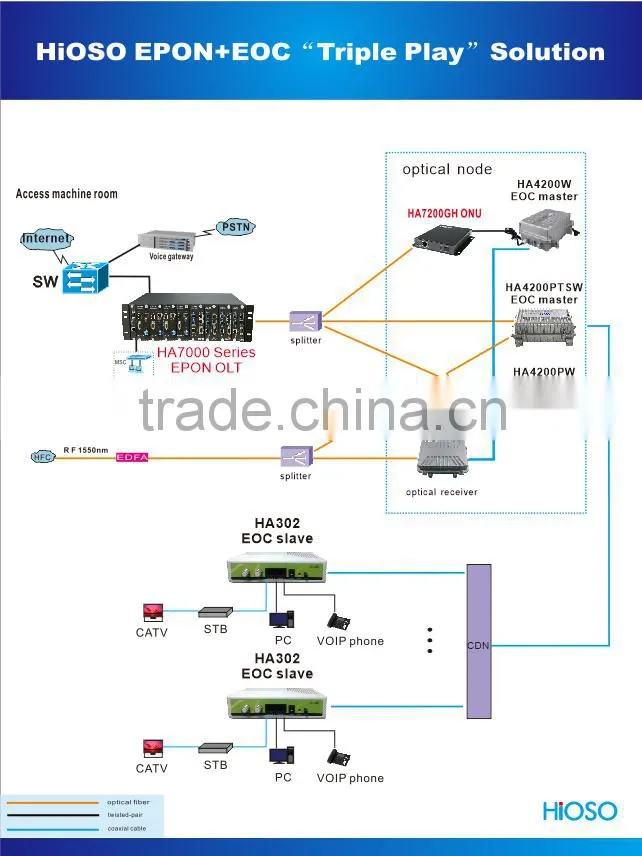

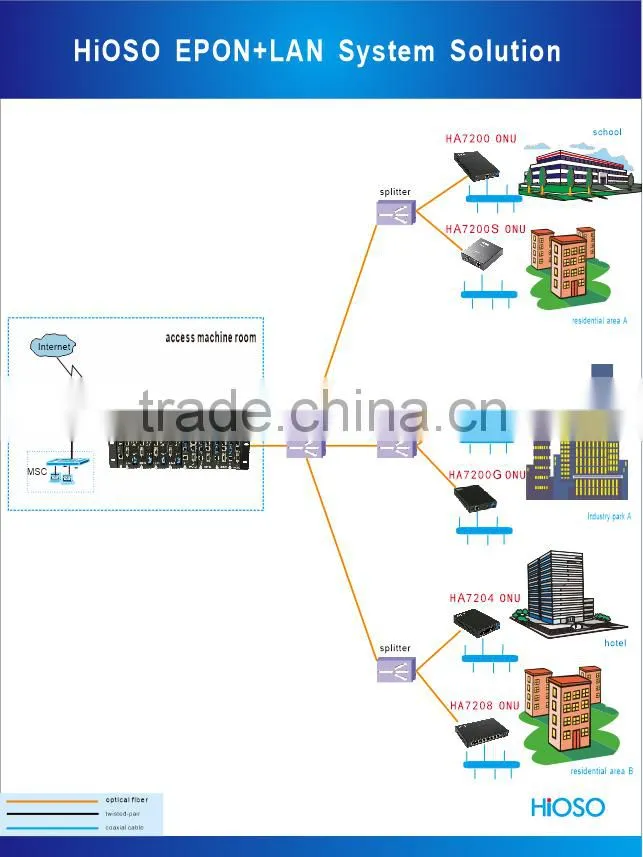

lutions
6. Certificates
