Help Center100M EPON ONU With 4 RJ45 Ports and 1 RF CATV Port
Related Products
-
100Mbps FTTH ONU With 4FE+2POTS/VOIP+CATV EPON ONUUS$ 1 - 180MOQ: 1 Piece -
2016 OEM 100Mbps EPON GEPON ONU With 4FE+2VOIP/POTS+ Wifi ONUUS$ 1 - 100MOQ: 1 Piece
-
2GE RJ45 Or 2GE SFP Uplink Ports 2 PON Ports GEPON EPON OLT Quality ChoiceUS$ 1 - 550MOQ: 1 Set
-
2PON OLT GEPON OLT CardUS$ 350 - 450MOQ: 1 Piece
-
FTTH Application GEPON OLT With 2-pon PortsUS$ 450 - 550MOQ: 1 Piece
Profile

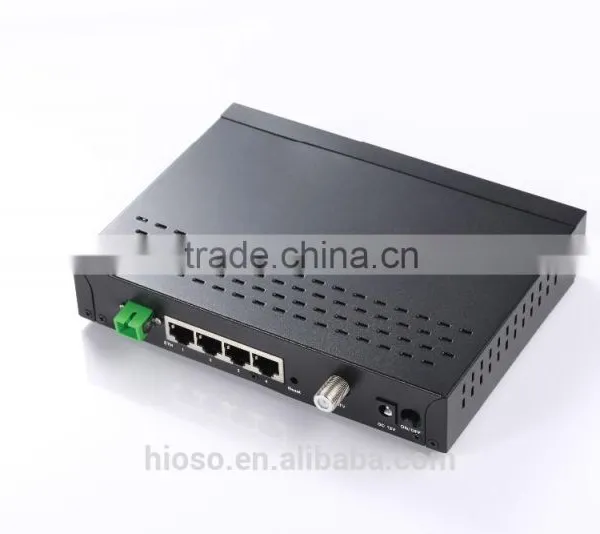

HA404T ONU is designed for FTTH solution. It offers four fixed 10/100MASE-TX ports and one RF port. HA404T ONU integrates CATV optical receiver, support high-speed data and CATV signal.
Feature
l Apply to IEEE802.3/802.3ah
l Support auto discovery and auto register (real-time operation)
l Support DBA and multi types SLA
l Support IEEE802.1D RSTP
l Support IGMP Snooping V2 multi-broadcast function
l Support EMI and ESD identification
l 64bit MAC
l Support VLAN
l Support multi LLID
l Support user end auto time synchronization based at SNTP
l Integrate CATV optical receiver
l Support OAM and remote management
Technical Parameter
Parameter |
Specification |
Wavelength |
DATA :1310nm (TX) /1490nm (RX) TV:1550nm |
Optical power |
-1~ +4 dBm |
Receiving sensitivity |
-25dBm |
Max transmission distance |
20km |
Space of buffer storage |
1.25MB |
MTBF |
100,000 hours |
EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
Standard and Protocol |
Support IEEE802.3, IEEE802.3u, IEEE802.3z Support IEEE802.1q WLAN Support IEEE802.1p QOS |
Network management |
Cooperating with center OLT, implement management configuration and software upgrade to ONU |
Forward bandwidth (MHz) |
47~750/47~860 optional |
Input range of optical power (dB) |
-6~+2 (typical value -1dB) |
Inspect point of optical power |
Digital pipe visual display |
Connector |
SC/APC optional |
Fiber return loss (dB) |
≥45 |
RF return loss (dB) |
≥16 |
Band flatness (dB) |
±0.75dB(550MHz) ±1.2dB(750/860MHz) |
Gain adjustment (dB) |
1~20dB adjustable |
Typical optical power (dB) |
-1.0 |
Number of channels (PAL-D) |
59 |
Main line output level (dB) |
80 (typical value) |
CSO (dB) |
≤-60 |
CTB (dB) |
≤-65 |
Input impedance (Ω) |
75 |
Notice: CNR, CTB and CSO in the table are integrated link index from optical transmitter to optical receiver. For one is CNR=62dB,CTB=87dB,CSO=77dB
CNR Link Loss Index
Link loss |
Receiving power (T) |
Output level ( R ) |
C/N |
CTB |
CSO |
dB |
dB |
dB |
dB |
dB |
dB |
9 |
0 |
100 |
52 |
65 |
60 |
10 |
-1 |
98 |
51 |
65 |
60 |
11 |
-2 |
96 |
50 |
65 |
60 |
12 |
-3 |
94 |
49 |
65 |
60 |
13 |
-4 |
92 |
48 |
65 |
60 |
14 |
-5 |
90 |
47 |
65 |
60 |
Working Environment
Parameter |
Specification |
Power |
DC12V |
Power consumption |
10W |
Working temperature |
-10~55℃ |
Storage temperature |
-40~70℃ |
Humidity |
5%~90% non-condensing |
Dimension |
183mm (length) × 136(width)mm× 32mm (height) |

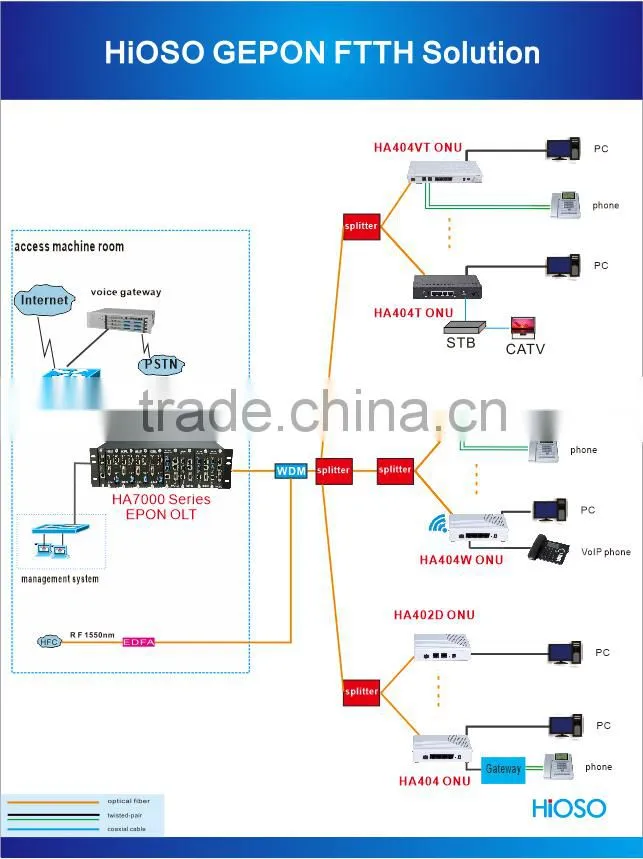

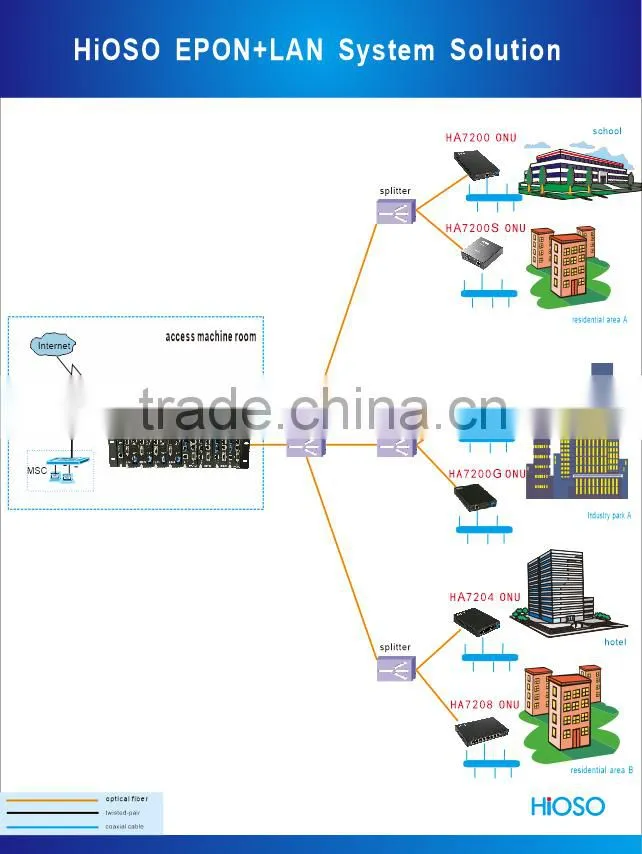

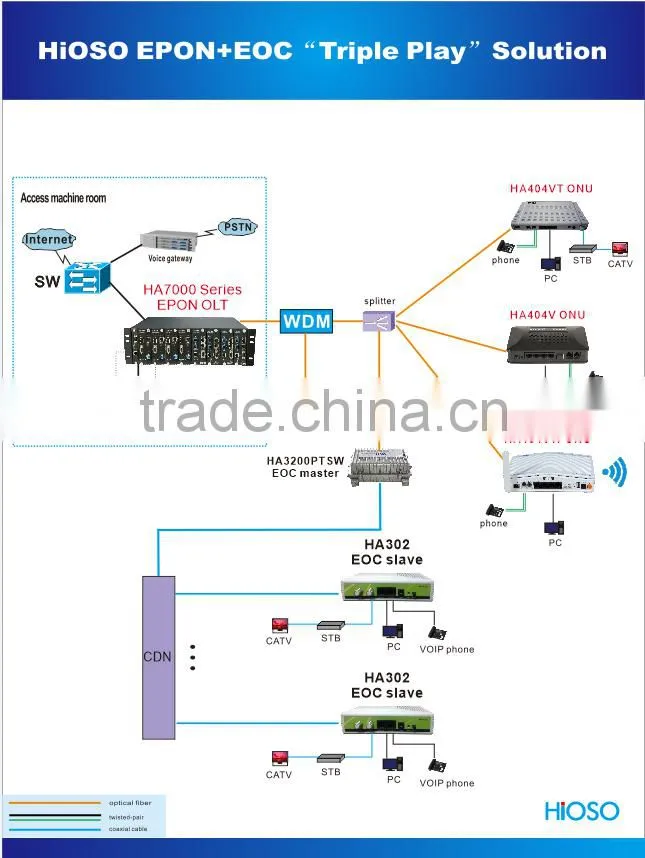

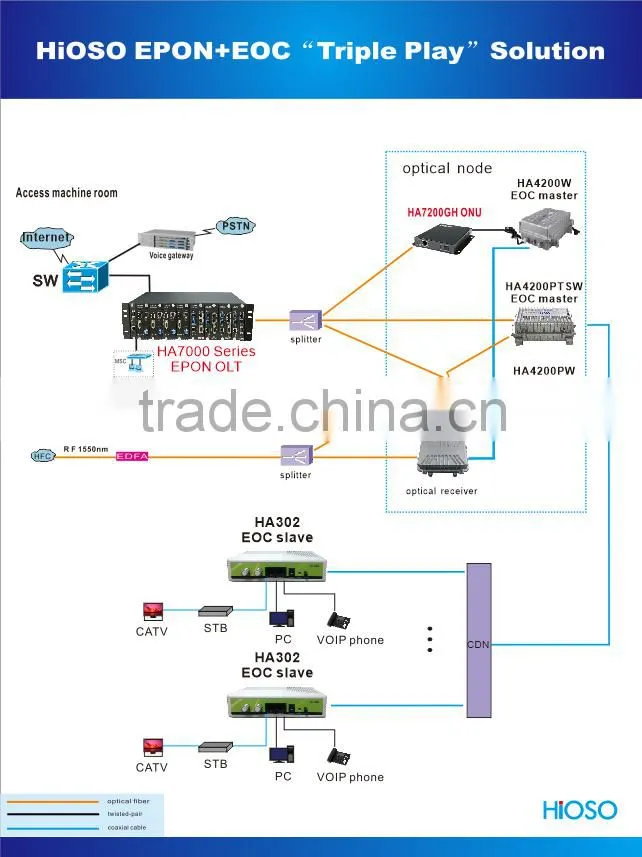

Solutions
