FTTB 8FE RJ45 Ports EPON PoE ONU
Overview
HA7208P ONU is POE product, with eight fixed 10/100Mbps auto-adapted POE ports. It supports IEEE802.3af 15.4W and IEEE802.3at 30W POE standards. It can auto discovery the power receiving devices which support IEEE802.3af/at standard and supply power to it.
To the connected devices which not support PoE, it will auto stop supplying power. HA7208PH supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices. It works with central device OLT to implement integrated management, long-distance fault location and decrease maintenance workload. It is metal casing design and suitable for FTTB/FTTH.
Feature
n Apply to IEEE802.3/802.3ah
n Support auto discovery and auto register (real-time operation)
n Support DBA and multi types SLA
n Support IEEE802.1D RSTP
n Support IGMP Snooping V2 multi-broadcast function
n Support EMI and ESD identification
n Support VLAN
n Support user end auto time synchronization based at SNTP
n Support powerful OAM and remote management
n Support port speed limit, loop detection and port VLAN
n Support state detection and fault location
n Support power failure alarm
n Each PoE port supports to auto discovery the standard power receiving devices
n Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
Technical Parameter
Parameter |
Specification |
Wavelength |
1310(TX)/1490(RX) |
Optical power |
-1~+4dBm |
Receiving sensitivity |
-25dBm |
Max transmission distance |
20 km |
Space of buffer storage |
1.25MB |
MTBF |
100,000 hours |
PON connector |
SC/PC |
EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation) |
Standard and Protocol |
Support IEEE802.3, IEEE802.3u IGMP Snooping V2 Support IEEE802.1q WLAN Support IEEE802.1p QOS |
POE |
Supplying power port: 8 ports Standard: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discover and power/dis-power receiving power device |
Network management |
Cooperating with center OLT, implement management configuration and software upgrade to ONU |
Working Environment
Parameter |
Specification |
Power |
DC48V (external) |
Power consumption |
4.5W, Max POE supplying power 240W |
Operating temperature |
-10~55℃ |
Storage temperature |
-40~70℃ |
Humidity |
5%~90% non-condensing |
Dimension |
28mm(H)×193mm(W)×119mm(D) (external) |
Order information
NO |
Type |
Port |
POE port |
1 |
HA7208PH-8AF |
8 FE + 1 GE PON |
8 FE IEEE802.3af 15.4W |
2 |
HA7208PH-8AT |
8 FE + 1 GE PON |
8FE IEEE802.3af 30W |
3 |
HA7208PH-4AF |
8 FE + 1 GE PON |
4FE IEEE802.3af 15.4W |
4 |
HA7208PH-4AT |
8 FE + 1 GE PON |
4FE IEEE802.3at 30W |

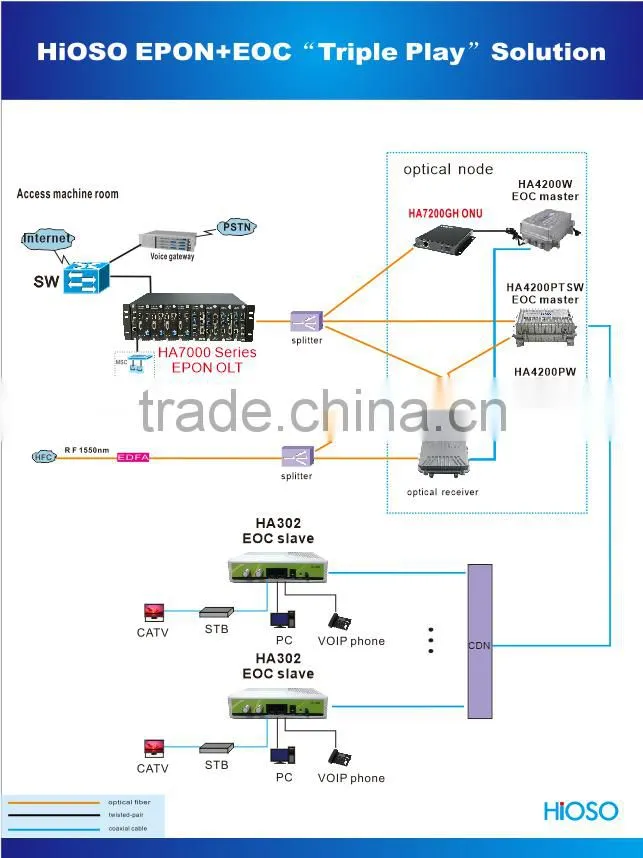

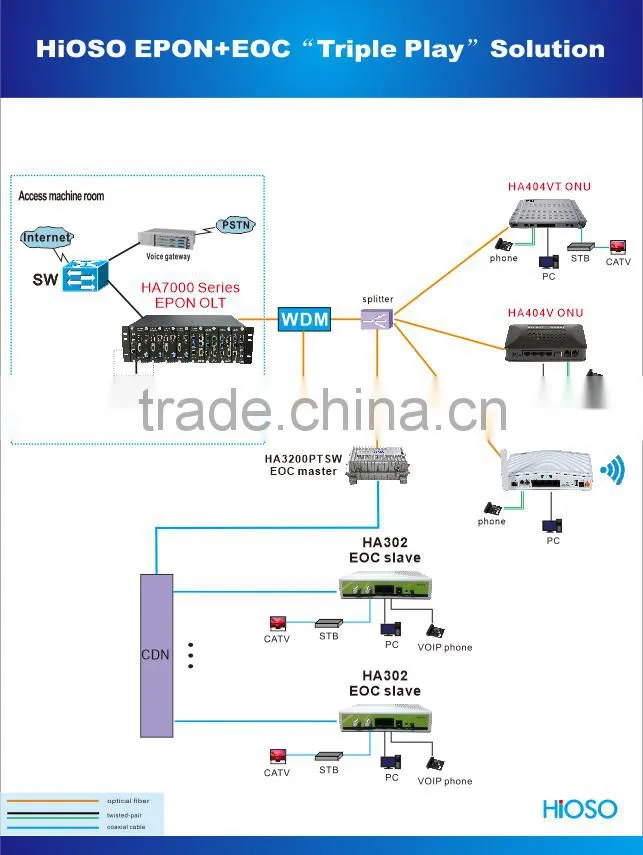

Solutions
Certificates
