Eight Channels Video to Fiber Converter

Eight Channels Video to Fiber Converter thumbnail-1
Eight Channels Video to Fiber Converter photo-1
US$ 100 - 150 MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HiOSO
Model Number:
FOWAY380
Contact Supplier Request Quote Chat Now
Hioso Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HiOSO
Model Number FOWAY380

Overview

HiOSO FOWAY380 8-channel digital video optical transceiver is a small type, transmits 8 channels high quality video, 1channel reverse data in one fiber.



It adopts full digital non-condensing techniques, and supports high-resolution movement and still picture-undistorted transmission.



It is now widely used in security monitoring and control systemhighwayTraffic Control Photographic Systemautomation and intelligent residence.





Character

Industrial-level design with SMT techniques

Full digital transmission in fiber, multi-service flexible configuration on the same platform

Supply desktop and integrated card type

Based on large scale integrated circuit

Transmission in single-fiber, dual-fiber is optional

Fully compatible with PAL/NTSC/SECAM

Support reverse asynchronous data, transmission rate is up to 115.200Kbps

Support RS232RS422RS485 or Manchester code





Technical specification

Fiber port

Port                            FC/SC/ST optional

Wavelength                  Single-mode1310nm/1550nm

                                   Multi-mode 850nm/1310nm

Transmission power      ≥-9dBm

Receiving sensitivity      -34dBm(bit error rate<10-11)

Transmission distance    Single-mode 20/40/60/80/100/120Km

                                    Multi-mode 2Km



Video

Signal type                                  PAL/NTSC/SECAM

Nominal input/output lever             1Vp-p

Nominal input/output impedance    75Ω

Bandwidth per channel                  8 MHz

Sample frequency                        16M/Hz

Quantization                                8bit

Connector                                    BNC interface



Asynchronous data

Connector                 RS232/RS485/RS422/ Manchester code

Working mode         Full/Half Duplex

Data rate                  115.200Kbps

Bit error rate              <1×10-9

Data connector          RJ45 interface



Switch value

Number of channels   8 channels

Working mode           set open/shorted circuit alarm

Connector                 RJ45 interface



Operating environment

Power supply                   AC180V~240V; DC-48V; DC+24V

Operating temperature      0-50

Storage temperature         -40-+70

Relative humidity              95%



Dimension

105mm(L)*92mm(W)*26mm(H)



Order information

Type

Function

Specification

FOWAY380T/R-RD1-S20F

8V↑ + 1D↓

8-channel video and 1-channel reverse data, 20 kilometers FC

FOWAY380T/R- S20F

8V↑

8-channel video, 20 kilometers FC

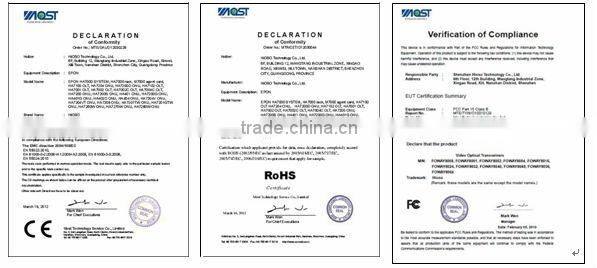

Certificates

eight channels video to fiber converter
