1.Advantage of SGB asphalt shingle
1. Asphalt shingles are inexpensive and versatile, which probably explains why over 80% of roofs are made of asphalt.
2. They are economical to buy and install, work well with various roof types and pitches, and come in a wide variety of costs, colors, styles and quality.
3. They are relatively easy to cut to size, fit together and attach to the roof and are compatible with various types of flashing and edging.
4. In addition there is no need for any custom accessories for the roof edges, vents or chimney flashing.
5 Fiberglass shingles are thinner, more lightweight and have better fire ratings.
6. Fiberglass shingles has no pollution, and with heat, wind and humidity resistance, can absorb raindrop and noise.
2.specification of SGB asphalt shingle
Specification: | |
Name |
SGB asphalt shingle |
Length |
1000mm(±3.0mm) |
Width |
333mm(±3.0mm) |
Height |
>=2.6mm/5.2mm |
Tensile strength(longitudinal)(N/50mm) |
>=530 |
Tensile strength(transversal)(N/50mm |
>=550 |
Heat Resistance |
No flow, slide, drippage and bubble(90°C) |
Flexibility |
No crack being bent for 10°C |
Nail Resistance |
78N |
Resist To Tearing |
>100N |
Weather Explosure |
145mm |
Average Life Time |
20-30 years |
Wind Resistance |
98km/h |
MOQ |
1×20GP or Less |
Payment |
TT or LC at sight |
Packing: |
PE bag with fumigated wood pallet, 21pcs/bundle/16pcs/bundle |
Square meters/bundle |
3.0 square meter/bundle 2.32 square meter/bundle |
3.structure of SGB asphalt shingle
Glass Fiber Mat
It can make the product bear the vibration caused in production, transportation, construction and use.
l Weathering-Grade Modified Asphalt Coating
It makes asphalt shingle resist wind and rain erosion for long time and keep product performance in cold and hot weather, and play a role in moisture resistance oxidation
Colored Mineral Surface Granules
UV resistance and anti-aging, strengthen fire resistance performance and break heat conduction.
Colored mineral of asphalt shingle surface can protect asphalt shingle surface from exposure to direct sunlight, so that aging of asphalt shingles is not easy.
Adhesive Self-Pastern with Hot Melt
There is a self adhesive tape in the back of shingle, after the laying in the roof, self adhesive tape can be activated under the sun exposure, resulting in viscous, which makes the asphalt shingle bonding together
Quartz Anti-Slip Sand
Usually it is limestone, it can enhance the fire performance of products.
4.five types of SGB asphalt shingle

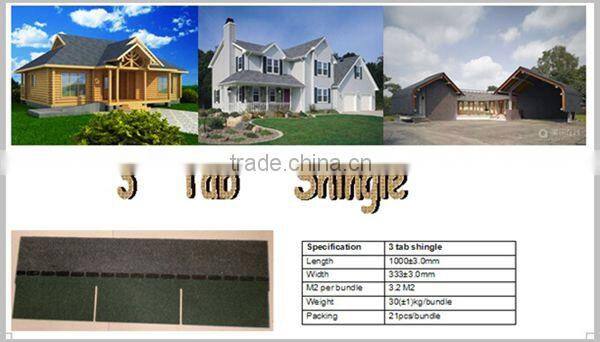

This style is Fiberglass Plane Standard Tile,it has high strength and rigidity ,which more
lighter of weight and convenient than traditional clay tile,if you use our fiberglass asphalt roof tile,it will help you save a lot of costs to employ laborers to lay the tiles for you. asphalt shingle is a flexible , free cut and can cover different roof shape and basement of the roof .it can also used in tapered ,curved ,spherical complex structures sloping .

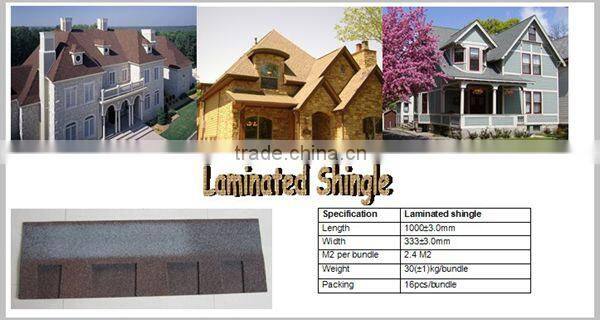

The double layer shingle has changed traditional roof to a complete new look .Its unique technology creates beautiful relief effect,irregular shape and color patchwork,reflecting a distinctive classical beauty,the full adhesive bitumen mastic,which make the laminated shingle outstanding.So its popular all over the world.

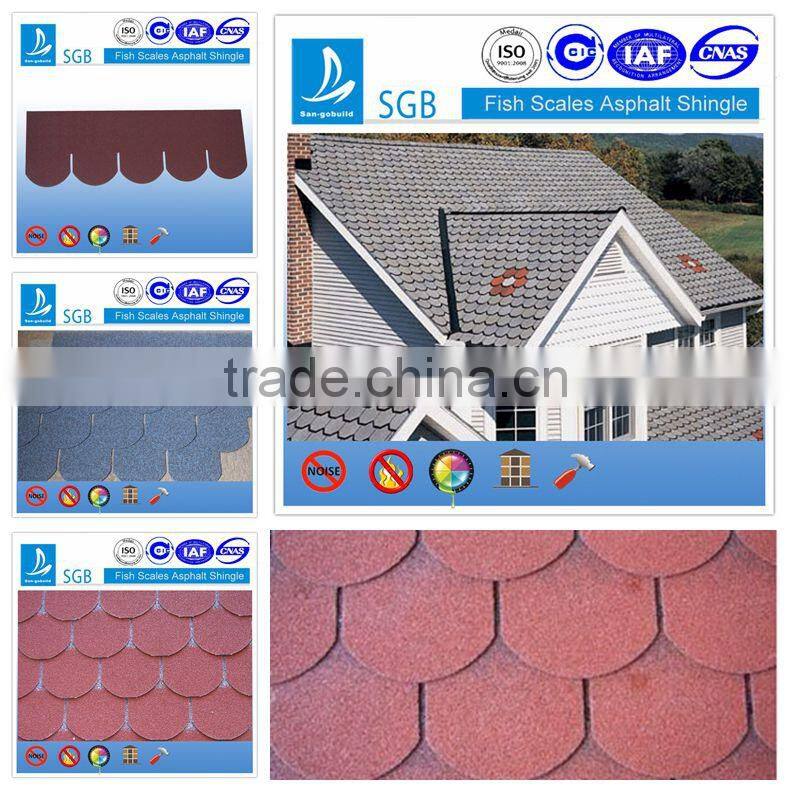

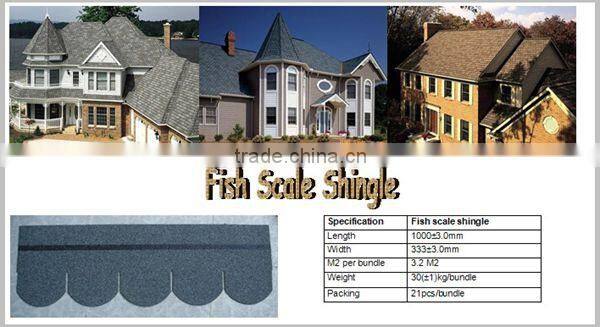

the design of the fish-scale shingle is inspired by traditional ceramic tiles.It's specialshape and curve will add unlimited graceful to the surface.And is very popular all over the world,among the many brilliant colors there must be a right one for you.

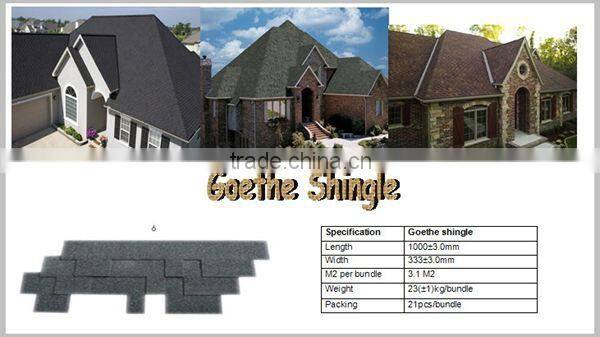

it belongs to single layer asphalt roofing shingle,but it shows the unique double-decker effect.Irregular staggered overlapping shape add a variety of colors and infinite movement to the roof.The full adhesive bitumen mastic increase the lifetime and the wind resist of the shingle.

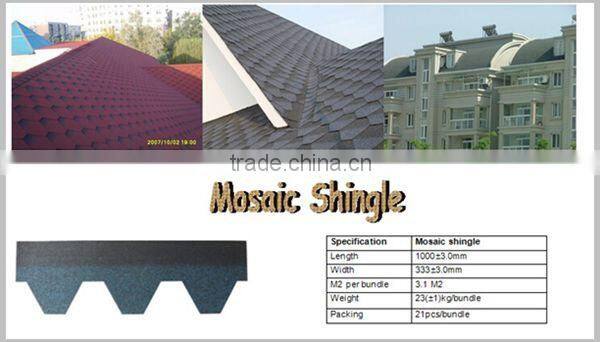

The unique combination of hexagons and connected shingle look elegant .There-dimensional shading design,showing spectacular mosaic effect.The full adhesive bitumen mastics enhance the wind resist and waterproof.24 kinds of color can be chosen .Among the many brilliant shape and colors there are must be a right one for you .welcome to contact us for ordering your favorite products.
5.Color of SGB asphalt shingle
6.main accessories of SGB asphalt shingle
our customers:
