3 axis gantrymilling machinery LM-2018
one. Specifications of 3 axis gantrymilling machinery LM-2018
Machine Type |
unit |
LM2018 |
Worktable | ||
Worktable(length×width) |
mm |
2000×1400 |
Maximum load of table |
kg |
8000 |
T-slot(number of slot × slot width × pitch) |
mm |
7-22×200 |
Triaxial itinerary | ||
Gantry width |
mm |
1800 |
Travel for X/Y/Z axes |
mm |
2000/1800/900 |
Distance from spindle nose to table surface |
mm |
150-1050 |
Feed system | ||
CNC system |
|
FANUC-Oi MD |
Rapid shift of axes of X/Y/Z |
m/min |
12/12/10 |
Maximum cutting feed speed |
m/min |
7 |
Automatic tool transform system(CNC milling without) | ||
Standard tool quantity |
|
BT50/24 |
The largest diameter cutter knife/length |
mm |
Φ110/300 |
Tool exchanging manner |
|
Air-operated |
Maximum tool weight |
kg |
18 |
Precision | ||
Positioning accuracy |
mm |
0.021 |
Accuracy of repeated positioning |
mm |
0.02 |
Guide form and specifications | ||
X-axis guide specifications |
|
Roller linear guide |
Y-axis guide specifications |
|
Roller linear guide |
Z-axis guide specifications |
|
Roller linear guide |
Spindle system | ||
Spindle specifications(model/installation diameter) |
|
BT50/Φ190 |
Belt drive milling head, the maximum speed |
r.p.m |
6000 |
Motor power of spindle |
kW |
22/26 |
Air pressure | ||
Requirements for air compressing |
kg/cm² |
≥6 |
Air pressure flux |
m³/min |
≥0.5 |
Machine specifications | ||
Integrated weight(kg) |
kg |
19000 |
Overall dimension(weight×width×height) |
mm |
5400×4050×3870 |

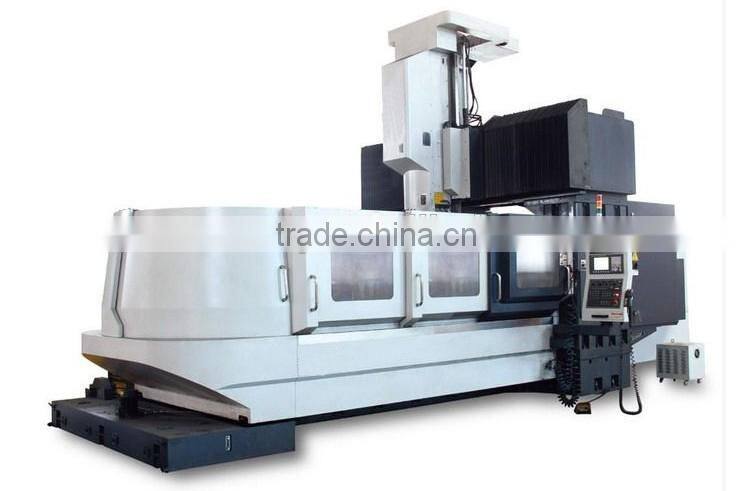

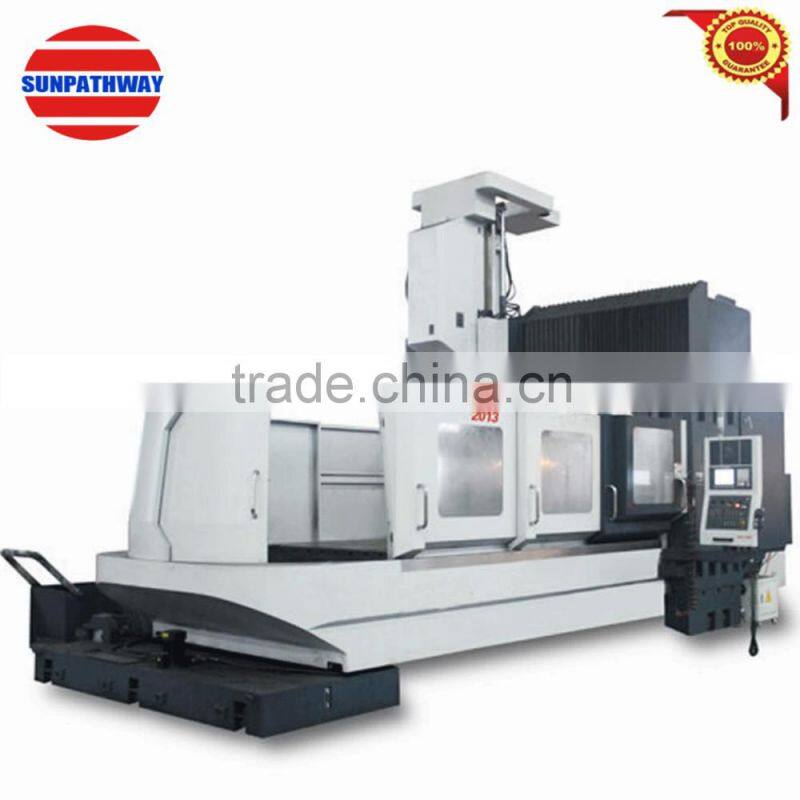

two. Pictures of high rigidity cnc metal cutting machine LM-2018
Three. Production capacity
|
Company Brief Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service. |
|
Assembly shop of cnc engraving and milling machine |
|
|
Graphite engraving and milling machine(complete) which exported to Brazil DX7070
Angle to open the door, in order to hoist workpiece directly by customer
High speed processing of graphite electrodes or electrode parts |
|
|
Light-weight gantry type engraving and milling machine We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves. LM-1090, X,Y,Z travel: 1000×900×430 mm LM-1311, X,Y,Z travel: 1300×1100×430 mm LM-1613, X,Y,Z travel: 1600×1300×550 mm The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time. |
|
|
Small CNC gantry type engraving and milling machine LM-1090, X,Y,Z travel:1000×900×430 mm LM-1212, X,Y,Z travel:1200×1200×700 mm LM-1612, X,Y,Z travel:1600×1200×700 mm Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.
|
LM-1612 with tool changer, with oil cooling for spindle |
|
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG (Korea), Brazil, Argentina, Mexico,Turkey and other countries .All machines runs well,they have not broken till now, we always trust”no maintenance service is the best service”. |
|
|
Gantry machining center Using famous brand gantry machining center,is the key point to guarantee the precision and surface finishment of machining face. |
|
|
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine. |
|
|
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn. |
|
|
Detection of assembling In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine. |
|
Precision detection |
|
|
Laser inspection equipment Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines. |
|
