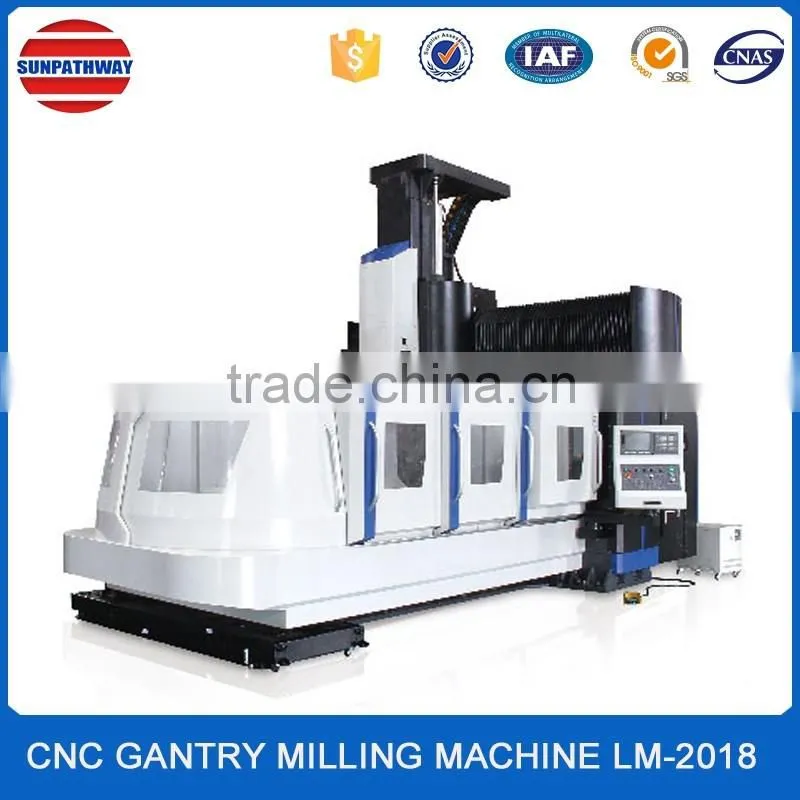

cnc gantry milling machine in china LM-2018
Machine Type |
unit |
LM2018 |
Worktable | ||
Worktable(length×width) |
mm |
2000×1500 |
Maximum load of table |
kg |
8000 |
T-slot(number of slot × slot width × pitch) |
mm |
7-22×200 |
Triaxial itinerary | ||
Gantry width |
mm |
1800 |
Travel for X/Y/Z axes |
mm |
2000/1800/900 |
Distance from spindle nose to table surface |
mm |
150-1050 |
Feed system | ||
CNC system |
|
Mitsubishi M70 |
Rapid shift of axes of X/Y/Z |
m/min |
12/12/10 |
Maximum cutting feed speed |
m/min |
7 |
Automatic tool transform system(CNC milling without) | ||
Standard tool quantity |
|
BT50/24 |
The largest diameter cutter knife/length |
mm |
Φ110/300 |
Tool exchanging manner |
|
Air-operated |
Maximum tool weight |
kg |
18 |
Precision | ||
Positioning accuracy |
mm |
0.021 |
Accuracy of repeated positioning |
mm |
0.02 |
Guide form and specifications | ||
X-axis guide specifications |
|
Roller linear guide |
Y-axis guide specifications |
|
Roller linear guide |
Z-axis guide specifications |
|
hard guide |
Spindle system | ||
Spindle specifications(model/installation diameter) |
|
BT50/Φ190 |
Belt drive milling head, the maximum speed |
r.p.m |
6000 |
Motor power of spindle |
kW |
15/18.5 |
Air pressure | ||
Requirements for air compressing |
kg/cm² |
≥6 |
Air pressure flux |
m³/min |
≥0.5 |
Machine specifications | ||
Integrated weight(kg) |
kg |
19000 |
Overall dimension(weight×width×height) |
mm |
6195×4200×4580 |
1. The body of machine is treated by stress and precise finish, profesionally install imported parts according to international standard.
2. BT50 spindle feed cutting reach 3mm and more, it is super machine tool for producing products. Spindle box part use double hydraulic balance mechanism, to make sure Z axis up-and-down motion smooth.
3. Three axis use high precision high rigid linear rail whoes width is more than 65mm, ballscrew are from Taiwan Hiwin C3 grade high precision ballscrew, the gap between axis are eliminated, increase the transmission accuracy, to make sure each axis has good quick positioning and repeated positioning. The machine tool has high efficiency and high performance which is more suitable for machining all kinds complex surface parts, especially for manufacturing and machining
high precision moulds. The worktable is total travel support design, multi group sliding blocks, to make sure heave load and good precision retentivity.
4. Use positive displacement oil distributor, timing and ration oiling every lubrication parts, to make sure lubricating each parts equably, reduce slide grinding resistance effectively.
5. X,Y,Z three axis connect AC servo motor to precision ballscrew by Germany high precision and none tooth space coupling, the bearing
of ballscrew use high precision high rigid bunching angular contact ball bearing.
6. Cnc gantry milling machine has been widely used in manufacturing industry,car industry, communication industry, instrument industry and others, and has absolute advantage which can not matach by cnc vertical machining center.
