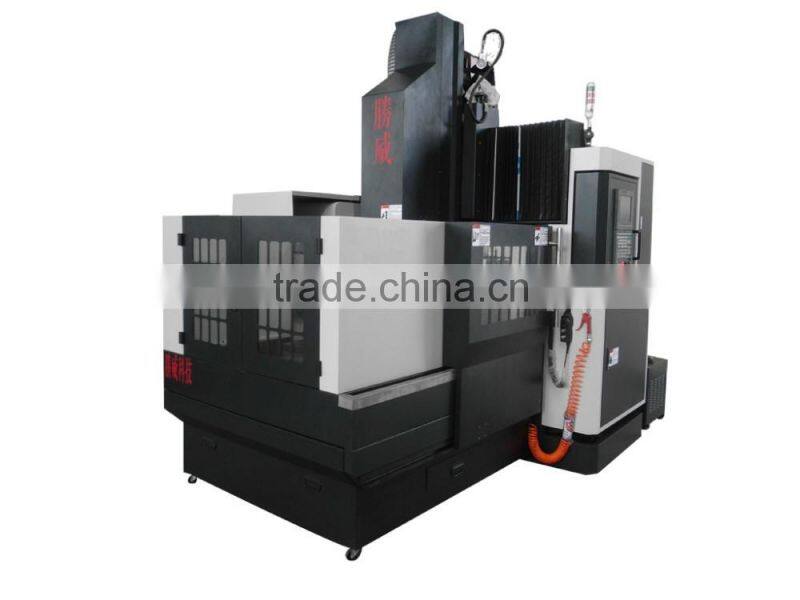

LM1090 heavy loading milling machine with cnc
- 10 Set / Sets per Month
- SHANGHAI
- T/T
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Sunpathway |
Model Number: | LM-1090 | Type: | Other, gantry type | CNC or Not: | CNC |
Voltage: | 380V or chose by customer | Power(W): | 50HZ or chose by customer | Dimension(L*W*H): | 2800*2200*2800mm |
Weight: | 5000kg | Certification: | ISO9001, ISO9001 | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Item | Unit | SW-LM1090 |
Working table | mm | 1060×800 |
T-slot | mm | 5-18 |
Spindle speed | r/min | 3000-18000/15000/servo spindle 8000/10000 |
Spindle power output | KW | 5.5/7.7/11 |
Spindle(tool diameter range) |
| Φ3-20/BT30 ER32/BT40 servo |
X axis | mm | 900 |
Y axis | mm | 1000 |
Z axis | mm | 420 |
The minimum distance spindle to table |
| 70/220 heightening |
Gantry height allowed | mm | 490/640 heightening |
Gantry width | mm | 944 |
Model of screw |
| 4010/4010/4010 |
Model of line rail |
| X,Y,Z:H35 |
Maximum speed | mm/min | 15000 |
Positioning precision | mm | 0.01/300 |
Repeat positioning precision | mm | 0.005 |
The working table maximum load weight | kg | 1000 |
Machine weight | kg | 5000 |
(1). Whole resin sand of high quality casting,export to DMG company (Germany) for six years continuously and TOSHIBA in Japan,after stress relieving and precision finish,key position use import components and install according to international standard.
(2). Our three axis precision grade high rigid line rail use HIWIN(Taiwan) or PMI,C3 grade precision double nuts ballscrew after pre –tight eliminate the intervals between axis,increase the transmission accuracy,make sure the favorable positioning accuracy and resetting accuracy of each axis.
This machine is suitable for machining each complex curved surface parts in machinery industry for its high efficiency and performance,especially for high precision mould.
(3). we use positive displacement oil distributor,timing and ration to supply oil to each lubrication housings,make sure the uniformity and lubrication of each lubrication surface,decrease slide grind resistance effectively.
(4). X,Y,Z three axis exchange servo motor contact precision ballscrew through high precision no backlash,ballscrew and bearing use high precision and rigid like group angle contact ball bearing.
(5). repeating accuracy:0.003mm.
