Home > Manufacturing & Processing Machinery > Metallurgy Machinery > INT'L "OHA" Brand High Quality T12 TDF Duct Flange Forming Machine

INT'L "OHA" Brand High Quality T12 TDF Duct Flange Forming Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

OHA

Model Number:

T12

Contact Supplier Request Quote Chat Now

OHA Machinery Industry & Trade (Shanghai ) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name OHA

Model Number T12

After-sales Service Provided Engineers available to service machinery overseas

INT'L "OHA" Brand High Quality T12 TDF Duct Flange Forming Machine

Product Description

Manufacturing: OHA MACHINERY GROUP

TRADE: OHA INDUSTRY & TRADE (SHANG HAI )CO.,LTD

Address: Rm. 513,No,333 JinGang Road, Pudong District, Shanghai, 201206, China

Tel: 0086-21-58760289 Fax: 0086-21-58760089

Skype: sales1.ohachina

Web:

Facebook: /ohachina

Youtube: /channel/UCRAhjJk_hAUEUjfqKrC_CFg

E-mail: sales1* sherry*

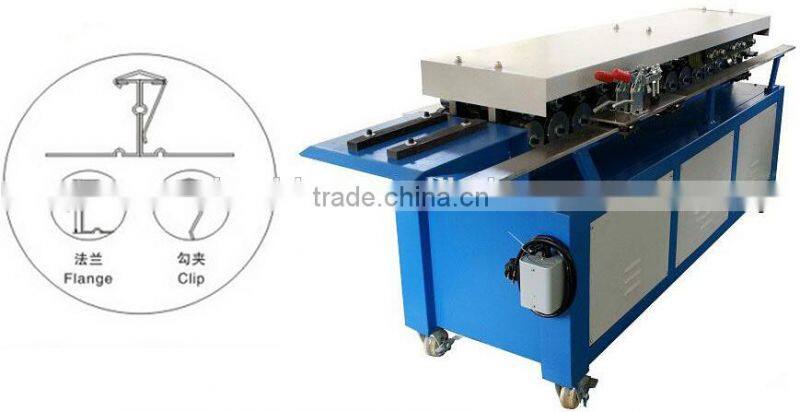

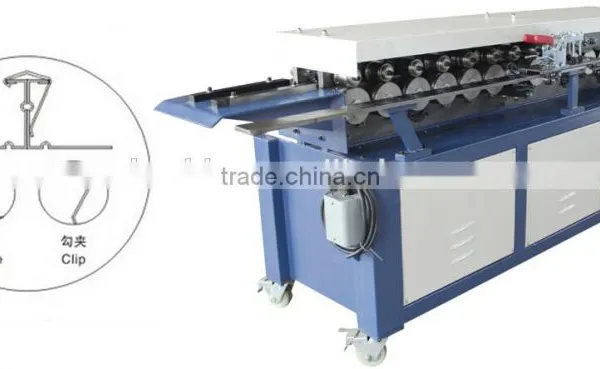

TDF flange forming machine feeds at both sides and takes shape simultaneously. Which one side forms TDF flange, and the other side forms the clip. This machine can produce rapidly flange of square duct, which features in low-cost, high installing efficiency and convenience for mass production. So it is very suitable for making rectangle ducts with big section.

TDF flange forming machine is the most widely-used and traditional machinery applied in the manufacture of wind-tubes. However, our products have been improved based on the traditional production, and more customer-oriented, having stepped into the automatic alteration over different functions, which can totally get rid of the trouble in manual change of rollers. The only problem for you is to decide which roller to choose. With the unique design of bending part and the endurable alloy-rollers, it can save the working space and guarantee its lifetime. Besides, our products have combined several functions to maximize the working efficiency, and have been installed with high-strength and endurable needle-alike rolling bearings, which can greatly ensure the precision and accuracy during the working process. With the reasonable weight, the convenience in movement and the adaption to different working environments, our products have found great popularity in international market.

Technical Datas for T12 TDF Duct Flange Forming Machine

Model	Motor Power	Processing thickness	Machine Weight	Dimensions (LWH)
T12	2.2kW	0.6-1.2mm	1050kg	3520750830mm
T15	3kW	0.8-1.5mm	1210kg	3550780890mm

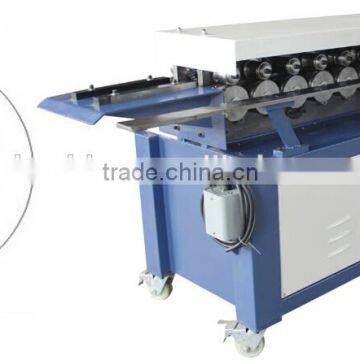

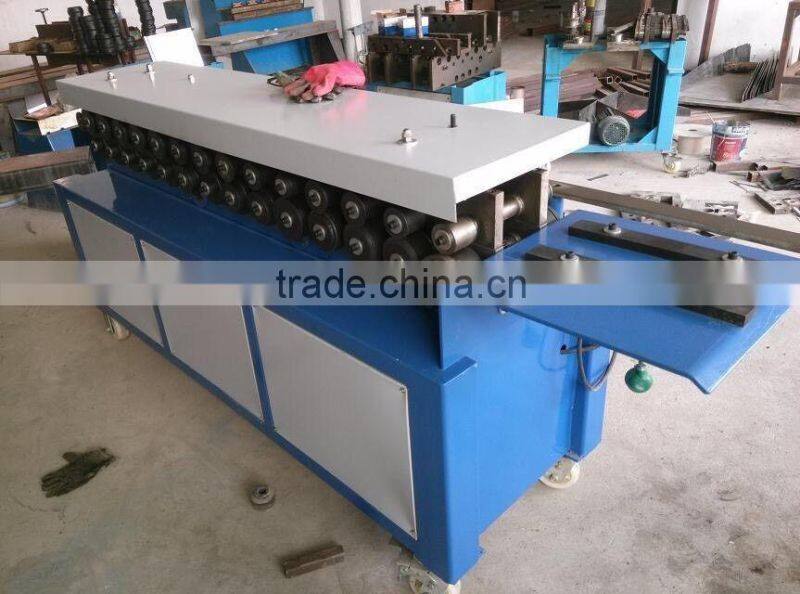

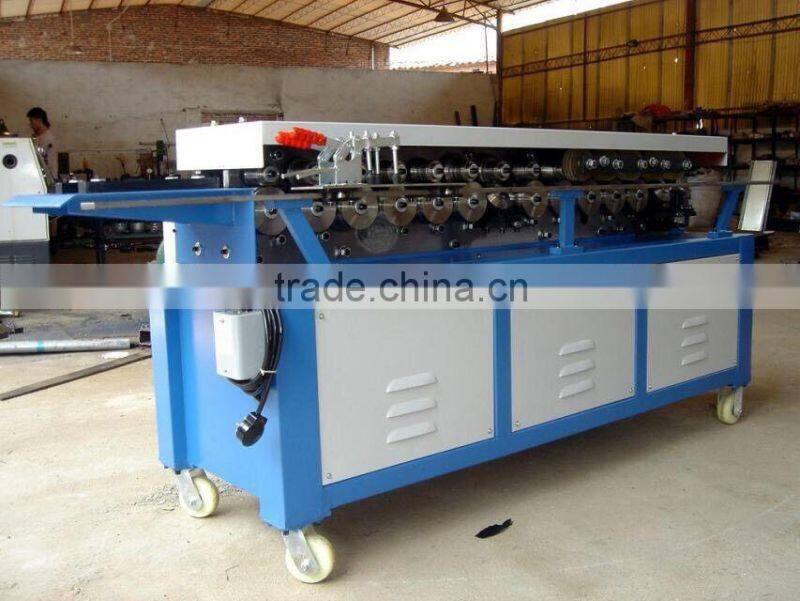

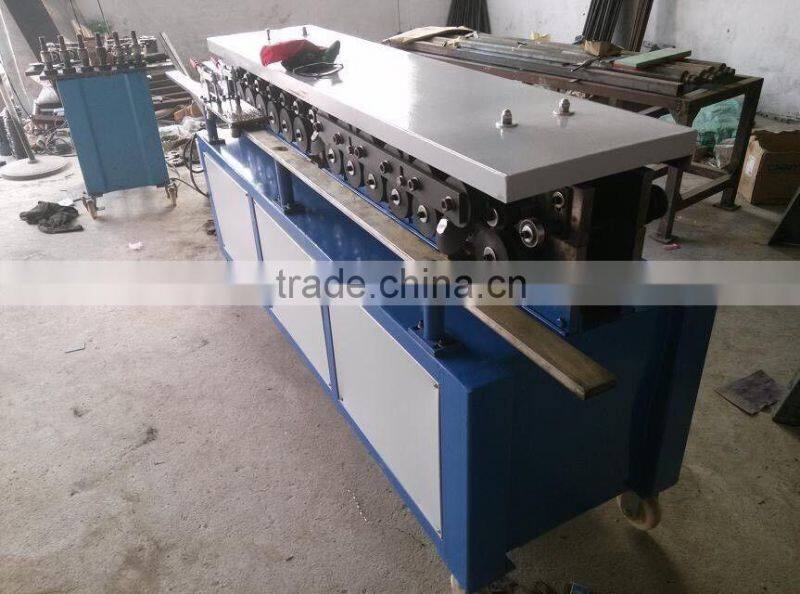

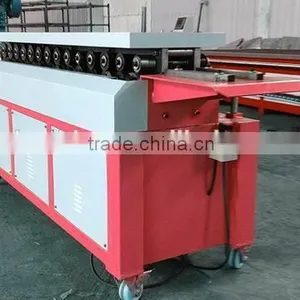

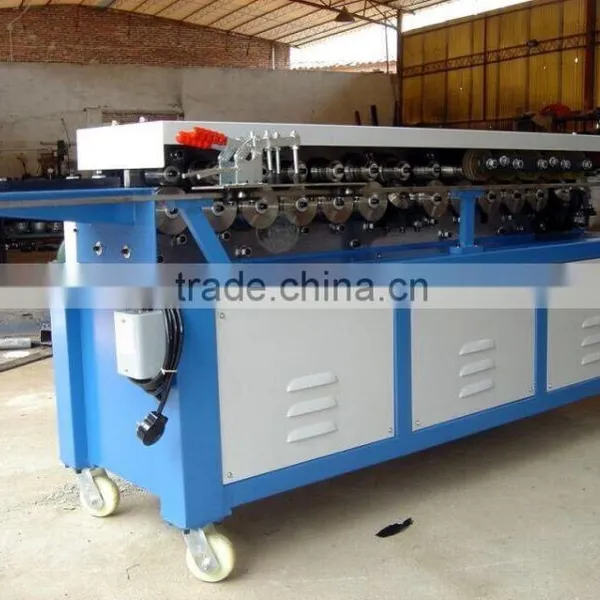

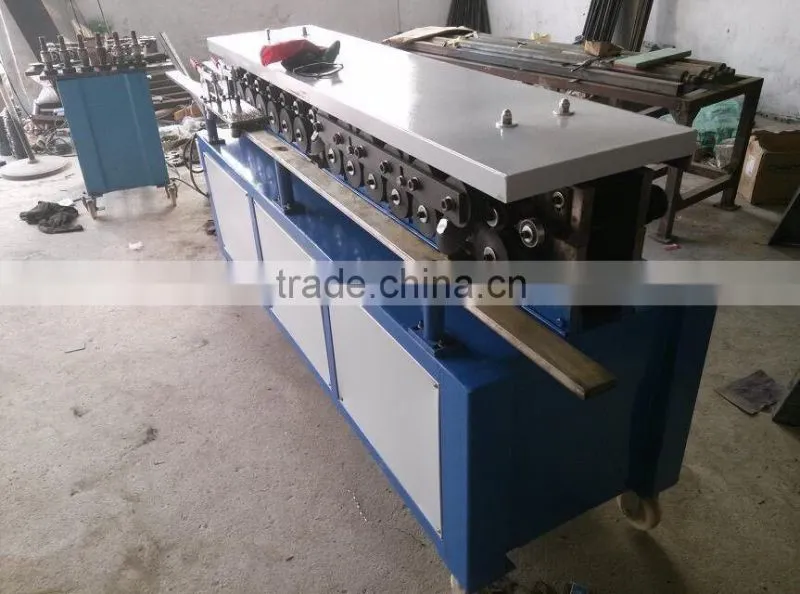

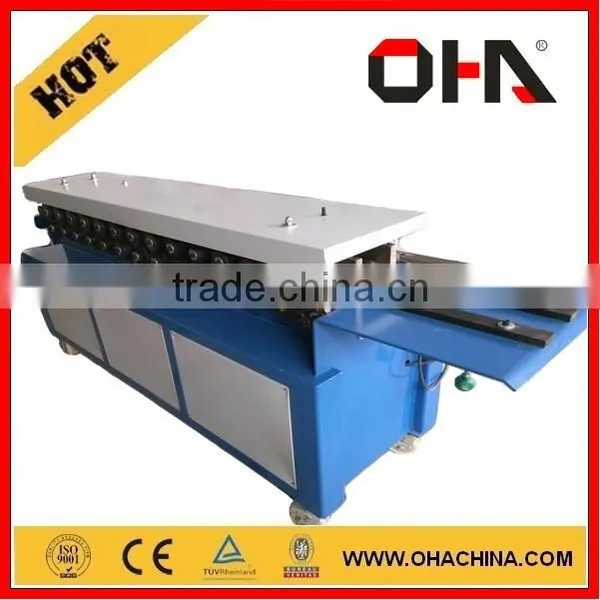

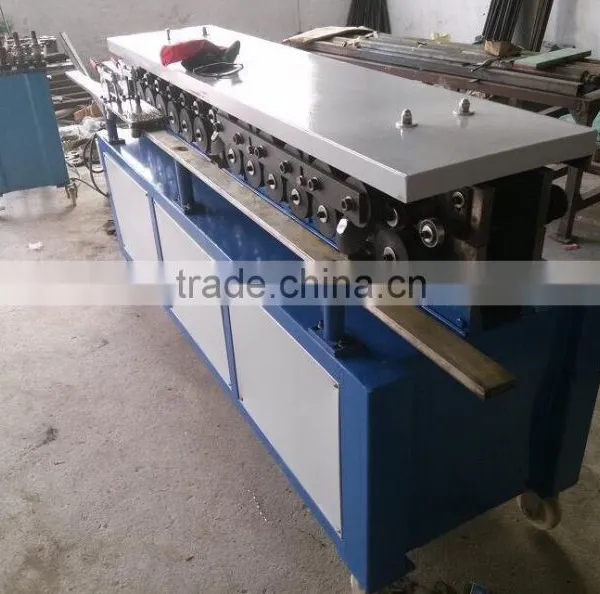

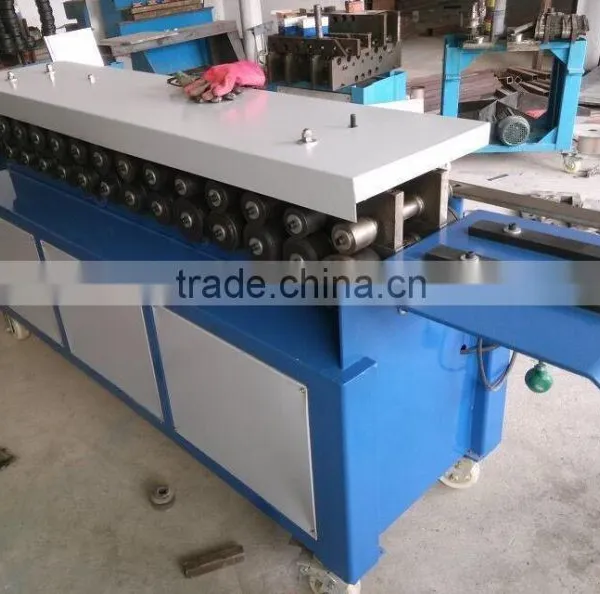

Reference Photos for T12 TDF Duct Flange Forming Machine

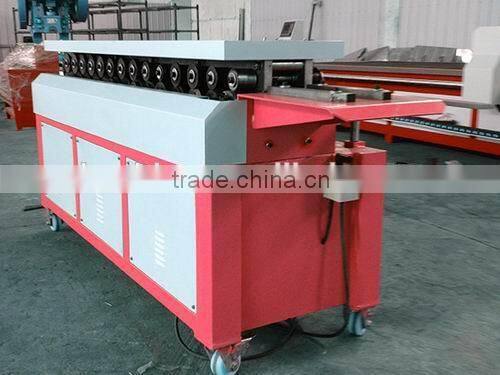

Color Optional

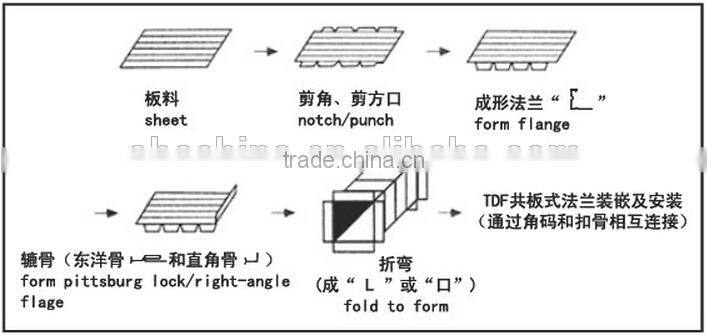

Work Flow

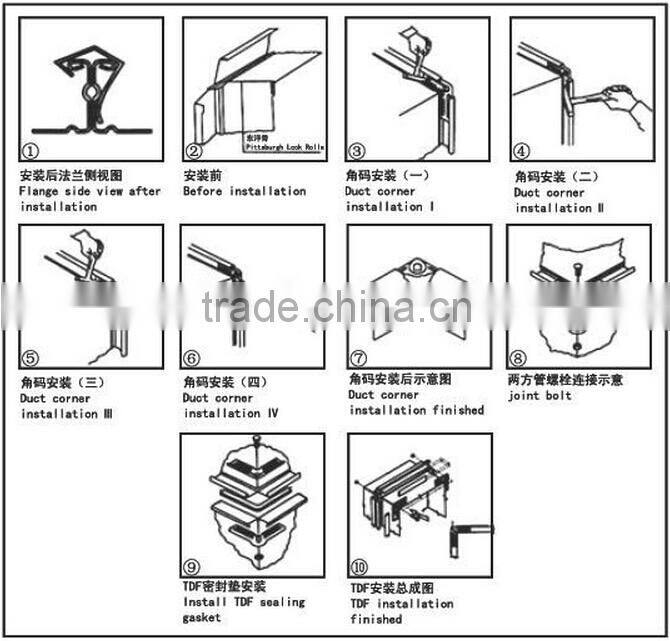

Installation

Color	Any color is available
Logo	Customized Logo for High Quality Model T12 TDF Duct Flange Forming Machine
MOQ	Small MOQ,1 SET for High Quality Model T12 TDF Duct Flange Forming Machine
Delivery Time	(1) 30-60 days –If you want to customize your request (2) 25 days – For our Standard
OEM Accepted	Yes
Certification available	Yes
CNC System	Delem, ESTON ……
Packing Details	20GP, 40GP, 20 OT or LCL
Production Capacity	500/sets High Quality Model T12 TDF Duct Flange Forming Machine Per Month
Payment Term	L/C, T/T, D/A, WESTERN UNION, MONEY GRAM

Packaging & Shipping

Our Services

You can contact me at anytime,we will provide you fast and professional service

Advantage

1. Competitive price: It is can meet your budget and best-selling business very well.

2. OEM Accepted: We can produce any your request design.

3. Good Service: We treat clients as friends.

4. Good Quality: We have strict quality control system. Good reputation in the market.

5. Fast & Delivery: We have big discount from forwarder (Long Contract).

Our Innovation

Quality & Service: At OHA, our #1 priority has always been providing our clients with great quality products and superior customer service.

Quick lead Time: We’re dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met

Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you!

Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.

Special Offers:In order to maintain our competitive edge, we are constantly running special offers on our Best –selling press brake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money.

General Order Information

We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
