Help CenterAnti-follow Tripod Turnstile for Government Security Gate
Related Products
-
Fujica Parking Ticket Machine / Vehicle Ticket DispenserNegotiableMOQ: 1 Set -
Excellent Quality Arm Drop Turnstile With RFID ReaderNegotiableMOQ: 1 Set
-
Parking Ticket Dispenser of China Top Brand FujicaNegotiableMOQ: 1 Set
-
Parking Guidance System(PGS)NegotiableMOQ: 1 Set
-
Parking Pay-on-foot StationsNegotiableMOQ: 1 Set
Product Attribute__________________________________________________________________________________
Model |
FJC-Z3248 |
Item |
Semi-auto Tripod turnstile |
Power consumption |
50W |
Housing Size |
580x280x950mm |
Housing material |
1.5--2mm, #304 Stainless Steel, Matt finish |
Channel width |
550--600mm |
Arm length |
500mm |
Arm turning angle |
120° |
Pass speed |
25 persons/min. |
Power supply |
220Vac 50Hz or 110Vac 60Hz |
Input signal optional |
DC12V level signal or DC12V pulse signal |
Communication interface |
RS485 |
Arm drop while power off |
Yes |
Working temperature |
-30°C~+70°C |
Working environments |
Indoor, outdoor |
Relative humidity |
≤95% coagulation free |
MCBF |
2,000,000 cycles |
Warranty |
1 year |
Outside packing |
Plywood box 700x400x1120 mm |
Pieces per box |
1 pcs / box |
Gross weight |
76KG |

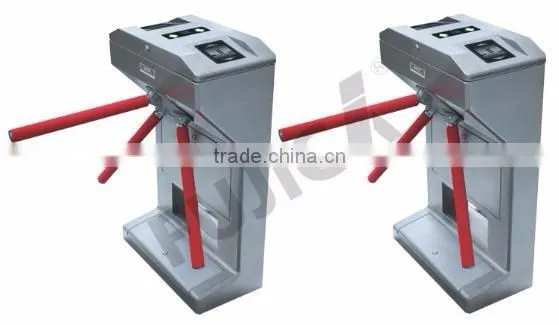

Product Displa__________________________________________________________________________
Dimension_____________________________________________________________________________
Product Details____________________________________________________________________________________
Fujica pedestrian control tripod turnstile, can be easily to integrate with other read/write devices and systems, can fulfill
functions like entrance control, time attendance, pedestrian volume control etc. It is widely used for applications like
stadium, apartment, gym, museum, station, library and factory etc.
1.Provide normally open / normally close to satisfy management request.
2.Compatible with RF card readers, bar code readers, biometric readers, push button...
3.Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function
to protect pedestrian.
4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection
system etc.
5.Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the turnstile
opened. The passing time is adjustable.
6.Equipped with international interface, can be easily integrated with other R/W device and managed through remote
supervision computer
7.(Optional) Support arm drop while power failure.
8.(Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
9.One direction or bi-direction is optional.

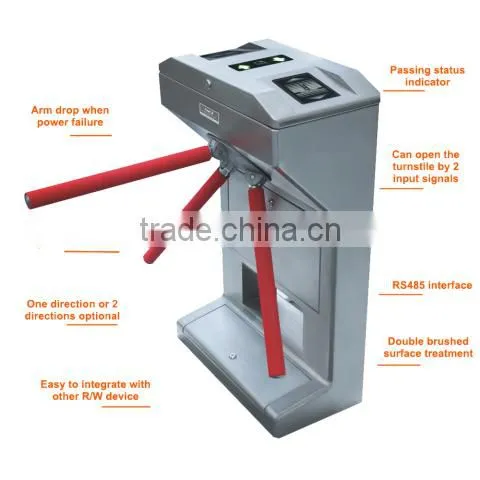

Advantages
_______________________________________________________________________________________________
- Matt finished housing surface, dustproof and rainproof design for outdoor use.
- Highly integrated solenoid mechanism, 100% heavy duty operation.
- Drop arm when power off, for emergency use.
- Compatible with other access control system.
- Convenient installation and maintenance.

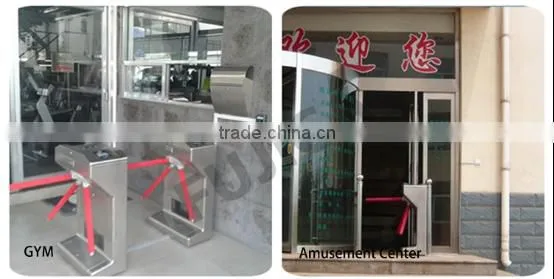

Application Areas
__________________________________________________________________________________
- Government
- Banking
- Education
- Office building
- Gym/Stadium
- Factory
FAQ
___________________________________________________________________________________
1.Can we use our access control system?
Yes, equipped with international interface, can be easily integrated with other recognition devices.
2. If we buy your products, can you train us?
Yes, we can provide training free of charge. You can send your engineers to us, we will train them in our factory.
3. Can you make it bi-directional? Any extra cost?
One direction or bi-direction is available, no extra cost.
4.Can it use for outdoor?
Yes, can be used for outdoor and indoor.
5. What's you warranty?
We provide one year warranty. After that, we can supply chargeable spare parts.
Pakaging&Shipping
___________________________________________________________________________________
- Size:700x400x1120 mm
- Gross Weight: 76KG
- Package: Export packing, plywood box.

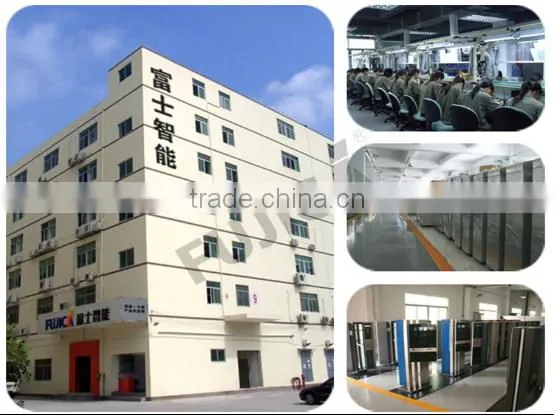

Established in 2004, Fujica is dedicated in developing and producing car parking system, pedestrian gate system
and door access control system, products including barrier gates, turnstiles, flap barriers, swing gates, etc.
Our products are competitive in design, craftsmanship, quality and cost performance. After a decade of efforts in
intelligent system applications, we have broken the traditional rules to achieve revolution in hi-tech intelligentized
system applications by using new concept which turns technology into fashion life. Our company is ISO 9001
approved and products are CE certified. We are exporting to more than 60 countries, and exhibiting in some famous
security shows all over the world, such as Intersec, Secutech, IFSEC.
Certificate
__________________________________________________________________________________________
