RFID access control turnstile with Factory Price Electric Semi Automatic Tripod Turnstile gate
Description

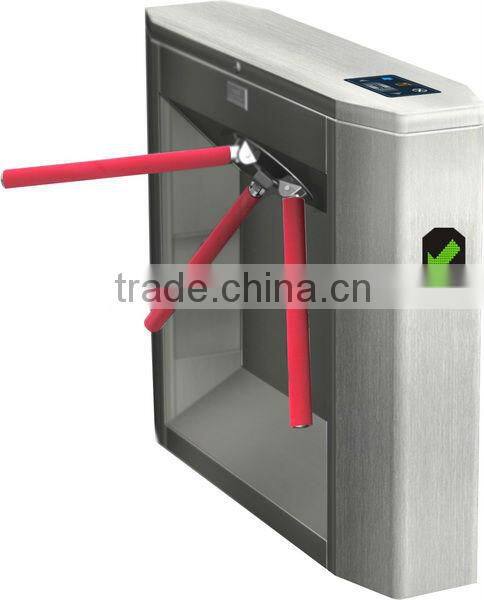

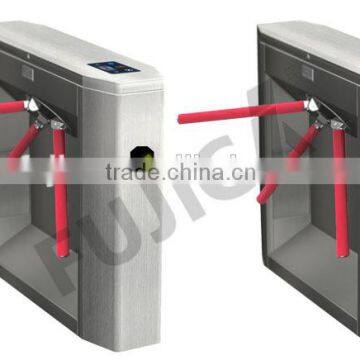

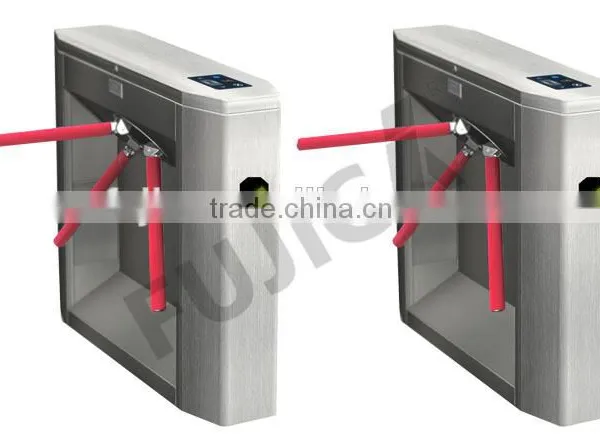

Fujica semi-automatic tripod turnstile consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens half-automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile.

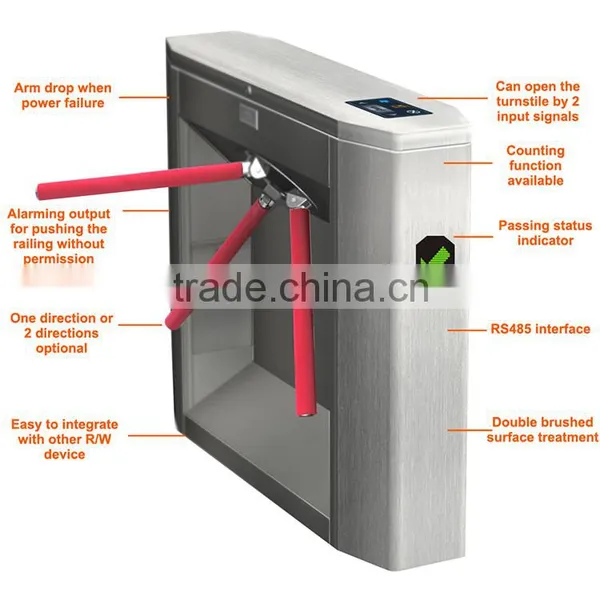

System function
1. Can open the turnstile by two input signals (signals can be input by access controller, button
or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
middle will turn one; after reading card and ready for passing, the upper blue light will turn
on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
Technical parameters
| Security turnstile gate Power consumption | 50W |
| Security turnstile gate Housing Size | 1300*280*950 mm |
| Security turnstile gate Housing material | 1.5--2mm, 304# stainless steel, corrosion resistant |
| Security turnstile gate Channel width | 550--600mm |
| Security turnstile gate Pass speed | 25 persons/min. |
| Security turnstile gate Communication Interface | RS485 |
| Security turnstile gate Input signal optional | DC12V level signal or DC12V pulse signal |
| Security turnstile gate railing-off against power off | Yes |
| Security turnstile gate Working temperature | minus 30°C to 70 °C |
| Security turnstile gate Working environments | indoor,outdoor |
| Security turnstile gate Relative humidity | ≤95% coagulation free |
| Security turnstile gate MCBF | 2,000,000 cycles |

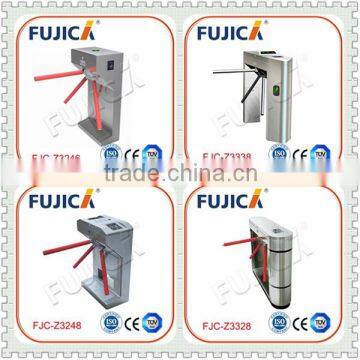

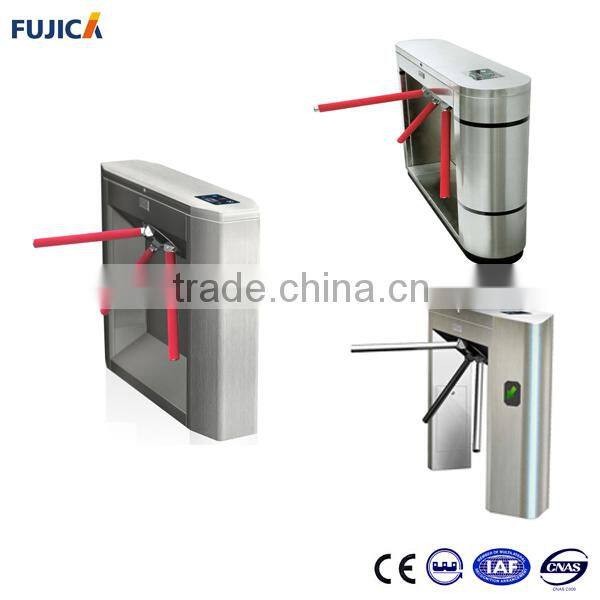

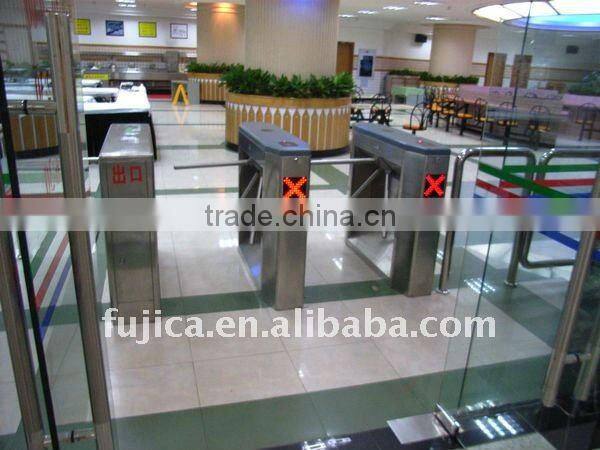

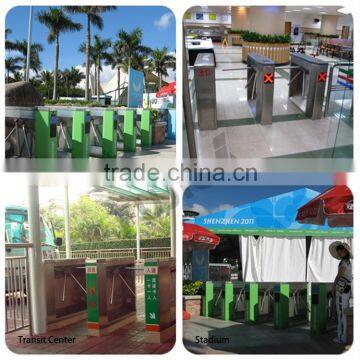

Picture &Aplication
| Model No. | EQ Size(cm) | Wooden case size(cm) | CBM (m³) | NW(kg) | GW(kg) |
| FJC-Z3148 | 120*28*95 | 128*38*110 | 0.54 | 68 | 98 |

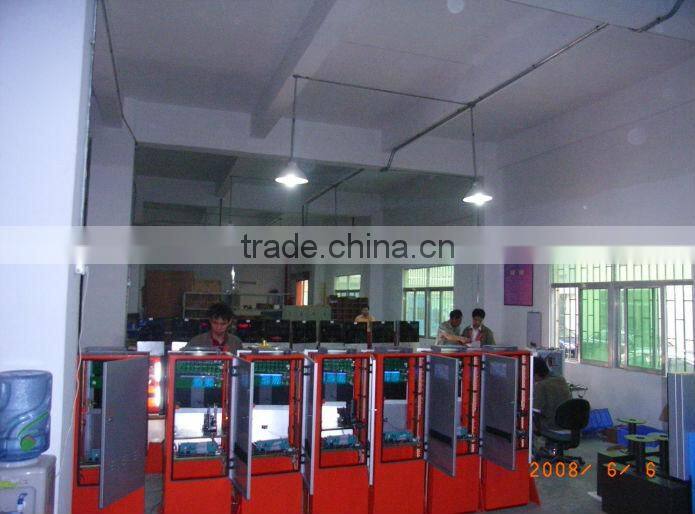

| Production Capacity | ||
| Product Name | Monthly Capacity | Anual Capacity |
| Flap barrier | 600sets / month | 7,000 sets |
| Swing barrier | 600 sets / month | 7,000 sets |
| Turnstile | 600 sets / month | 7,000 sets |
| Parking barrier gate | 800 sets / month | 10,000 sets |
| parking entrance/exit terminal | 800 sets / month | 10,000 sets |
Certification

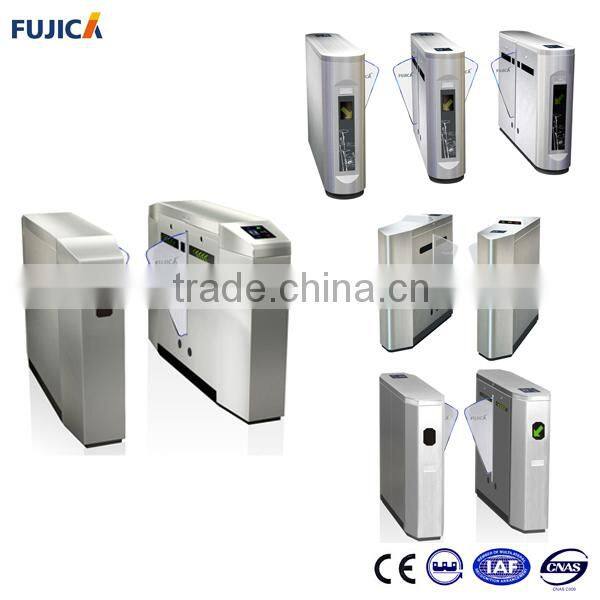

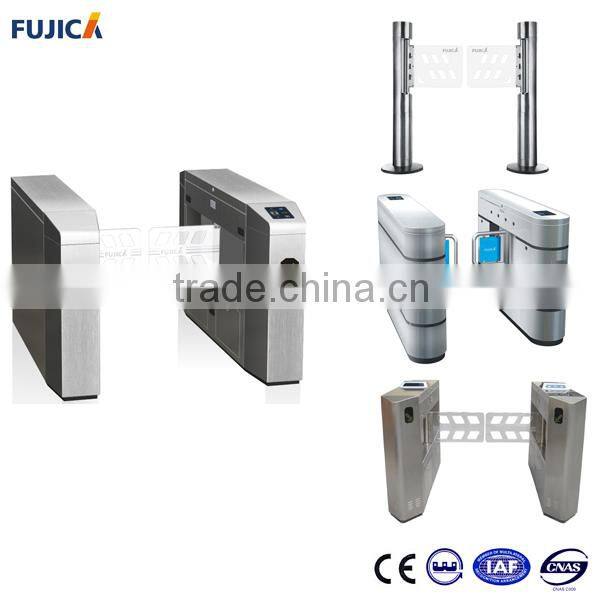

OTHER PRODUCTS & APPLICATION
