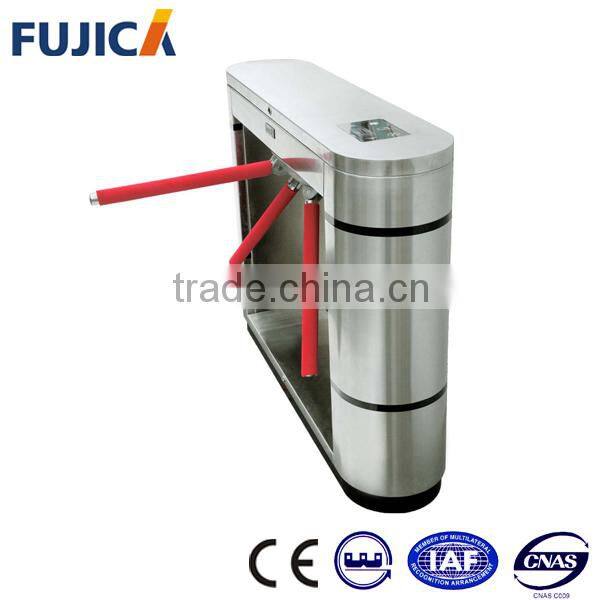

High Quality Waist High Bridge Type Tripod Turnstile
Parameters:
| Power consumption | 50W |
| Housing Size | 1200*280*950 mm |
| Housing material | 1.5--2mm, 304# stainless steel, corrosion resistant |
| Channel width | 550--600mm |
| Pass speed | 25 persons/min. |
| Communication Interface | RS485 |
| Input signal optional | DC12V level signal or DC12V pulse signal |
| railing-off against power off | Yes |
| Working temperature | minus 30°C to 70 °C |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,000,000 cycles |
1. Can open the turnstile by two input signals (signals can be input by access controller, button
or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
middle will turn one; after reading card and ready for passing, the upper blue light will turn
on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
Application:
Model No. |
EQ Size (cm) | Wooden case size(cm) | CBM(m³) | NW(kg) | GW(kg) |
| FJC-Z3328 | 120*28*95 | 132*43*110 | 0.54 | 66 | 101 |
Wooden Case
FUJICA System Co., Ltd. is specializing in developing and producing in main two products for 10 years:
a.car parking system
b. Pedestrian access control system: flap barrier, tripod turnstile, swing barrier and door access management system
And we are partner of Beijing 2008 Olympic Games and Shanghai 2010 World Expo with good reputation for being competitive in design, craftsmanship, quality and cost effective ratio.
| Production Capacity | ||
| Product Name | Monthly Capacity | Anual Capacity |
| Flap barrier | 600sets / month | 7,000 sets |
| Swing barrier | 600 sets / month | 7,000 sets |
| Turnstile | 600 sets / month | 7,000 sets |
| Parking barrier gate | 800 sets / month | 10,000 sets |
