Supermarket/market Half-Height tripod Turnstiles Turnstiles
Description:

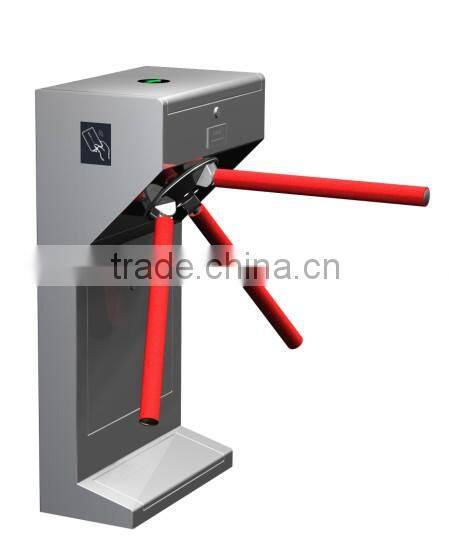

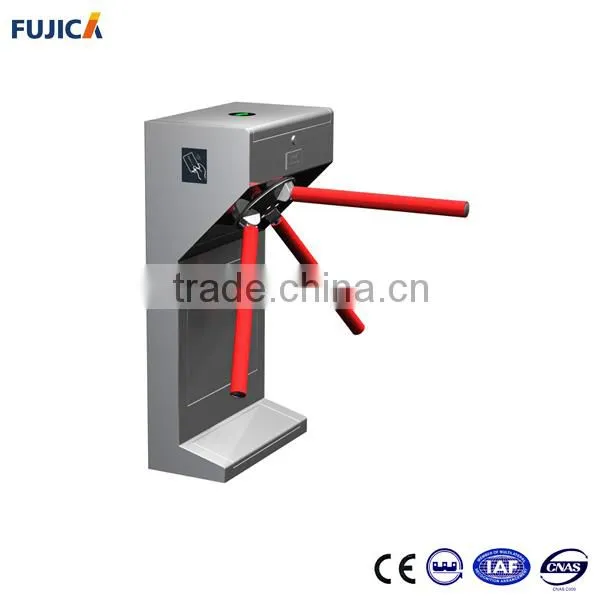

Fujica Supermarket/market Half-Height tripod Turnstiles consists of casing, motor, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile
Specifications:
| Power consumption | 50W |
| Housing Size | 1300*280*950mm |
| Housing material | 1.5--2mm, 304# stainless steel, corosion resistant |
| Drive motor | Yes |
| Channel width | 550--600mm |
| Pass speed | 25 persons/min. |
| IP protection | IP44 |
| Input singal optional | DC12V/dry/contact/RS485/RS232/Remote) |
| railing-off against power off | Yes |
| Working enviroment temperature | minors 30°C to 70 °C |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,000,000 cycle |
Fuctions:
1. Can open the turnstile by two input signals (signals can be input by access controller, button
or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
middle will turn one; after reading card and ready for passing, the upper blue light will turn
on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
