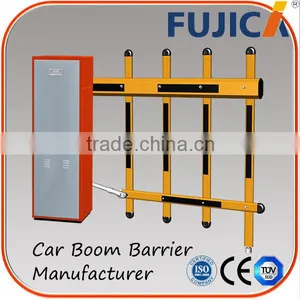

Automatic Traffic Barrier For Toll Road

Traffic Barrier   , Fence Traffic Barrier ,  Vehicle Detector ,  Fence Traffic Barrier Vehicle Detector

Automatic Traffic Barrier For Toll Road

Functions:

- Operate stably and smoothly.
- Manually release in the event of power failure.
- Die-casting variable frequency motor, precision and good at thermal radiating.
- Reversing on obstacle with pressure sensor device on barrier boom (optional).
- Anti-bumping barrier arm.(optional)
- Illuminatad barrier boom (optional)
- Support loop sensor (optional)
- Support the infrared photocell for anti-bumping function (function).
- Support push button and remote control.
- DC 12V level / Dry contact / RS232/485 (optional).
- Easy installation and set up.

Technical Data
Model No.: FJC-D616	Power: 250W
Housing Size: 344*290*1090mm	Housing Color: Orange / Grey / Blue
Rail Type: Straight	Rail Material: Aluminum Alloy
Rail Lifting Time: 6S	Rail Length : ≤ 4.5M
MCBF: ≥5,000,000 times	Motor Speed: 30r/min
Wave Pressure: Optional	Bumping Bounce Back: Optional
Boom Illuminator: Optional	Working Temperature:  -10℃ to 45℃
Working Environments: Indoor, outdoor	Relative Humidity: <90% coagulation free
Driver Unit	Housing
The barrier is driven by motor mounted on a central case aluminum support. This support also contains the bearings for the drive shaft, the gear box and the mounting for the counterbalance springs. Fujica's integrated design of motor and decelerator avoid pulley drives. Low noice and maintenance free, and the unique four-lever design guarantees the barrier boom operate smoothly and stably.	Fujica high-quality and robust housing is manufactured from 2mm galvanized steel, then finished with an high class traffic power coating, no bleaching and no harm to environment. Control units are mounted onto a removable galvanized steel sheet panel. All of the components within the barrier housing are readily accessibly through the maintenance door and removable top cover.
Barrier Boom	Controller
Fujica patented illuminated barrier boom, which can enhance the visibility.	The controller was epecially developed by Fujica with user-friendly design. Using microprocessor technology to ensure a flexible, modern approach to the control techniques, it possesses all appropriate expansion options including I/O and serial communication interface.
Fujica Barrier Gate Applications
Packaging & Shipping
Company Photos & Certificate
Barrier Gate & Parking System Simple Topology
Welcome to contact Fujica!
Sam Skype: fujica.sam

FAQ:

1. Can Fujica barrier gate can be used as both entry and exit?
   Yes.

2. How to control Fujica barrier gate?
   The barrier gate can be opened by wired three-key button (Included), remote control (optional), card reader / sensor ( optional ), computer / mobile phone ( optional ), or by hand.

3. How to control the barrier gate falling and not bump the car?
   Please Install vehicle detector (Loop sensor) and underground coil , or photocell sensors.

4. Does Fujica have barrier gate parking system?

   Yes, Fujica can provide card/ticket and other customized parking management system in English or Chinese language.
