Vehicle Boom Barrier For Parking Lot
Functions:
- Operate stably and smoothly.
- Manually release in the event of power failure.
- Die-casting variable frequency motor, precision and good at thermal radiating.
- Reversing on obstacle with pressure sensor device on barrier boom (optional).
- Anti-bumping barrier arm.(optional)
- Illuminatad barrier boom (optional)
- Support loop sensor (optional)
- Support the infrared photocell for anti-bumping function (function).
- Support push button and remote control.
- DC 12V level / Dry contact / RS232/485 (optional).
- Easy installation and set up.
| Technical Data | |
| Model No.: FJC-D616 | Power: 250W |
| Housing Size: 344*290*1090mm | Housing Color: Orange / Grey / Blue |
| Rail Type: Straight | Rail Material: Aluminum Alloy |
| Rail Lifting Time: 6S | Rail Length : ≤ 4.5M |
| MCBF: ≥5,000,000 times | Motor Speed: 30r/min |
| Wave Pressure: Optional | Bumping Bounce Back: Optional |
| Boom Illuminator: Optional | Working Temperature: -10℃ to 45℃ |
| Working Environments: Indoor, outdoor | Relative Humidity: <90% coagulation free |
|

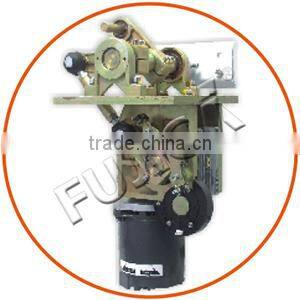

Driver Unit |
Housing |
| The barrier is driven by motor mounted on a central case aluminum support. This support also contains the bearings for the drive shaft, the gear box and the mounting for the counterbalance springs. Fujica's integrated design of motor and decelerator avoid pulley drives. Low noice and maintenance free, and the unique four-lever design guarantees the barrier boom operate smoothly and stably. |
Fujica high-quality and robust housing is manufactured from 2mm galvanized steel, then finished with an high class traffic power coating, no bleaching and no harm to environment. Control units are mounted onto a removable galvanized steel sheet panel. All of the components within the barrier housing are readily accessibly through the maintenance door and removable top cover. |
|
Barrier Boom |

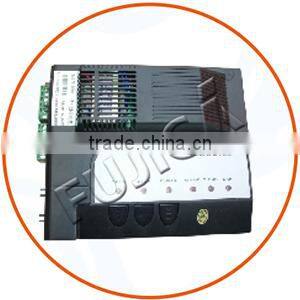

Controller |
| Fujica patented illuminated barrier boom, which can enhance the visibility. | The controller was epecially developed by Fujica with user-friendly design. Using microprocessor technology to ensure a flexible, modern approach to the control techniques, it possesses all appropriate expansion options including I/O and serial communication interface. |
| Fujica Barrier Gate Applications | |
 | |
| |
| Packaging & Shipping | |
|
|
| Company Photos & Certificate | |
|
|
| Barrier Gate & Parking System Simple Topology | |
|
|
| Welcome to contact Fujica! | |
| Sam Skype: fujica.sam | |
FAQ:
1. Can Fujica barrier gate can be used as both entry and exit?
Yes.
2. How to control Fujica barrier gate?
The barrier gate can be opened by wired three-key button (Included), remote control (optional), card reader / sensor ( optional ), computer / mobile phone ( optional ), or by hand.
3. How to control the barrier gate falling and not bump the car?
Please Install vehicle detector (Loop sensor) and underground coil , or photocell sensors.
4. Does Fujica have barrier gate parking system?
Yes, Fujica can provide card/ticket and other customized parking management system in English or Chinese language.
